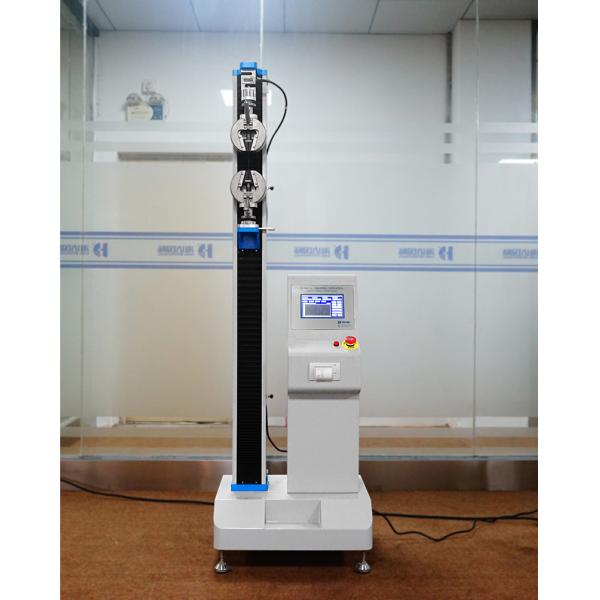

Celtron Load Cell Taiwan Servo Motor Electronic Tensile Tester For Plastic Rubber

HD-B609B-S Universal Test Machine.pdf
Product Description
Electronic Tensile Tester is designed for quick and reliable tensile, compression, bending, shear, peel, loop tack and fatigue cycling on metals, tape, composites, alloys, rigid plastics and films, elastomers, textiles, paper, board and finished products.

The machine is calibrated as ASTM E4, ISO 75001 international standard. By adding different grips it can do the test of ISO 527, ISO 8295, ISO 37, ISO 178, ISO 6892, ASTM D412, ASTM C1161, ASTM D882, ASTM D885ASTM D918, ASTM D1876, ASTM D4632 and all the force and extension JIS, DIN, BSEN testing standards.
Main Technical Parameters

Features
The compact size fits easily on tables.
Lower table height (20% lower) and larger work space
This makes it easier to exchange jigs and samples and to perform a wide variety of operations.
Electronic Tensile Tester uses a high-precision load cell that guarantees accuracy to within ±0.5% of the indicted value over a wide range from 1/500 to 1/1 of the load cell capacity.
Tests can be performed at up to maximum load capacity levels across the entire test speed range from 0.001 to 2000 mm/min (HS model).
Maximum test speed: 2000mm/min, Return speed: 3000mm/min (HS model)
The high return speed significantly reduces the wait time between tests, even for those with long displacements.
Electronic Tensile Tester can measure 1000 data per sec, enabling accurate detection of peak force.
Enhanced usability by the adjustable controller
This allows for adjusting the control panel position and angle to match the posture of the operator.
Visual, user-friendly TRAPEZIUMX software
4 software platforms - Single, Cycle, Control, and Texture - enable various types of evaluation.
Power-saving function reduces power consumption by over 55% compared to previous models.
Optional Note:
How to buy electronic universal testing machine:

First, the different materials testing machine needs:

1. Metallic materials testing machine requirements

2. Plastic material (polymer) of the test machine requires

3. Plastic pipe requirements for testing machines

4. Rubber material testing machine requirements

5. Textile fiber materials required for the testing machine

6. Required spring bearing on the testing machine

7. Film, foil material testing machine of claim

8. Products (or product) of the test machine requires
Second, there are different needs in different sectors of the test machine.
Machine Maintenance
Regularly check the jaw parts of screws, if found loose, tighten timely;
Sliding surface inlay plate and liner contact surface of the dovetail groove on the liner should be kept clean, regularly coated with a thin layer of MoS2 (molybdenum disulfide) grease;
Check the drive sprocket regularly and, if found loose, place the tensioner re-tensioning.

Application of Industry:
Electronic Tensile Tester For Plastic Rubber​ widely used measure quality; rubber and plastics; metallurgical steel; machinery manufacturing; electronic appliances; automobile production; textile and chemical fiber; wire and cable; packaging materials and food; instrumentation; medical equipment; civilian nuclear energy; civil aviation; universities; research laboratory; inspection arbitration, technical supervision departments; building ceramics; petrochemicals; other industries.
