Air Ventilation Ozone Aging Test Chamber environmental Accelerated Aging Chamber
Air Ventilation Ozone Aging Test Chamber environmental Accelerated Aging Chamber
Air Ventilation Ozone Aging Test Chamber environmental Accelerated Aging Chamber
Air Ventilation Ozone Aging Test Chamber environmental Accelerated Aging Chamber
Air Ventilation Ozone Aging Test Chamber environmental Accelerated Aging Chamber
Air Ventilation Ozone Aging Test Chamber environmental Accelerated Aging Chamber
Air Ventilation Ozone Aging Test Chamber environmental Accelerated Aging Chamber
Air Ventilation Ozone Aging Test Chamber environmental Accelerated Aging Chamber
Air Ventilation Ozone Aging Test Chamber environmental Accelerated Aging Chamber
Air Ventilation Ozone Aging Test Chamber environmental Accelerated Aging Chamber
Specifications
Brand Name :
Haida
Model Number :
HD-E801
Certification :
ISO9001: 2008, CE
Place of Origin :
china
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 sets per month
Delivery Time :
20 days after order confirmed
Packaging Details :
Each set protected with resin fiber and PP film, then put into Strong wooden case with operation manual and video inside.
Usage :
aging Chamber
Material :
SUS#304 Stainless steel
Power :
Electronic
Power supply :
AC220V, 50/60Hz, single phase
Temperature range :
RT - 200'C
Resolution :
0.1'C
Rotation :
10-200times / hour
Control method :
PID control
Description
Air Ventilation Ozone Aging Test Chamber Environmental Accelerated Aging Chamber

STANDARD FEATURES

Model HD-E801
Internal dimension (WxDxH) 500*600*500mm
External dimension (WxDxH) 1000*1000*1750mm
Temperature range RT+10~ 60℃ (suggest to use 40℃±2℃)
Temperature Fluctuation ±1℃
Ozone concentration 50~1000 pphm, adjustable
Ozone concentration deviation ±10%
Sample holder SUS#304 stainless steel
Temperature controller Programmable touch screen controller
Ozone concentration analysis Concentration analysis meter
Ozone generator High pressure silence discharge type
Protection system Leakage, short circuit, over temperature, over heat
Test criteria ASTM D1149, ISO 1431, JIS K6259...

CHAMBER STRUCTURE AND FEATURES

1, Internal material adopts high quality mirror stainless steel for ozone resistance.

2, Insulation material: high-density glass fiber

3, Use long axial fan motor and high and low temperature resistant aluminum alloy wing type wind turbines to force vertical air circulation.

4, Chamber door adopts double layer high and low temperature resistant silicone seal ensure the airtight test area.

5, Chamber bottom has high quality caster for convenient move.

6, Observation window uses multilayer hollow tempered glass.

7, Exhaust system: exhaust the high concentration ozone from the test chamber to avoid to poison.

8, Optional: Built-in 360 degree rotation sample holder, including 3 sets static tensile fixture and 3 sets dynamic tensile fixture.

STANDARD CONFIGURATION

1, Power line x 1pc

2, Sample holder x 1set

3, Fuse x 1set

4, Operation manual x 1set

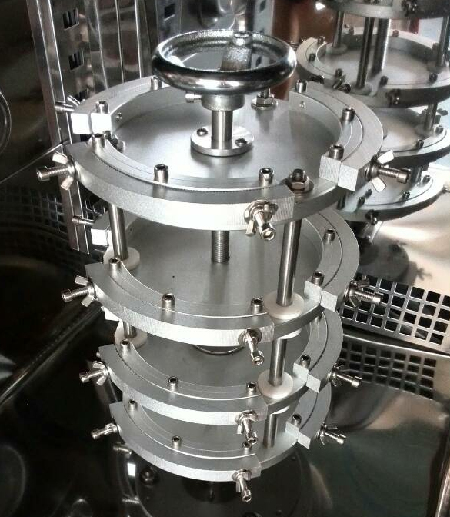

TURNTABLE SAMPLE HOLDER WITH TENSILE FIXTURE

Air Ventilation Ozone Aging Test Chamber environmental Accelerated Aging Chamber

Air Ventilation Ozone Aging Test Chamber environmental Accelerated Aging Chamber

Air Ventilation Ozone Aging Test Chamber environmental Accelerated Aging Chamber
