Specifications
Brand Name :
Haida
Model Number :
HD-E703
Certification :
CE,,ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
75 Piece / Pieces Per Month
Delivery Time :
15 Days After Order
Packaging Details :
Strong Wooden Case
Pre-cool lower limit :
-65°C
Temp. pull down time*3 :
Ambient temp. to -65°C within 70min
Temp. recovery time :
Within 10 min.
External material :
Cold-rolled rust-proofed steel plate
Test area material :
SUS304 stainless steel
Cooler :
Stainless steel welded plate heat exchanger
Air circulator :
Sirocco fan
Damper driving unit :
Air cylinder
Description

Rubber Products Thermal Shock Chamber GJB150.5-86 Compressor slide off Chamber

Thermal Shock Chamber.pdf

Specifications

Thermal Shock Test Chamber
1. Manufacturer
2. Material:SUS#304 stainless steel
3. Reasonable price
4. 2 year after sales servic

Usage:

Rubber Products Thermal Shock Chamber GJB150.5-86 Compressor slide off Chamber is For testing material structure or composite material, in an instant by the extremely mild to extremely low temperatures continuous environment can bear, in order in the shortest time to test its chemical changes or physical damage due to thermal expansion and contraction caused by the application of objects,

Features:
Friendly interface, easy operation setting, mature control technology, reliable operation, heating and cooling time-interleaved control, energy saving effect is very significant, colorful programmed for a variety of standard tests, comprehensive and reliable safety device for long-term continuous operation, three-box design, the test without moving.

Specifications

Inner size WxHxD(cm) 40×35×30 50×40×40 60×50×50 70×60×60 80×75×75
External size WxHxD(cm) 140x180x145 148X190X155 160x200X175 175x210X187 190x220x200
Temp range

(150°C~A:-45°C;B:-55°C;C:-65°C);( High temperature zone :

+60°C~+150C; Low temperature zone :-10°C~-65°C;)
Heating up time RT~200°C about 35min
Cooling down time RT~-70°C about 85min

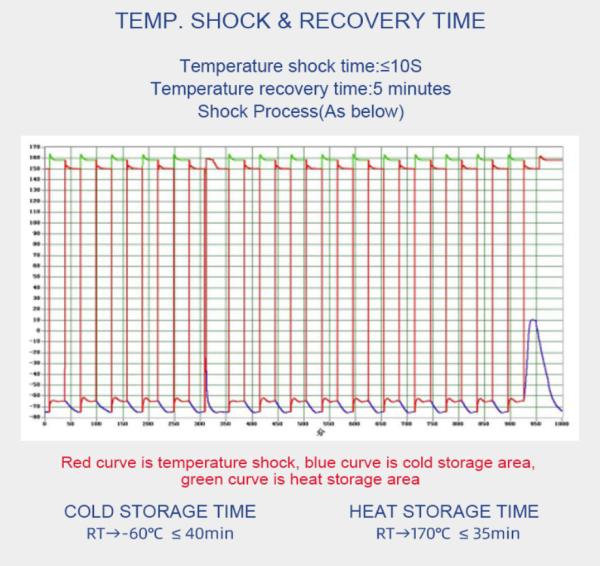

Temp recover time/change time ≤5min / ≤10sec

Temp control accuracy/

distribution accuracy

 ±0.5°C / ±2.0°C
Inner materials

SUS 304# stainless steel plate for inner chamber,and stainless steel plate

+ spray painting for external chamber.
Insulation materials

High-temperature high-density amino acid ethyl ester foam insulator material.
Systems

P.I.D+S.S.R+Microcomputer balanced temperature control system.
Cooling systems

Semi-hermetic two-stage compressor (water-cooled) /

hermetic two-stage compressor (air-cooled).
Safety devices

Fuse switch, high and low pressure protection switch compressors,

refrigerant pressure protection switch failure warning system, electronic siren.
Fitting

Outlook window (special purchase), the upper and lower adjustable compartment two energized measured line hole, casters,

level bracket.
Power AC380V 50HZ/60HZ
Controller South Korea’s“TEMI” Japan's “UMC” Brand Optional
Compressor France’s"Tecumseh" Brand
Rubber Products Thermal Shock Chamber GJB150.5-86 Compressor Slide off Chamber
