Automatic Digital Bursting Strength Tester Paper Packaging Testing Machine
Automatic Digital Bursting Strength Tester Paper Packaging Testing Machine
Automatic Digital Bursting Strength Tester Paper Packaging Testing Machine
Automatic Digital Bursting Strength Tester Paper Packaging Testing Machine
Automatic Digital Bursting Strength Tester Paper Packaging Testing Machine
Automatic Digital Bursting Strength Tester Paper Packaging Testing Machine
Automatic Digital Bursting Strength Tester Paper Packaging Testing Machine
Automatic Digital Bursting Strength Tester Paper Packaging Testing Machine
Specifications
Brand Name :
haida
Model Number :
HD-A504-B
Certification :
ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
product name :
Bursting Strength Tester
Accuracy :
± 0.5%
Oil :
100% silicon oil
Sensing method :
Pressure Transmitter
Dimension (L×W×H) :
445×425×525 mm
Weight :
Approx. 70 kg
Description

Automatic Digital Bursting Strength Tester Paper Packaging Testing Machine

Haida Burst Strength Tester.pdf

Introduction:
Automatic Digital Bursting Strength Tester is applied to test anti-rupture strength for raw paper, corrugated cardboard, leather, cloth and synthetic leather. This tester is fully automatic-type rupture strength tester, Just put into the testing material, the tester automatically detect, automatic testing, automatic hydraulic recoil and automatic computing, storage testing data and printing. It is an important tester for controlling quality of finished product and quality inspection.
Industry Application:
Bursting Strength Tester applied to test the anti-breaking strength of boxes for packaging, which of electronics, electrical appliances, wires, hardware, bicycles, handbags, food, footwear, clothing, furniture.etc.

The Parameters:

Capacity (Optional)High Pressure 0~100 Kg/ cm^2 (0.1kg/cm^2)
UnitKpa, psi, kg/cm^2
Accuracy± 0.5%
Pressure Range250~5600kpa
Speed of CompressionHigh Pressure 170± 10ml/min
Specimen Clamping Force>690kpa
Oil100% silicon oil
Sensing methodPressure Transmitter
Indicating MethodDigital
DisplayLCD
Material of the RingStainless Steel SUS304
Opening in Upper Clamp31.5 ± 0.05 mm Diameter
Opening in Lower Clamp31.5 ± 0.05 mm Diameter
Motor

Anti-vibration Motor 1/8 HP

Operation Method

Automatic

Dimension (L×W×H)

445×425×525 mm

Weight

Approx. 70 kg

PowerApprox. 70 kg
Optional ConfigurationPrinter, Air Pump


Features:
1. Micro-computer control, use hydraulic oil as the driving force to break the specimen.
2. When the specimen is broken, it stores the maximum and reset automatically.
3. LCD displays, the unit of kgf/cm2, psi and kPa in option.
4. It adopts signal transmitting press
5. ISO 2759 and ISO 2758.
6. running joint is made of brass so that prolong its life-span.
7. Dimethyl Silicone Oil: Viscosity(mm2/s): 100+/-8, Density(25g/cm3): 0.960-0.970
Refractive index: 1.400-1.410
8. Show real-time curve

Advantages:
Bursting Strength Tester can print the max. min. and average value, burst index, coefficient of variation, the amount of test groups.

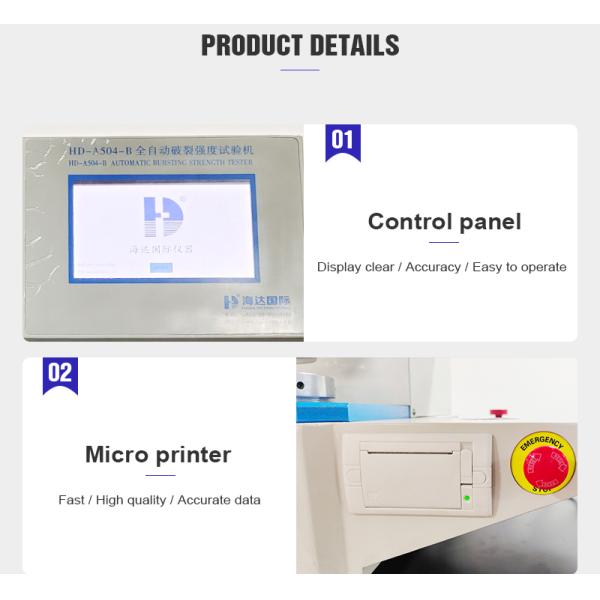

Bursting Strength Tester Image
Automatic Digital Bursting Strength Tester Paper Packaging Testing Machine
Automatic Digital Bursting Strength Tester Paper Packaging Testing Machine
Automatic Digital Bursting Strength Tester Paper Packaging Testing Machine
