Three Phase IP Testing Equipment Sand And Dust Test Chamber With Stainless Steel

Dust Test Chamber - IP5X&6X.pdf

Product Description:

The Microcomputer Controlled LED Light Sand and Dust Testing Instrument is mainly used for testing control cabinet, household appliances, low voltage electric appliance, automobile, lamps and lanterns, motorcycle parts,ect outer shells. Test chamber pressure can be constant and changed, suitable for indoor low concentration dust pollution test, assessment sample in this environment of sealing and corrosion degree.

Main Technical Parameters:

Features :

1. Formed using CNC machining box, nice shape, and no reaction by the handle, easy to operate.

2. Imported high grade stainless steel inner tank (SUS304) mirror panels, use of A3 steel box outside the gall spray, increasing the appearance of the texture and cleanliness.

3. Equipment containing dust vertical circulation of air, dust can be reused for testing; device itself has a good sealing performance, test, laboratory test can clearly observe the situation; device equipped with a vacuum system to meet the needs test; equipment dust the bottom of the device can be replaced.

4. Large observation window with bright lights to keep the box, and use of tempered glass embedded heating element, at any time a clear observation box condition.

5. Test with 50mm diameter holes for the external test power line or signal line.

Chamber Structure:

1, Chamber material: SUS#304 stainless steel;

2, Transparent window is convenient to observe specimen during testing;

3, Blow fan adopts stainless steel shell, high sealing and wing speed, low noise;

4, Inside the shell is the funnel type, vibration cycle can be adjusted, dust free float in the sky falling to blowing the hole together.

Specification:

• Temperature Range: environmental temperature + 5~50°C (Adjustable)
• Humidity Range: 45%~75% (Adjustable)
• Metal net standard nominal line diameter: 50μm
• Environmental air pressure: 85Kpa~106Kpa
• Airflow velocity in the chamber: 1.5m/s (adjustable range 0~4.99m/s)
• Test dust: dry talcum powder, portland cement, smoke ash and etc.

• Line spacing between the standard: 32μm, 75μm and 250μm (There are three Metal nets)
• Selecting dust concentration control instrument: get sample through the optical principle, show the dust concentration and automatic control powder quantity that entering into the Cabinet according to the concentration of the set: (needed cleaning compressed air source configuration, require the pressure: 1-3 KGF/cm3)

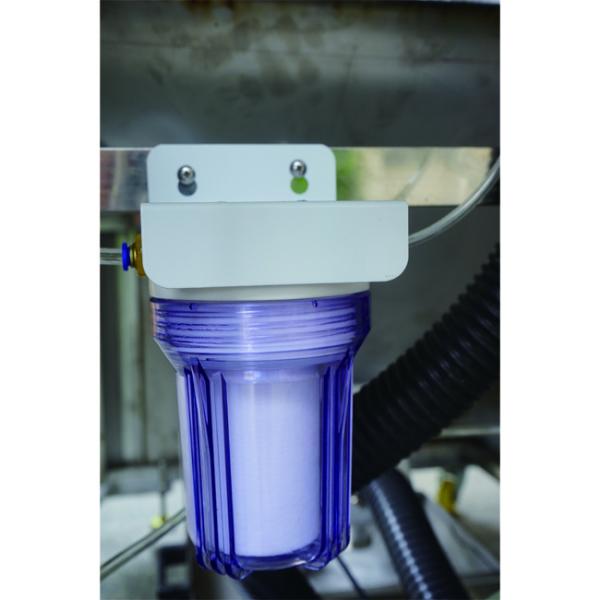

View:
