Plastic Pipe Thickness Tester
Plastic Pipe Thickness Tester
Specifications
Brand Name :
Haida
Model Number :
HD-R903
Certification :
CE,,ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Test range :
Full range: 0.55-500mm
Standard mode: :
0.75-500mm (Standard probe: 5P, φ10)
Ultra-thin mode :
0.55-1mm
Display accuracy :
0.01mm
Measurement error :
±（0.5%H+0.05）mm（H is the thickness of the object being measured）
Material sound velocity :
1000-9999m/s
LCD screen :
2.3-inch large color screen display
Calibration function :
Instrument calibration and sound velocity calibration
Data storage function :
Each group can store 200 data, a total of 10 groups can store 2000 data
Power level display :
Yes
Shutdown method :
Manual/automatic (automatic shutdown after 5 minutes of no operation)
Host dimensions :
130mm*70mm*26mm
Power supply :
Three (7) alkaline batteries
Operating temperature :
0℃-50℃
Operating humidity :
20%RH—90%RH
Weight :
125g (excluding probe and battery)
Description

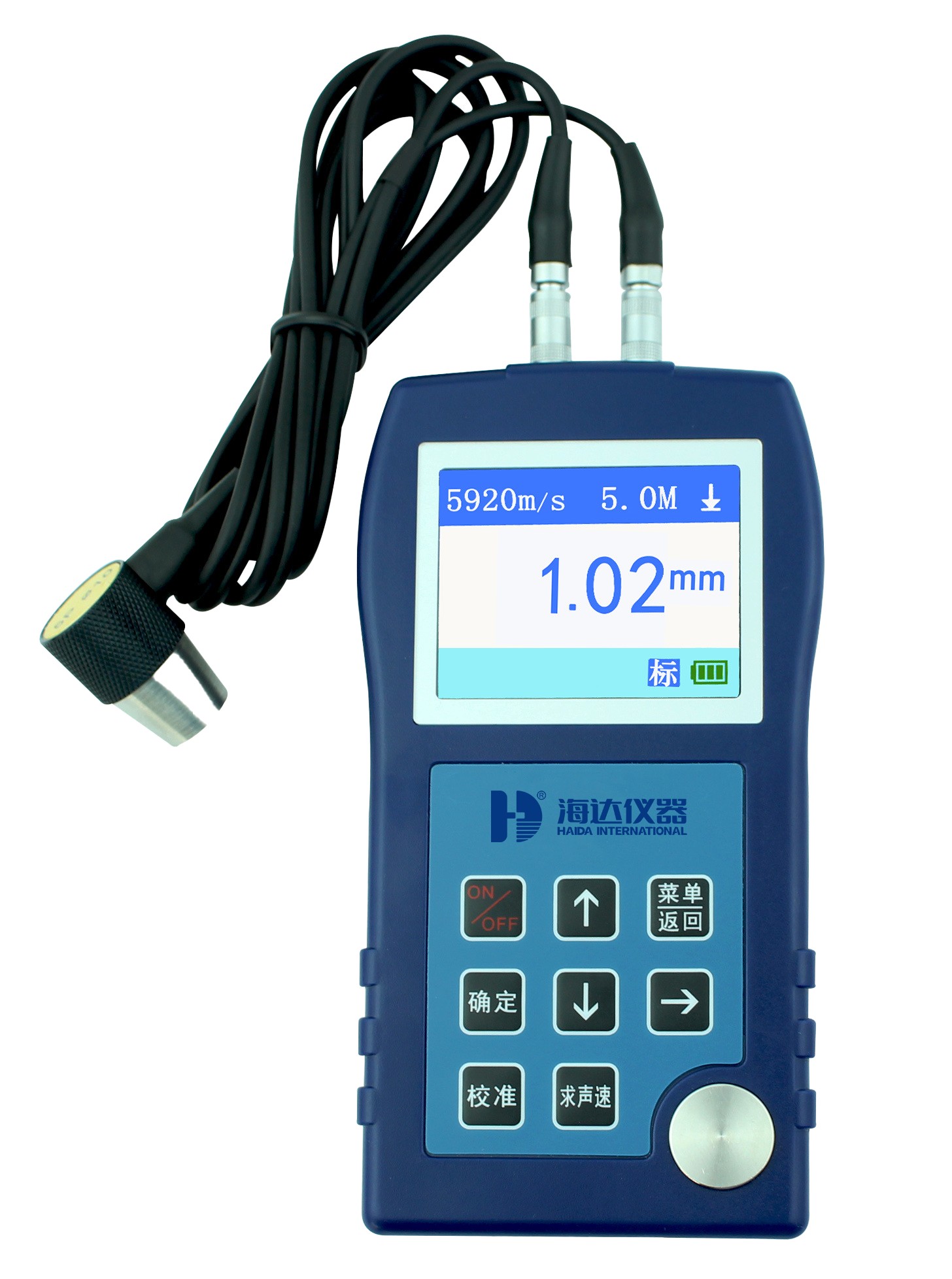

Plastic Pipe Thickness Tester

Description:

HD-R903 Plastic Pipe Thickness Tester is suitable for high-precision thickness measurement of various materials, and can be applied to the thickness measurement of objects made of plastics, various metals (steel, stainless steel, aluminum, copper, etc.), quartz, glass, etc.

Plastic Pipe Thickness Tester

Testing Principle:

Place the probe on the contact surface on one side of the object to be measured, and the thickness of the object to be measured can be measured quickly and accurately.

Technical Parameters

Model HD-R903
Test range Full range: 0.55-500mm
Ultra-thin mode: 0.55-1mm
Standard mode: 0.75-500mm (Standard probe: 5P, φ10)
Display accuracy 0.01mm
Measurement error ±(0.5%H+0.05)mm
H is the thickness of the object being measured
Material sound velocity 1000-9999m/s
LCD screen 2.3-inch large color screen display
Calibration function Instrument calibration and sound velocity calibration
Data storage function Each group can store 200 data, a total of 10 groups can store 2000 data
Power level display Yes
Shutdown method Manual/automatic (automatic shutdown after 5 minutes of no operation)
Host dimensions 130mm*70mm*26mm
Power supply Three (7) alkaline batteries
Operating temperature 0℃-50℃
Operating humidity 20%RH—90%RH
Weight 125g (excluding probe and battery)

About us
Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.
Plastic Pipe Thickness TesterPlastic Pipe Thickness TesterPlastic Pipe Thickness Tester

Why choose us?

1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined

FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
