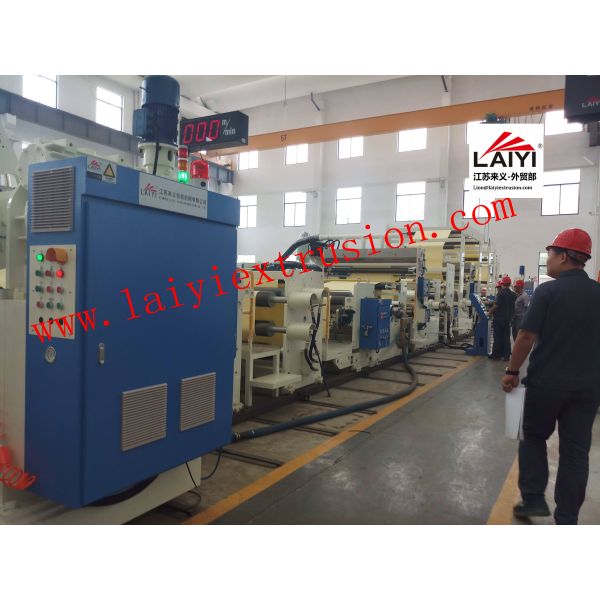

3-6 Inch Paper Core Large Laminating Machine , High Load Extrusion Coating Lamination Machine
3-6 Inch Paper Core Large Laminating Machine , High Load Extrusion Coating Lamination Machine
3-6 Inch Paper Core Large Laminating Machine , High Load Extrusion Coating Lamination Machine
3-6 Inch Paper Core Large Laminating Machine , High Load Extrusion Coating Lamination Machine
3-6 Inch Paper Core Large Laminating Machine , High Load Extrusion Coating Lamination Machine
3-6 Inch Paper Core Large Laminating Machine , High Load Extrusion Coating Lamination Machine
Specifications
Brand Name :
Laiyi
Model Number :
ADRP/ASRP
Place of Origin :
China
MOQ :
1 set
Price :
$70,000-380,000
Payment Terms :
L/C , T/T
Supply Ability :
Max 20sets per month
Delivery Time :
90-150 days
Packaging Details :
Sea worthy packaging
Certification :
CE
type :
Paper lamianting machine
condition :
new
automatic gra :
automatic
driven type :
mechanical
voltage :
380V
lifetime :
more than 10 year
Description

Changzhou Laiyi Plastics Machinery Co., Ltd. was estalished in 2007 and changed to Jiangsu Laiyi Packing Machinery Co., Ltd in 2015. The new factory with enlarged scale and advanced technology in the new district has improved its brand influence and become the industry leader in the forefront of China with a large number of market share in Chinese extrusion laminating machine industry. Especially in PVDF solar energy backplane film industry, Laiyi has been in the lead in China.

一,Release Paper Extrusion Laminating Machine

  • Release paper is widely used to release papers and photo papers, etc.
  • Can be single side and double side laminating.
  • We also make customized machine.
  • The line can be nomal or high-speed line.
  • This is a double station tumble initiative automatic unwinding and rewinding line.

二,Specification of the Line:

Item LY-ASRP-1200 LY-ASPR-1400 LY-ASRP-1700
LY-ADRP-1200 LY-ADRP-1400 LY-ADCP-1R00
Effective laminating width:
  • max1100mm
  • max1300mm
  • max1600mm
Machinery speed: 300-350m/min 300-350m/min 300-350m/min
Screw diameter: φ90mm φ100mm φ115mm
Max unwinder diameter: φ1200mm φ1200mm φ1200mm
Max rewinder diameter: φ1200mm φ1200mm φ1200mm
Max output: 300kg/h,400kg/h or 550kg/h
Resins: LLDPE/LDPE/PP/EVA
Laminating thickness range: 8-45μm
Base material: Paper(35-200gsm)
Water supplier temperature: 15°-25°
Power supply: 380V-50Hz (3-phase 5-wire)

PLC :

  • we operate and set the configuration of the whole line on PLC.
  • All the machine warning and wrong states will be show on the PLC.

The extrusion equipment:

  • Extrusion machine is a key component of extrusion laminating equipment and consists of screw, barrel and transition mechanism. It has the function of delivering, fusing, measuring, mulling of solid materials and delivering of the melt.
  • The advance and retreat of the bogie can be controlled manually and automatically.
  • The manual function is designed for fine tuning or sudden power lost. It also consists of a speed reducer with a hard tooth surface of high strength and low noise.

3-6 Inch Paper Core Large Laminating Machine , High Load Extrusion Coating Lamination Machine

3-6 Inch Paper Core Large Laminating Machine , High Load Extrusion Coating Lamination Machine

3-6 Inch Paper Core Large Laminating Machine , High Load Extrusion Coating Lamination Machine

" Professional qualifications to create brand" is Laiyi's business objective!

"Create excellece by quality, prvide service with honesty" is

Laiyi's business prupose!
