Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine
Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine
Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine
Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine
Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine
Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine
Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine
Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine
Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine
Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine
Specifications
Place of Origin :
ANHUI, CHINA
Brand Name :
LANGHUI
Model Number :
BD1410A
Packaging Type :
Bag | Pouch | sachet | various shape bag | pre-shaped bag
Packaging Material :
PE or Nylon, BOPP laminated LDPE
Driven Type :
Pneumatic
Screen Display :
English | Español | Français |عربي|
PLC :
MITSUBISHI | SIEMENS | DELTA
Packing Items :
Pure Water | Mineral Water | Soda Water | Coconut Water
Price :
Negotiable
Packaging Details :
Wooden case
Delivery Time :
20 days from the date we received your samples and deposit.
Payment Terms :
T/T with 30% deposit and 70% balanced before shipment.
Supply Ability :
60 Per Month
Processing Types :
Water
Processing :
Filling Machine
MOQ :
1
Description

BD1410A 360° ALL VIEW

Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine

Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine

  1. The stick pouch is a popular international plastic bag. It is also called Expansion Bags | Plastic Bag | Stand Up Pouch | Pre-Shaped Bag | Spout Pouch | Formed Bag | Bottle Shape Pouch | Fruit Shape Pouch | Fruit Shape Bag | Various Shape bag | Sachet | Doypack. It is a novel form of packaging, diverse modeling, reliable measurement, seal firm, easy to use, and low cost packaging materials, etc.
  2. It is widely used in dairy products such as Pure Water | Mineral Water | Soda Water | Coconut Water | Carbonated Beverage, etc.

Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine

Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine

Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine

Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine
Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine

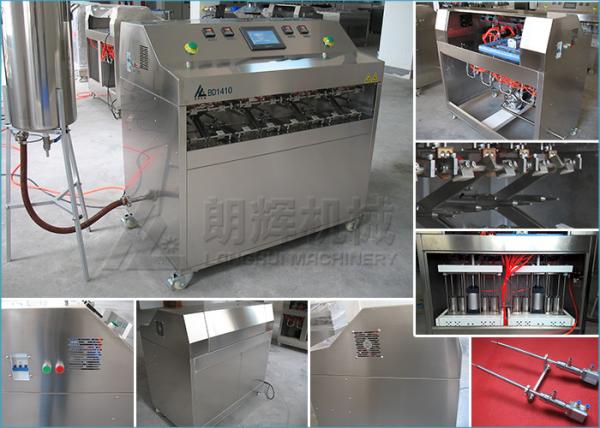

  1. It adopts 304 stainless steel, and PLC system control.
  2. Chinese and English man-machine visualization operation interface. It is automatic entire process by PLC control system, such as filling, sealing, dropping bags, etc.
  3. It adopts airless pressurized filling. It can effectively avoid secondary pollution. The filling volume is adjustable.
  4. Unique sealing part design, seal suitable location and firm.It add Teflon material in the sealed parts when you want to seal PE or Nylon pouch.
  5. Comprehensive safety design, with earth-leakage protection.
  6. Each features a modular, easy maintenance.
  7. Unique filling nozzles and anti-drip valve design, no leaking filling and save cost.

Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine

  1. SUS304 stainless steel
  2. WEINVIEW touch screen, MITSUBISHI PLC system, Other CHINT electrical equipment.
  3. AIRTAC pneumatic components
  4. Food - grade silicone tube
  5. Sanitary centrifugal pump

Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine

Model BD1410 BD1410A BD1410B
Packing rate 2000-3500 bags/hr 2000-3500 bags/hr 2000-3500 bags/hr
Filling nozzles 8 8 8
Workstation 2 2 2
Bag material

PE or Nylon, BOPP laminated LDPE,

various shapes pre-shaped bags
Film thickness ＞0.18mm ＞0.18mm ＞0.18mm
Filling volume ≤500ml (Custom) ≤500ml (Custom) ≤500ml (Custom)
Filling accuracy ≤±2% ≤±2% ≤±1%
Power input 220V / 110V 50Hz 220V / 110V 50Hz 220V / 110V 50Hz
Power 0.8-1.6 Kw 0.8-1.6 Kw 0.8-1.6 Kw
Air Pressure 0.6-0.8 Mpa 0.6-0.8 Mpa 0.6-0.8 Mpa
Air Consumption 0.25-0.50 m3/min 0.25-0.50 m3/min 0.50-0.75m3/min
Net weight ≈80 kg ≈80 kg ≈120 kg
Overall dimension 1100×700×1050mm3(LWH) 1100×700×1050mm3(LWH) 1100×700×1050mm3(LWH)
Gross weight ≈120 kg ≈120 kg ≈240 kg
Packaging dimension 1300×850×1250mm3(LWH) 1300×850×1250mm3(LWH) 1300×850×1250mm3(LWH)


Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine

Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine

Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine

Bottle Shape bag Soda Water | Coconut Water Filling Machine | Sealing Machine
