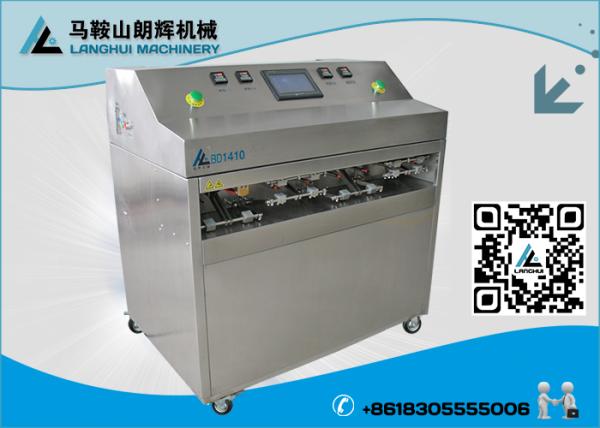

BD1410A Filling and Sealing Machine Liquid for Stand-up Pouch
BD1410A Filling and Sealing Machine Liquid for Stand-up Pouch
BD1410A Filling and Sealing Machine Liquid for Stand-up Pouch
BD1410A Filling and Sealing Machine Liquid for Stand-up Pouch
BD1410A Filling and Sealing Machine Liquid for Stand-up Pouch
BD1410A Filling and Sealing Machine Liquid for Stand-up Pouch
BD1410A Filling and Sealing Machine Liquid for Stand-up Pouch
BD1410A Filling and Sealing Machine Liquid for Stand-up Pouch
BD1410A Filling and Sealing Machine Liquid for Stand-up Pouch
BD1410A Filling and Sealing Machine Liquid for Stand-up Pouch
Specifications
Place of Origin :
ANHUI, CHINA
Brand Name :
LANGHUI
Model Number :
BD1410A
Packaging Type :
Bag | Pouch | Stand-up Pouch | various shape bag | pre-shaped bag
Packaging Material :
PE or Nylon, BOPP laminated LDPE
Driven Type :
Pneumatic
Screen Display :
English | Español | Français |عربي|
PLC :
MITSUBISHI | SIEMENS | DELTA
Packing Items :
Milk | Vegetable Protein Drinks | Water | Liquid
Price :
USD 4,350.00-5,000.00
Packaging Details :
Wooden case
Delivery Time :
20 days from the date we received your samples and deposit.
Payment Terms :
T/T with 30% deposit and 70% balanced before shipment.
Supply Ability :
50 Per Month
Processing Types :
Juice
Processing :
Filling Machine
MOQ :
1
Description

BD1410A Filling and Sealing Machine Liquid for Stand-up Pouch

BD1410A Filling and Sealing Machine Liquid for Stand-up Pouch

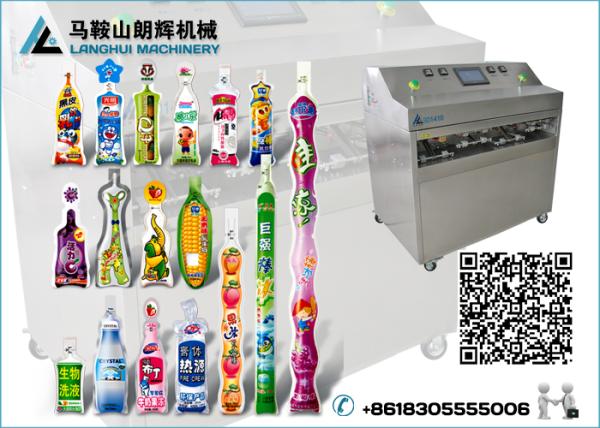

  1. The stick pouch is a popular international plastic bag. It is also called pre-shaped bags, expansion bags. It is a novel form of packaging, diverse modeling, reliable measurement, seal firm, easy to use, and low cost packaging materials, etc.
  2. It is widely used in dairy products such as Dairy Food | Lactic Acid Drinks | Milk | Yogurt | Vegetable Protein Drinks | Pure Water | Mineral Water | Soda Water | Coconut Water | Carbonated Beverage | Natural Fruit Juice | Beverage | Liquid | Drinks |Soft Drink |Egg Tofu | Japanese Tofu | Tomato Sauce | Salad Dressing | Mayonnaise | Fruit Jam | Candy | Jelly | Ice Pop | Honey | Cosmetic | Laundry Liquid | Shampoo | Daily Chemicals | Detergents |Fire/Alcohol Cream | Soy Sauce | Cooking Oil | Viscous liquid, etc.

BD1410A Filling and Sealing Machine Liquid for Stand-up Pouch

  1. It adopts 304 stainless steel, and PLC system control.
  2. Chinese and English man-machine visualization operation interface. It is automatic entire process by PLC control system, such as filling, sealing, dropping bags, etc.
  3. It adopts airless pressurized filling. It can effectively avoid secondary pollution. The filling volume is adjustable.
  4. Unique sealing part design, seal suitable location and firm.It add Teflon material in the sealed parts when you want to seal PE or Nylon pouch.
  5. Comprehensive safety design, with earth-leakage protection.
  6. Each features a modular, easy maintenance.

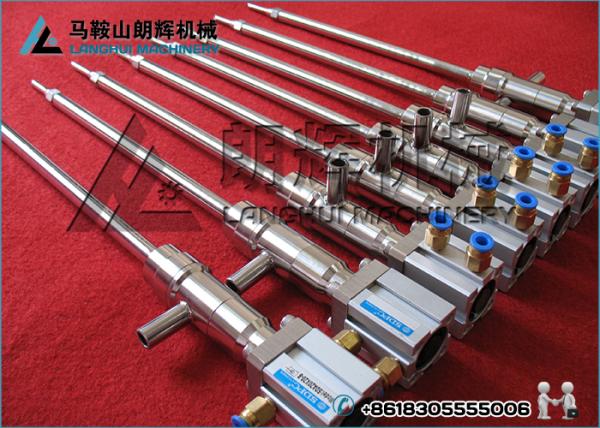

  7. Unique filling nozzles and anti-drip valve design, no leaking filling and save cost

BD1410A Filling and Sealing Machine Liquid for Stand-up Pouch

  1. SUS304 stainless steel
  2. WEINVIEW touch screen, MITSUBISHI PLC system, Other CHINT electrical equipment.
  3. AIRTAC pneumatic components
  4. Food - grade silicone tube
  5. Sanitary centrifugal pump

BD1410A Filling and Sealing Machine Liquid for Stand-up Pouch

Model BD1410B
Packing rate 2000-3500 bags/hr
Filling nozzles 8
Workstation 2
Bag material

PE or Nylon, BOPP laminated LDPE,

various shapes pre-shaped bags
Film thickness ＞0.18mm
Filling volume ≤500ml (Custom)
Filling accuracy ≤±2%
Power input 220V / 110V 50Hz
Power 0.8-1.6 Kw
Air Pressure 0.6-0.8 Mpa
Air Consumption 0.25-0.50m3/min
Net weight ≈80 kg
Overall dimension 1100×700×1050mm3(LWH)
Gross weight ≈120 kg
Packaging dimension 1300×850×1250mm3(LWH)


BD1410A Filling and Sealing Machine Liquid for Stand-up Pouch

BD1410A Filling and Sealing Machine Liquid for Stand-up Pouch
BD1410A Filling and Sealing Machine Liquid for Stand-up Pouch
BD1410A Filling and Sealing Machine Liquid for Stand-up Pouch
