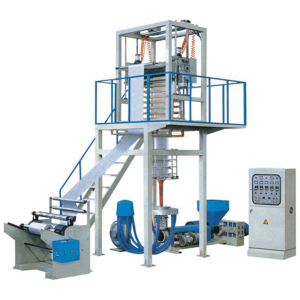

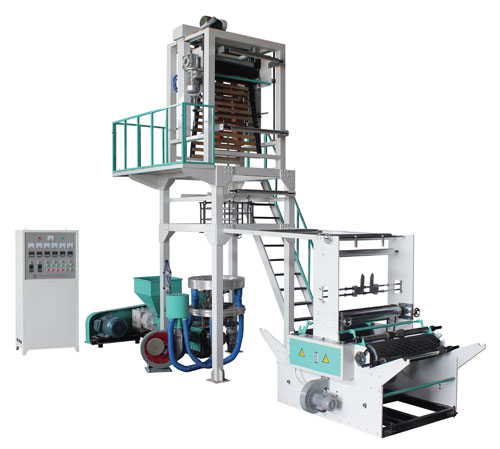

High Speed Blown Film Extrusion Machine Blowing High - Low Pressure Polyethylene
Specifications:
Main Technical Variables:
Model | LO-C75 | LO-C90 | LO-C105 | LO-C120 |
Screw Diameter | 75mm | 90mm | 105mm | 120mm |
Screw Ratio(L/D) | 28:1 | 28:1 | 28:1 | 28:1 |
Screw Speed | 10-100r/min | 10-100r/min | 10-100r/min | 10-100r/min |
Power of Main Motor | 37Kw | 45Kw | 55-70Kw | 75-95Kw |
Main Output | 120kg/h | 160kg/h | 190kg/h | 220kg/h |
Max. Folding Width of Film | 1500mm | 2000mm | 2200mm | 2500mm |
Single-sided Thickness of Film | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm | 0.01-0.10mm |
Total Power | 46Kw | 60Kw | 78Kw | 95Kw |
Weight of Machine | 4T | 8T | 10T | 12T |
Overall Dimensions | 5200×2800×6000mm | 6200×3400×8000mm | 6200×4000×9000mm | 6800 |
Description:
It is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film, packing film, agricultural covering film,bag or film for textile and clothing and other packing material. The main motor adopts frequency control of motor speed to improve the speed regulating stability of main motor and save electricity by 30%. The screw and material barrel adopt 38 chrome- molybdenum aluminum which has been nitrogen treated and the traction frame adopts lifting type. No matter what size the film is, big or small, it can achieve the best effect of cooling.
Applications:
The machine is used for blowing high-low pressure polyethylene, which has been widely used for producing laminating film,packing film, agricultural covering film,bag or film for textile and clothing and other packing material.
Competitive Advantage:
- High Speed
- Low price
- Stable quality
- labor cost saved
- maintainers easily
Why choose us?
1. We are the famous science and technology professional enterprise specialized in researching, developing, manufacturing and selling of Bag Making Machines, Paper Bag Making Machine, Film Blowing Machine, Side Weld Bag Making Machine, Paper Slitting Machine, Non Woven Bag Making Machine, Side Sealing Bag Making Machine, Flexographic Printing Machine, Gravure Printing Machine, Paper Cup Making Machine, Tissue Paper Making Machine, Automatic Bag Making Machine, Carry Bag Making Machine, with best quality control, best service .
2. 100% QC inspection and debugging Before Shipment.
3. 100% rest assured after-sales service.
Our service
Pre-Sales Service:
According to your need of actual situation and budget, our professional sales team will provide professional consultation and best solution with strong technical support.(such as raw paper purchasing suggestion, jumbo roll dimension needed, packing ways for transportation, suitable machine and processing craft recommendation with detailed explanation especially in embossing and lamination, etc.)
After-Sales Service:
1. We also provide the door to door abroad installation, equipment debugging, technical training service;
2. Warranty:1 year quality assurance
3. Building customer files, solving various technical problems for user;
4. Our technical team give you 100% rest assured global presence service even over the warranty period.
