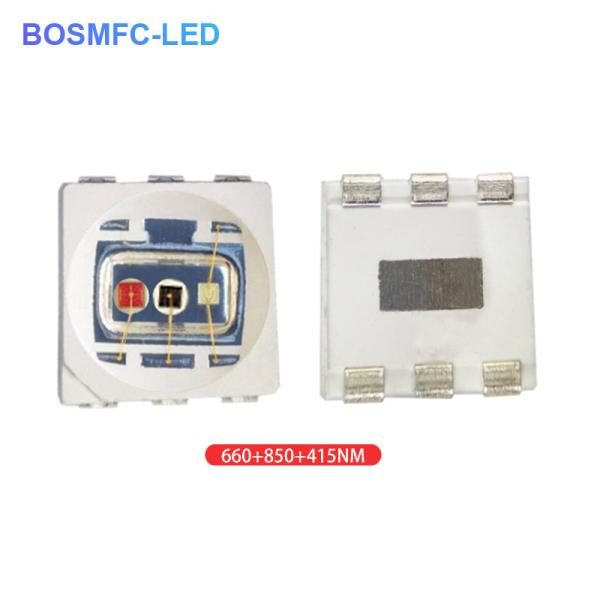

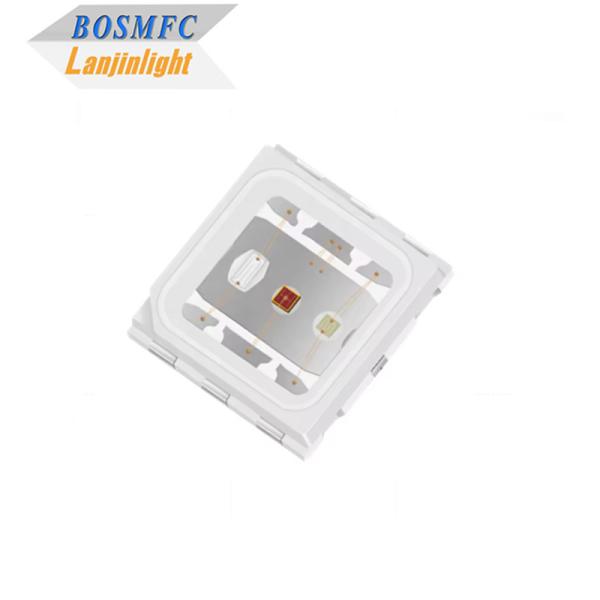

1.5W 5050 SMD LED Chip 660nm+850nm+415nm For LED Medical Cosmetology Alleviate Pain
1.5W 5050 SMD LED Chip 660nm+850nm+415nm For LED Medical Cosmetology Alleviate Pain
1.5W 5050 SMD LED Chip 660nm+850nm+415nm For LED Medical Cosmetology Alleviate Pain
1.5W 5050 SMD LED Chip 660nm+850nm+415nm For LED Medical Cosmetology Alleviate Pain
Specifications
Brand Name :
BOSMFC
Model Number :
5050 Tri-color SMD LED
Certification :
Rohs, Reach
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
500KK/month
Delivery Time :
5-15 days
Packaging Details :
1000pcs/reel, Reel+Anti-static bag+carton
Application :
Indoor & Outdoor Lighting
Power Dissipation :
150mW
Color :
R+IR+UV
Wavelength :
660+850+415nm
optical power :
9.5lm/119mW/168mW
Forward Current :
150*3mA
Forward Voltage :
1.8-2.4/2.8-3.2 /2.8-3.2v
Size :
5.3*5.0*1.1mm
Warranty :
2 Years
Chip brand :
San'an chip / Epistar chip
Package :
1000pcs/reel
Lifetime :
50000h
Operating Temperature :
-40℃~85℃
Reverse Voltage :
5V
Storage Temperature :
-40℃~100℃
Description

1.5W 5050 SMD 660+850+415nm For LED medical cosmetology alleviate pain

5050 SMD LED---Lanjin catalog.pdf

Features:

  1. Well-known chip brands material
  2. 99.99% pure gold wire bonding
  3. High flux per LED
  4. Low-temp & lead-free reflow soldering
  5. More energy-efficient than incandescent and most halogen lamps
  6. Low Voltage DC operated
  7. Long lifespan 50,000 hours

Technical Parameters:

Electrical optical characteristics of 5050 Top smd led:(Ta=25°C)

Parameter Symbol Color Min Typ Max Unit Test Condition
Wavelength λd Red

IR

Blue/UV

660

850

415

 nm IF=150*3mA
Optical power Iv Red

IR

Blue/UV

 9.5

119

168

lm

mW

mW

 IF=150*3mA
Forward voltage VF Red

IR

Blue/UV

 1.8
2.8

2.8

 --- 2.4
3.2

3.2

 V IF=150*3mA
Viewing angle --- 120 --- deg IF=150*3mA
Reverse current IR --- ---- 5 uA IF=150*3mA
Operation Temperature －40~+85℃ Size 5.3*5.0*1.1mm
Storage Temperature －40~+100℃ Packing 1000pcs/reel

1.5W 5050 SMD LED Chip 660nm+850nm+415nm For LED Medical Cosmetology Alleviate Pain

Applications:

*Medical beauty lamp,

* Medical lamp,

* Beauty lamp,

* Freckle lamp

1.5W 5050 SMD LED Chip 660nm+850nm+415nm For LED Medical Cosmetology Alleviate Pain

Materials:

1.5W 5050 SMD LED Chip 660nm+850nm+415nm For LED Medical Cosmetology Alleviate Pain

Company information:

Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.

Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.

Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED. Widely used in communication equipment, swithching power supply, decorative lighting, multi-speaker, DVD and other electronics.

Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!

1.5W 5050 SMD LED Chip 660nm+850nm+415nm For LED Medical Cosmetology Alleviate Pain

Packing and Shipping:

Inner packaging: Anti-static Bag Vacuo Packaging

Outer packaging: Standard export carton packing.

1.5W 5050 SMD LED Chip 660nm+850nm+415nm For LED Medical Cosmetology Alleviate Pain

1.5W 5050 SMD LED Chip 660nm+850nm+415nm For LED Medical Cosmetology Alleviate Pain

FAQ:

Q: Are you mamanufacturer?

A: Yes we are 18 years LED manufacturer in China.

Q: Do you provide samples?

A: Yes we can provide free samples according to customers requirements.

Q: What certificates does this product have?

A: We have CE, Reach, ROHS certified.

Q: What about OEM and ODM?

A: We accept OEM and ODM orders, MoQ is open for discussion.

Q: What is depvery terms and time?

A: We use EXW , FOB terms and ship the goods in 7-30 days depend on your order quantity, customization.

Q5: How do you deal with the LED Failure issue?

A: Our engineer will analyze the failure and find out the failure cause according to the failed

products pictures or the rejected samples from clients. We will compensate a new batch of LED products to you as fast as we could and send them to you if the failure caused by Lanjin.

Our led products are produced in strict quality control system and we will do the inspection before shipment, so the defective rate will be more less than others.
