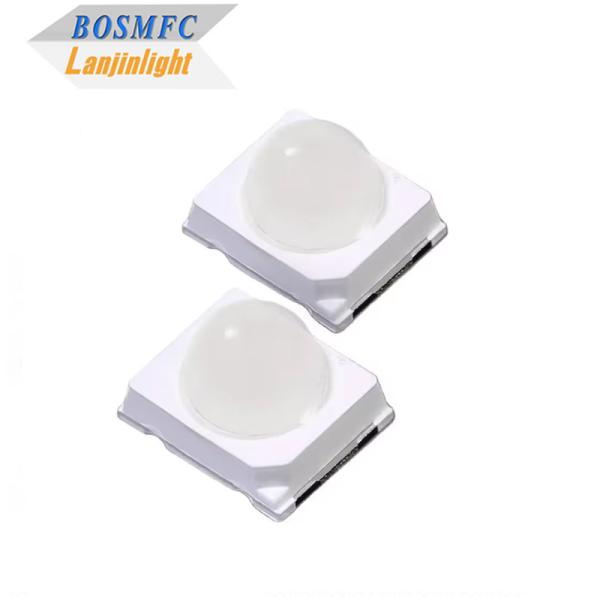

Natural White CCT6500K Dome Lens 30 And 60degree 2835 SMD LED Molding LED For Traffic Lights
Natural White CCT6500K Dome Lens 30 And 60degree 2835 SMD LED Molding LED For Traffic Lights
Natural White CCT6500K Dome Lens 30 And 60degree 2835 SMD LED Molding LED For Traffic Lights
Natural White CCT6500K Dome Lens 30 And 60degree 2835 SMD LED Molding LED For Traffic Lights
Specifications
Brand Name :
BOSMFC
Model Number :
2835 SMD LED dome lens
Certification :
Rohs, Reach
Place of Origin :
China
MOQ :
2000pcs
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
500KK/month
Delivery Time :
5-15 days
Packaging Details :
2000pcs/reel, Reel+Anti-static bag+carton
Application :
Indoor & Outdoor Lighting
Power :
0.2 W
Emitting color :
White
Wavelength :
CCT2800-20000K
Forward Current :
60mA
Forward Voltage :
2.8-3.6v
Luminous Flux :
5000-6500mcd
Viewing Angle :
30°
Size :
2.8*3.5*2.2mm
Color Rendering Index (Ra) :
85
Operating Temperature(℃) :
-40 - +85
Storage Temperature(℃) :
-40 - +100
Lifespan :
50,000 Hours
Warranty :
3 Years
Chip brand :
San'an chip / Epistar chip
Package :
2000pcs/reel
Description

Natural white CCT6500K dome lens 30 and 60degree 2835 SMD LED molding LED for traffic lights

Features:

  1. Energy saving and environmental protection
  2. Good heat dissipation
  3. Low light attenuation
  4. Strong anti-static ability
  5. RoHS certification

Technical Parameters:

Electrical optical characteristics of 3528 Top smd led:(Ta=25°C)

Parameter Symbol Color Min Typ Max Unit Test Condition
CCT CCT White 2800 --- 20,000 K IF=60mA
Luminous intensity Iv White 5000 --- 6500 mcd IF=60mA
Forward voltage VF White 2.8 --- 3.4 V IF=60mA
Viewing angle --- 30 --- deg IF=60mA
Reverse current IR White --- ---- 5 uA IF=60mA
Operation Temperature －40~+85℃ Size 3.5*2.8*2.2mm
Storage Temperature －40~+100℃ Packing 2000pcs/reel

Natural White CCT6500K Dome Lens 30 And 60degree 2835 SMD LED Molding LED For Traffic Lights

Applications:

  1. LED traffic lights, traffic signs
  2. LED module and LED strip light
  3. Decoration light, backlight in dashboards and switches
  4. Auto lamp, automotive electronics.
  5. LED Taillight, LED Brake Light , Turn light.
Natural White CCT6500K Dome Lens 30 And 60degree 2835 SMD LED Molding LED For Traffic Lights

Materials:

Natural White CCT6500K Dome Lens 30 And 60degree 2835 SMD LED Molding LED For Traffic Lights

Company information:

Dongguan Lanjin Optoelectronics Co., Ltd. established in 2005, a professional manufacturer in producing light emitting diode, LED digital display, SMD LED , through-hole LED and LED PCB assembly service. Covering 2,500 square meters factory plant, with modern purification constant termperature and humidity anti-static production workshop.

Our company has passed ISO9001:2015 international Quality management system certification, and now applying for ISO14001 Environmental management system certification. With 18 years development, we achieved 2 national invention patents, 12 practical new-type patents, 2 software invention patents, all products comply with the EU RoHS standard.

Lanjin has absorbed the advanced manufacturing technology of Japan, Korea and Western Europe. With a high starting point, high quality market positioning, developed high temperature resistance & long life LED.

Lanjin always addict to the principle of “ Quality and customer first”, provide customized services according to customer’s demand. LED light the world, Lanjin lights your life!

Packing and Shipping:

Inner packaging: Anti-static Bag Vacuo Packaging

Outer packaging: Standard export carton packing.

Natural White CCT6500K Dome Lens 30 And 60degree 2835 SMD LED Molding LED For Traffic Lights

Natural White CCT6500K Dome Lens 30 And 60degree 2835 SMD LED Molding LED For Traffic Lights

FAQ:

Q1. MOQ and delivery time ?
A: NO MOQ required, sample testing welcome.. Mixed samples are acceptable.
Sample needs 3-5 days, mass production time needs 2-3 weeks for order quantity

Q2. Can you do OEM?
A: Yes, we are 18 years factory,we have design team, engineer team, after-service team QC team etc.5.What is your payment term?
T/T,Western Union credit and Paypal.This is negotiable.


Q3. How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

4. What else can we provide
A: We have our own packaging machine, which can make lamp beads with different angles and different wavelengths, and we can also
make security monitoring modules

Q5: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.

Q6: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.Secondly,
during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
