380V Short Path Distillation Equipment 20L Plant Oil Extraction Apparatus
380V Short Path Distillation Equipment 20L Plant Oil Extraction Apparatus
380V Short Path Distillation Equipment 20L Plant Oil Extraction Apparatus
380V Short Path Distillation Equipment 20L Plant Oil Extraction Apparatus
Specifications
Brand Name :
Lanphan
Model Number :
20L-II
Certification :
CE
Place of Origin :
Henan
MOQ :
1
Price :
Can discuss
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000
Delivery Time :
5-8 work days
Packaging Details :
carton or wooden case package, customized package is available.
Name :
20L short path distillation
Model :
20L-II
Heating temperature(℃) :
Room temperature -250
Working temperature(℃) :
5-40
Weight :
67kg
Description

20l plant oil extraction apparatus shortest short path distillation equipment

Product Description

As a type of thermodynamic separation technology, the equipment can evaporate components with low boiling points by utilizing that the boiling point of each component in the mixed liquid or liquid-solid mixture is different, and then condense the material to separate the whole components. It is the combination of evaporation and condensation unit operations as well as a kind of liquid-liquid separation technology.

Product Parameter

Model SD-2 SD-5 SD-10 SD-20
Material G3.3
Heating Capacity(ml) 2000 5000 1000 2000
Heating temperature(℃) Room temperature -250
Accuracy(℃) ±1
Vaccuum Degree(Mpa) 0.098
Working temperature(℃) 5-40
Voltage 220V/50Hz or 110V/60Hz 380V/50Hz
Package Size (mm) 450*450*600 580*580*735 850*850*600 1300*1300*1300
Weight 18 kg 24 kg 30 kg 50kg

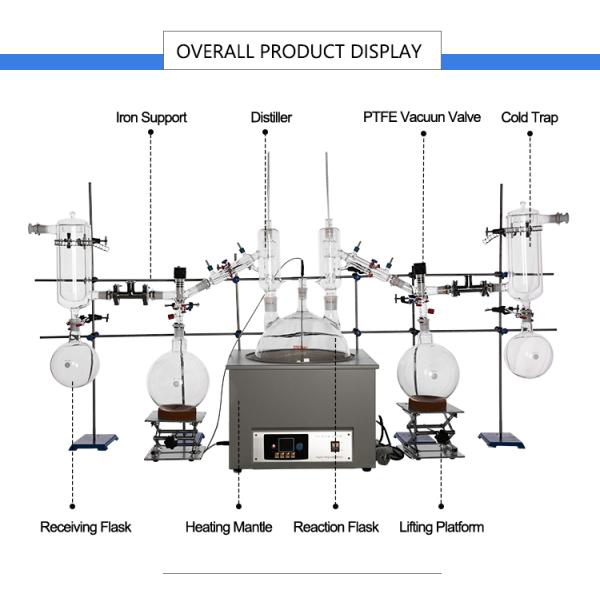

Overall Product Display

Compared to other separation methods, such as extraction, filtration and crystallization, it has the advantage that no other solvents than system components are required, thus ensuring that no new impurities are introduced.

380V Short Path Distillation Equipment 20L Plant Oil Extraction Apparatus
