180mm Lifting 20L Rotary Vacuum Evaporator With Water Bath
180mm Lifting 20L Rotary Vacuum Evaporator With Water Bath
180mm Lifting 20L Rotary Vacuum Evaporator With Water Bath
180mm Lifting 20L Rotary Vacuum Evaporator With Water Bath
Specifications
Brand Name :
Lanphan
Model Number :
R-1020
Certification :
CE
Place of Origin :
Henan
MOQ :
1
Price :
Can discuss
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000
Delivery Time :
5-8 work days
Packaging Details :
carton or wooden case package, customized package is available.
Name :
Rotary evaporator
Model :
R-1020
Rotating speed (rpm) :
5-120
Rotary flask :
20 L
Lifting :
0-180 mm
Description

20L rotavapor rotary vacuum evaporator seller with water bath price

Product Description

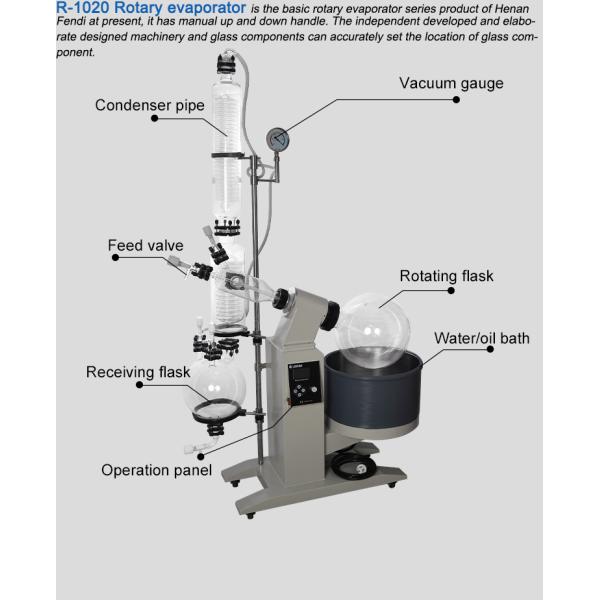

R-1020 Rotary evaporator is the basic rotary evaporator series product of Henan Lanphan at present, it has manual up and down handle. The independent developed and elaborate designed machinery and glass components can accurately set the location of glass component.

The maximum capacity of a R-1020 rotary evaporator is 2000ml, the rotating speed is from 5rpm to 120rpm, and the motor power is 60W. It adopts fully automatic control of temperature, rotating speed and bath’s lifting. The rotary evaporator can rotate to form a thin film and evaporate efficiently under constant temperature and negative pressure, and then it can condense the solvent for recycling. It is especially suitable for crystallization and separation of heat-sensitive materials as well as solvent recovery.

Product Parameters

Model R- 5L R- 10L R- 20L R-50L
Ambient temperature (°C) 5~25
Rotating speed (rpm) 5-120
Rotary motor (W) 30 60 60 100
Heating Temperature (°C) Digital temperature control, constant temperature -250°C
Maximum vacuum degree (Pa) 399.9Pa(under 3mmHg)
Rotary flask (L) 5 10 20 50
Receiving flask (L) 3 5 10 20
Evaporative capacity (L/H) 2-water 3-water 5-water 9-water
5.4-Ethanol 8-Ethanol 14.3-Ethanol 25-Ethanol
Water bath material Stainless steel
Water bath size (mm) Φ280×170 Φ350×220 Φ450×250 Φ550×320
Lifting (mm) 0-140 0-180 0-180 0-180
Power (KW) 2 3 5 6.5
Voltage(V/Hz) Single-phase 220V/60HZ (Voltage can be customized)
Dimension (mm) 765×400×1070 920×550×1700 1250×600×2100 1320×770×2340

Products Show

180mm Lifting 20L Rotary Vacuum Evaporator With Water Bath
