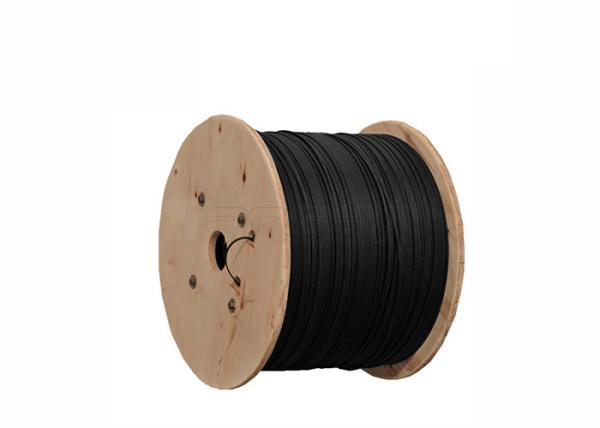

Loose Tube OM4 Multimode Optical Fiber Cable , 50 / 125 Fiber Optic Outdoor Cable
Loose Tube OM4 Multimode Optical Fiber Cable , 50 / 125 Fiber Optic Outdoor Cable
Loose Tube OM4 Multimode Optical Fiber Cable , 50 / 125 Fiber Optic Outdoor Cable
Loose Tube OM4 Multimode Optical Fiber Cable , 50 / 125 Fiber Optic Outdoor Cable
Specifications
Brand Name :
OEM/ ODM/ Lansan
Model Number :
GYXTW
Certification :
ROHS/ CE/ ETL/ UL
Place of Origin :
China
MOQ :
1000 meters
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
20000 Meters
Delivery Time :
10-12 work days
Packaging Details :
1000 meters/spool
Loose Tube Material :
Fbt
Installation :
Aerial /Duct
Mositure Resistance :
Gel Filled
Fiber :
MultiMode OM4
Optical Fiber Cable :
Outdoor Fiber Cable
HS Code :
854470000
Description

OM4 50 / 125 Steel Wire Water Barrier 12 Cords Central Loose Tube Fiber Optical Cable

Application

  • Long-distance communication
  • local trunk line
  • CATV & computer networks system

Technical Features

  • Low dispersion and attenuation
  • Proper design, precise control for fiber excess length render the cable *excellent mechanical and environmental characteristics.
  • Steel-PE sheath makes cable have nice moisture resistance performance
  • Small cable diameter, light cable weight, easily to install.
  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special Tube filling comound ensure a critical protection of fiber Crush Resistance and flexibility
  • Two parallel steel wires ensure tensile strength

​

Physicial Parameter

Quantity of fibers 2-24
Promised tension (N) Long-term 600
Short-term 1500
Promised pulling tension (N100/mm) Long-term 300
Short-term 1000
Min bend radius(mm) Long-term 20D
Short-term 10D
Operating temperature ( o C) -40~60
The way Aerial Duct

​

Characteristics:

  • Large span lengths and the largest span is over 1700m.
  • Non-metallic material, with high insulating property performances as well as lightningproof
  • Special Anti-Track outer sheath (optional) protection, strong anti-electro-corrosion ability.
  • The aramid yarn ensures the cable's tensile resistance, and also have good bulletproof performances.
  • Light weight with small diameter, reducing the load caused by ice and wind as well as the load on the towers and backprops.
  • Can be installed without shutting off the power.

Loose Tube OM4 Multimode Optical Fiber Cable , 50 / 125 Fiber Optic Outdoor Cable
