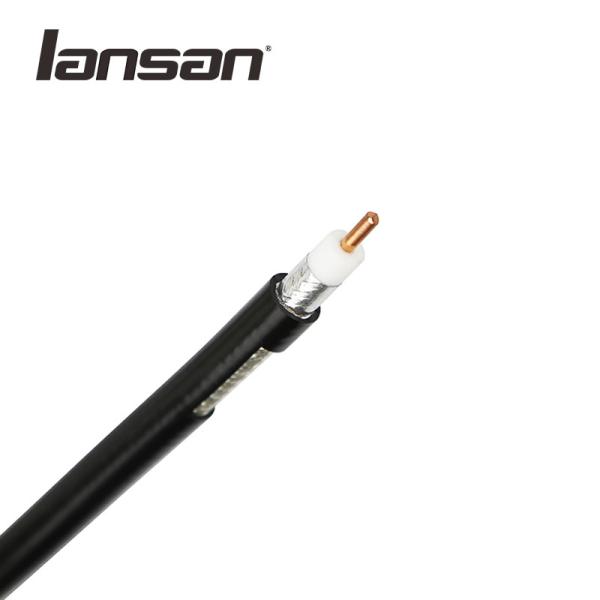

0.81mm Conductor CATV Coaxial Cable RG59 96 Braiding Bare Copper
0.81mm Conductor CATV Coaxial Cable RG59 96 Braiding Bare Copper
0.81mm Conductor CATV Coaxial Cable RG59 96 Braiding Bare Copper
0.81mm Conductor CATV Coaxial Cable RG59 96 Braiding Bare Copper
0.81mm Conductor CATV Coaxial Cable RG59 96 Braiding Bare Copper
0.81mm Conductor CATV Coaxial Cable RG59 96 Braiding Bare Copper
0.81mm Conductor CATV Coaxial Cable RG59 96 Braiding Bare Copper
0.81mm Conductor CATV Coaxial Cable RG59 96 Braiding Bare Copper
Specifications
Brand Name :
OEM/ ODM/ Lansan
Model Number :
RG59
Certification :
CE/ RoHS/ ETL/ ISO
Place of Origin :
China
MOQ :
15000 Meters
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, Paypal
Supply Ability :
100000 Meters/ Day
Delivery Time :
12-14 Work Days
Packaging Details :
100 Meters/ Box
Conductor Material :
Bare Copper
Conductor Size :
0.81mm
Braiding :
Al-M
Insulation :
Foam PE
Jacket :
PVC
name :
video coaxial cable
Description

75OHM RG59 96 Braiding Bare Copper CATV Video Coaxial Cable

Characteristics

  • High velocity of propagation, low attenuation, low return loss;
  • Perfect connecting cable for digital video and audio signals for the highest quality image;
  • Perfect cable for satellite TV & high speed internet;
  • Durable & flexible PVC jacket is ideal for running cable through dry wall and over drop ceilings girders;
  • Allows for bending cable without damaging the quad shielded insulated wiring

​

Specification

Name Material Parameter
Inner conductor Bare copper 0.81 mm (diameter)
Dielectric Physical foam PE 3.66 mm (diameter)
First shield Bonded aluminum foil 3.84 mm (diameter)
Second shield Aluminum braid 67% or 95% coverage
Jacket PVC or PE 6.10 mm (diameter)
Messenger N/A N/A

Attenuation at 20ºC

Frequency (MHz) 5 55 300 500 750 1000
Maximum(dB/100m) 2.82 6.73 14.60 18.70 22.87 26.64

0.81mm Conductor CATV Coaxial Cable RG59 96 Braiding Bare Copper
