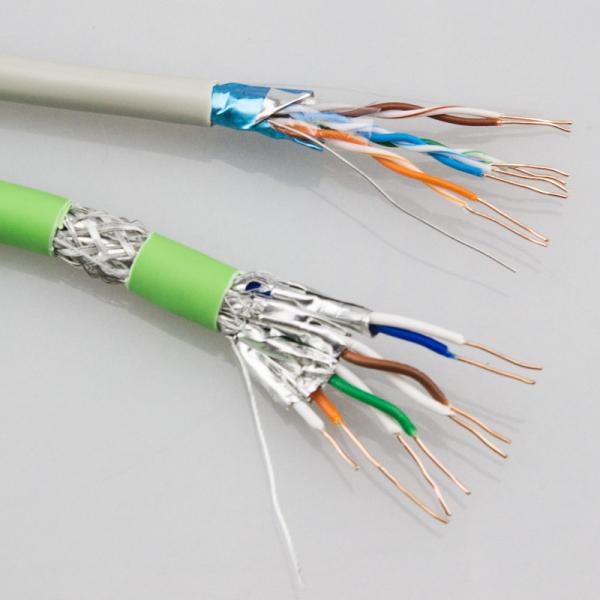

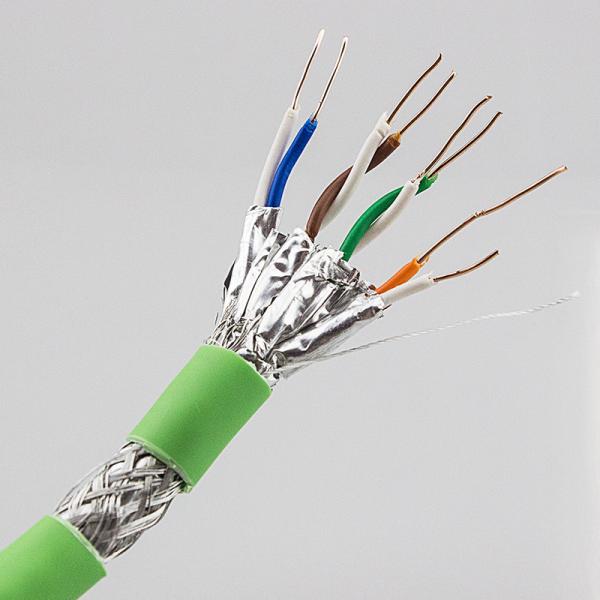

Ethernet SFTP 23AWG Cat6a Network Cable Al Foil Shielded Copper Braiding
Ethernet SFTP 23AWG Cat6a Network Cable Al Foil Shielded Copper Braiding
Ethernet SFTP 23AWG Cat6a Network Cable Al Foil Shielded Copper Braiding
Ethernet SFTP 23AWG Cat6a Network Cable Al Foil Shielded Copper Braiding
Ethernet SFTP 23AWG Cat6a Network Cable Al Foil Shielded Copper Braiding
Ethernet SFTP 23AWG Cat6a Network Cable Al Foil Shielded Copper Braiding
Ethernet SFTP 23AWG Cat6a Network Cable Al Foil Shielded Copper Braiding
Ethernet SFTP 23AWG Cat6a Network Cable Al Foil Shielded Copper Braiding
Specifications
Brand Name :
OEM/ ODM/ Lansan
Model Number :
CAT6A S/FTP
Certification :
UL/ CE/ ETL/ ROHS/ ANATEL
Place of Origin :
China
MOQ :
100 Rolls
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram. Paypal
Supply Ability :
5000 Rolls/Day
Delivery Time :
20-25 Work Day
Packaging Details :
305 meter/roll
Conductor :
0.57mm Solid Bare Copper
Insulation :
cat6a shielded cable
Cord :
4 Twisted Pairs
Shiled :
Al Foil & braiding
Jacket :
ROHS PVC, LSZH
Color :
Customize
Description

Ethernet cable Cat6a Cable Network Al Foil Shielded Copper Braiding SFTP 23 AWG LSZH

Description

  • LANSAN Intelligent Structure Cabling products include shielded and unshielded
    Category 5E, Category 6, Category 6A and Category 7 and all series fiber optic
    products.

  • Widely used at Voice data, Graphic image, Multi-media, Security monitoring and other
    data transmission.

  • Combined with keystone Jack Patch cords, and patch panel, it provides
    excellent and stable performance.

  • The solution is for hospital, government manufacturingand other environments.

Specification

No. of Cord 4 Pairs
Conductor Material BC
Construction 1/0.57± 0.008mm
Insulation Material HDPE
Filler /
Shield1 Material Single side AL foil which electic side toward outside
Coveragae ≧25%
Shield2 Material Single side AL foil which electic side toward iutside
Coveragae ≧25%
Drain Wire Material Aluminum Magnesium Metal
Rip Cord Nylon
Jacket Material ROHS
O.D. 8.0 ± 0.3mm
Color Customized
Marking Customized
Insulation Resistance Min. 5000 mega ohms-km at 20℃
Dielectric Test 1000V DC /1 min ; No Breakdown
Temperature Rating 60℃
Operating Temperature -20℃ ~ 80℃
Bend Radius 4 x cable diameter

Features

  • Humanized Design
  • Full series Keystone Jack supported
  • Quick Installation design avaiable

Competitive Advantage

  • For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.
  • For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.
  • For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods.
  • Certificates: ISO, CE, CCC,ETL, RoHS ,ANATEL & UL approval.​
