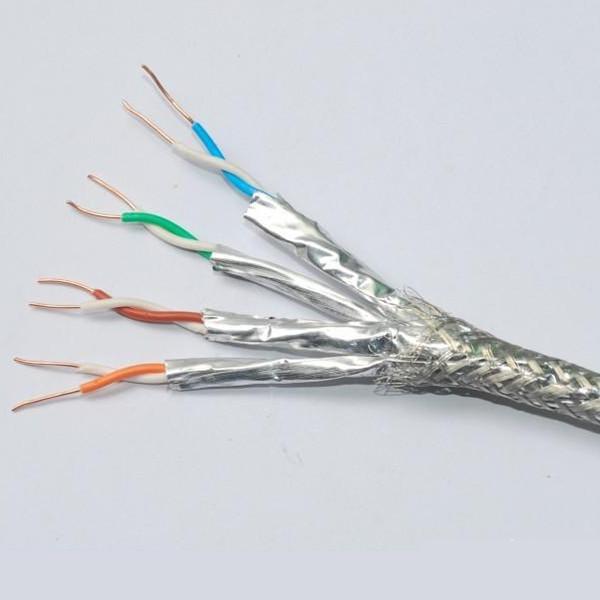

HDPE BC Cat6A Patch Cord Al Foil 4 Twisted Pairs SFTP Copper Braiding
HDPE BC Cat6A Patch Cord Al Foil 4 Twisted Pairs SFTP Copper Braiding
HDPE BC Cat6A Patch Cord Al Foil 4 Twisted Pairs SFTP Copper Braiding
HDPE BC Cat6A Patch Cord Al Foil 4 Twisted Pairs SFTP Copper Braiding
Specifications
Brand Name :
Lansan Or OEM
Model Number :
Cat6A SFTP
Certification :
ETL, UL,ISO,CE,ROHS,Anatel
Place of Origin :
China
MOQ :
100Rolls
Price :
Negotiate
Payment Terms :
Western Union, L/C, T/T
Delivery Time :
12-15 Working Days
Packaging Details :
305m/Roll/Box
Wire Material :
Bare Copper
Color :
Customized
Copper :
Stranded Wire
Insulation :
HDPE
Shiled :
Al Foil
Jacket Material :
ROHS PVC/ LSZH
cord :
4 Pairs
name :
Cate6A
Description

SFTP Copper Braiding HDPE BC Cat6A Lan Cable Al Foil 4 Twisted Pairs


Description

  • Lansan patch cords with high-quality electric and mechanical properties.

  • Meeting high-end demand and achieve superior shielding effect by virtue of aluminum foil.

  • Constructed with high-quality cable and a shortened body plug, prevents unwanted cable snaps during installation and provides strain-relief.

  • Easy to insert and remove cables in high density applications.

  • Designed for network adapters, hubs, switches, routers, DSL/cable modems and patch panels.

Specification

No. of Cord 4 Pairs
Conductor Material BC
Construction 1/0.57± 0.008mm
Insulation Material HDPE
Filler /
Shield Material Al - Mylar
Braiding Aluminum Magnesium Ally Solid
Drain Wire Material Aluminum Magnesium Metal
Rip Cord Nylon
Jacket Material ROHS PVC/ LSZH
O.D. 8.0 ± 0.3mm
Color Customized
Marking Customized
Insulation Resistance Min. 5000 mega ohms-km at 20℃
Dielectric Test 1000V DC /1 min ; No Breakdown
Temperature Rating 60℃.
Operating Temperature -20℃ ~ 80℃
Bend Radius 4 x cable diameter.


Features

  • Humanized Design
  • Full series Keystone Jack supported
  • Quick Installation design avaiable
  • Separated structure inside the cable ensures the stable transmission of data.



Competitive Advantage

  • For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.
  • For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.
  • For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods.
