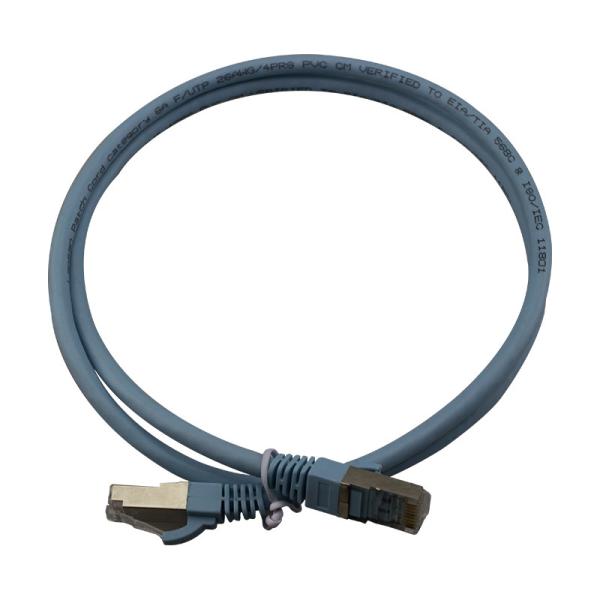

LSZH BC Cat6A Patch Cord CMG Modular Plug Connector FM PE
LSZH BC Cat6A Patch Cord CMG Modular Plug Connector FM PE
Specifications
Brand Name :
OEM/ ODM/ LANSAN
Model Number :
CAT6A U/FTP
Certification :
ETL/ CE/ UL/ ANATEL/ RoHS
Place of Origin :
China
MOQ :
5000m
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
5000 Boxes/Day
Delivery Time :
15-20 Work Day
Packaging Details :
400 pcs/box
Conductor :
24AWG Bare Copper
Insulation :
Foam PE
name :
cat6A patch cables
Jacket :
ROHS PVC/LSZH
Shiled :
Al Foil
Color :
Customized
Fire Rating :
CMX/ CMG/ CM/ CMR/ CMP
Length :
Customized
Description

BC Cat6A Patch Cord CMG ROHS Jacket Modular Plug Connector FM PE

Description

  • Lansan patch cords with high-quality electric and mechanical properties.

  • Meeting high-end demand and achieve superior shielding effect by virtue of aluminum foil.

  • Constructed with high-quality cable and a shortened body plug, prevents unwanted cable snaps during installation and provides strain-relief.

  • Easy to insert and remove cables in high density applications.

  • Designed for network adapters, hubs, switches, routers, DSL/cable modems and patch panels.

Specification

No. of Cord 4 Pairs
Conductor Material BC
Construction 24AWG 7/0.20mm
Insulation Material FM-PE
Filler /
Shield Material Al - Mylar
Braiding /
Drain Wire Material Aluminum Magnesium Metal
Rip Cord Nylon
PE Cross Material Polyethy Lene
Construction 4.4mm*4.4mm
Jacket Material ROHS PVC/LSZH
O.D. 6.2 ± 0.1mm
Color Customized
Marking Customized
Mutual Capacitance 5.8nF/100m
Characteristic Impedance 100Ω ±15%,1~ 350MHz
Conductor DC Resistance 9.3Ω/100m Max.
Voltage 300V
Delay Skew 25ns/100m Max.

Features

  • Independently tested and verrified by ETL
  • Humanized Design
  • Full series Keystone Jack supported
  • Separated structure inside the cable ensures the stable transmission of data.

Competitive Advantage

  • For quality, our superior raw material, skilled production team, advanced equipment and mature quality control system could assure you of that we could offer the cable with high and consistent quality.
  • For price, our offer can be much more competitive than other suppliers such as the trading company, as we have our own factory.
  • For production capacity, we could produce 30 million meters cable monthly, which will assure you of prompt delivery of the goods.
  • Certificates: ISO, CE, CCC,ETL, RoHS ,ANATEL & UL approval.
