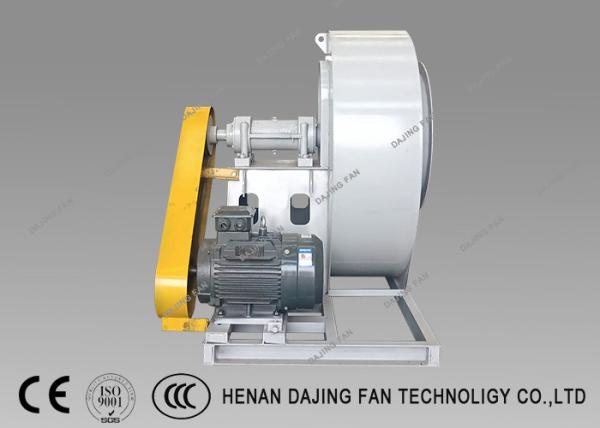

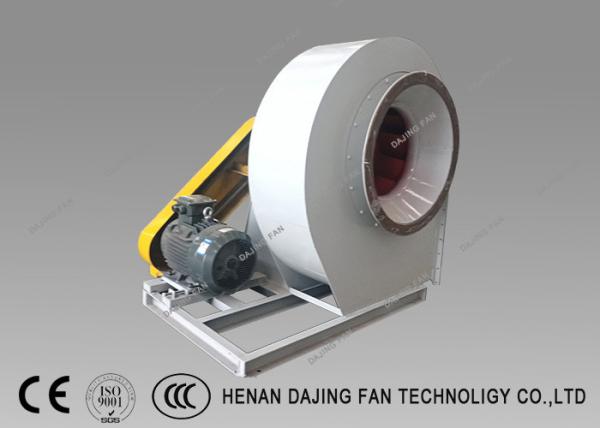

Low Pressure 3 Phase Large Centrifugal Fan Belt Drive Industrial Materials Drying
Low Pressure 3 Phase Large Centrifugal Fan Belt Drive Industrial Materials Drying
Low Pressure 3 Phase Large Centrifugal Fan Belt Drive Industrial Materials Drying
Low Pressure 3 Phase Large Centrifugal Fan Belt Drive Industrial Materials Drying
Low Pressure 3 Phase Large Centrifugal Fan Belt Drive Industrial Materials Drying
Low Pressure 3 Phase Large Centrifugal Fan Belt Drive Industrial Materials Drying
Specifications
Brand Name :
DAJING
Model Number :
4-73C
Certification :
CE/ISO9001/3C
Place of Origin :
HENAN PROVINCE, CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets per month
Delivery Time :
10-60 days
Packaging Details :
Packed in wooden box, rainproof cloth, container, according to customer requirements.
Voltage :
220v,380v,460v
Phase :
3-phase
Material :
Cast Iron
Drive :
Belt Connection
Application :
Material Drying
Type :
Centrifugal Blower
Description

Low Price Large Capacity Centrifugal Fan Industrial Materials Drying Blower

This series of centrifugal fan has large flow, low pressure, high efficiency, low noise and stable performance curve. Usually used for supporting drying equipment. The drying temperature must not exceed 80 ° C. Can be used to dry grain and tea. It can also be used as industrial drying clinker.

Low Price Large Capacity Centrifugal Fan Industrial Materials Drying Blower
Centrifugal fan Air Flow 8000~50000 m3/h
Pressure 900~3400 Pa
Rotating speed 2900/1450/960/730 r/min
Material Carbon steel
Motor Power 4~55 kw
Voltage 220/380/440/6000/6600 v
Frequency 50/60 hz

The fan has the characteristics of good aerodynamic performance, low running balance vibration, high efficiency, long life and so on.

Industrial and mining enterprises large buildings hotels restaurants and other indoor ventilation ventilation dust. Centrifugal fan is dependent on the input of mechanical energy, increase the gas pressure side by side to send gas machinery, it is a driven fluid machinery. Centrifugal fans are widely used in factories, mines, tunnels, cooling towers, vehicles, ships and buildings for ventilation, dust and cooling; Ventilation and ventilation of boilers and industrial furnaces; Cooling and ventilation in air conditioning equipment and household electrical equipment; Drying and selection of grain; Wind tunnel source and the air and propulsion of the hovercraft.

At the same time, we provide our customers with these:

Import and export flanges;

Import and export soft connection;

Regulating valve;

Electric Actuator;

Shock-absorbing rubber pad;

Temperature and vibration measuring instrument.

Centrifugal fan production process:

Case Show:
