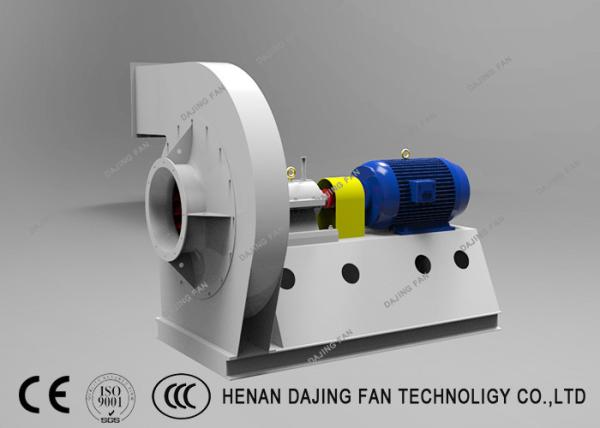

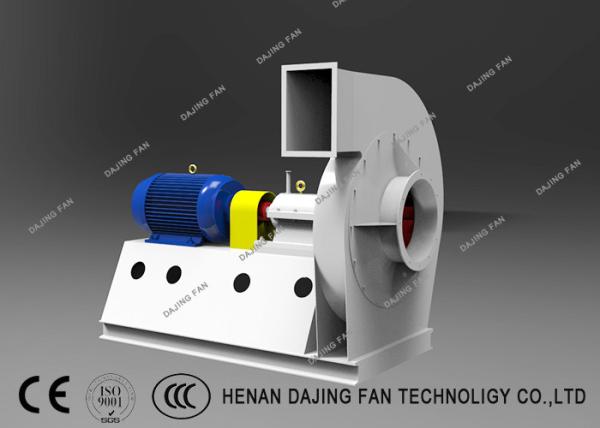

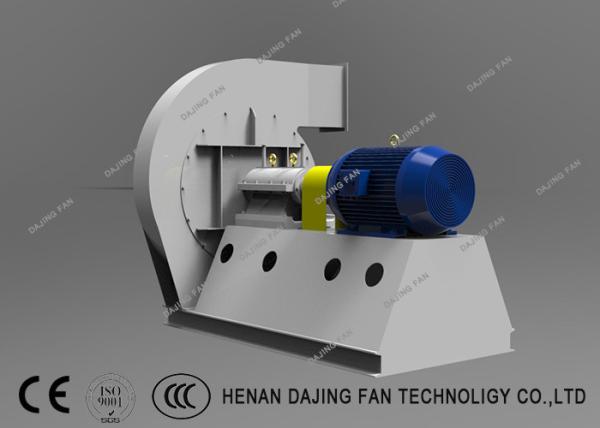

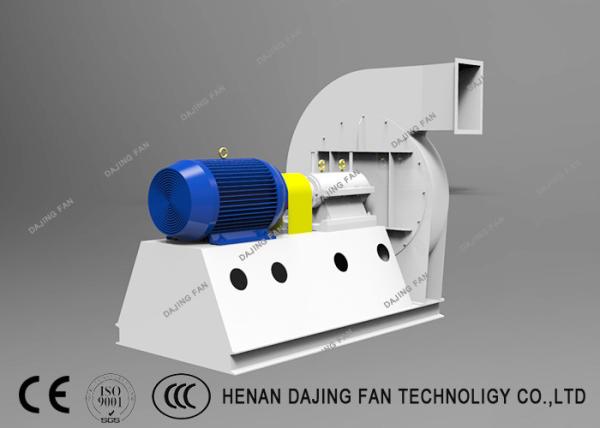

Feed Production Plant Material Handling Blower 4000pa Low Air Flow Single Inlet
Feed Production Plant Material Handling Blower 4000pa Low Air Flow Single Inlet
Feed Production Plant Material Handling Blower 4000pa Low Air Flow Single Inlet
Feed Production Plant Material Handling Blower 4000pa Low Air Flow Single Inlet
Feed Production Plant Material Handling Blower 4000pa Low Air Flow Single Inlet
Feed Production Plant Material Handling Blower 4000pa Low Air Flow Single Inlet
Feed Production Plant Material Handling Blower 4000pa Low Air Flow Single Inlet
Feed Production Plant Material Handling Blower 4000pa Low Air Flow Single Inlet
Specifications
Brand Name :
DAJING
Model Number :
9-19-D
Certification :
CE/ISO9001/3C
Place of Origin :
HENAN PROVINCE, CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets per month
Delivery Time :
10-60 days
Packaging Details :
Packed in wooden box, rainproof cloth, container, according to customer requirements.
Type :
High Pressure Blower
Application :
Feed Production Plant
Driven :
Coupling Connection
Warranty :
1 year
Impeller :
Wear-resistant
Pressure :
4000pa
Description

Feed Production Plant Material Handling Blower 4000pa Low Air Flow

The Model 9-19 and 9-26 high-pressure centrifugal fan is extensively applied to transmit materials. The transmission medium is air or other non-flammable gases, which are harmless to human. The medium does not contain any adhesive materials. The gas temperature is ≤80℃,and the dust and particle volume are ≤150mg/m3. It is generally suitable for enforced high pressure ventilation in such
industries as forging and smelting, glass, pottery, electroplating, battery and wireless sectors, etc. It is also used to deliver grain, fodder, ore powder, plastics, etc. in the processing industries. It is also suitable for the combined use with carton machinery and tempered glass equipment.

Feed Production Plant Material Handling Blower 4000pa Low Air Flow
Centrifugal fan Air Flow 6000~41500 m3/h
Pressure 3500~1500 Pa
Rotating speed 2900/1450/960 r/min
Material Carbon steel
Motor Power 7.5~410 kw
Voltage 220/380/440/6000/6600 v
Frequency 50/60 hz

Impeller Type: Backward/Forward/radial blade
Driving Mode: Direct/belt/Coupling drivetrain
System Type: Single inlet type, Overhang type
Cooling Type: Air cooling/Circulating Water cooling
Bearing Lubrication Methods: Grease lubricating/Oil bath lubrication

Centrifugal fan production process:

Case Show:

FAQ

Q1: What information do you need to select the suitable fan model?
A: Air flow, total pressure or static pressure, voltage, working condition.

Q2: How long is the warranty time?
A: One year in the condition of normal use.

Q3: What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q4:Can I use my own LOGO design on goods?

A:Yes, customized logo and design on mass products are available.(It can’t constitute infringement)
