Industrial Dust Collector Fan High Air Volume Dust Removal Blower High Efficiency
Industrial Dust Collector Fan High Air Volume Dust Removal Blower High Efficiency
Industrial Dust Collector Fan High Air Volume Dust Removal Blower High Efficiency
Industrial Dust Collector Fan High Air Volume Dust Removal Blower High Efficiency
Industrial Dust Collector Fan High Air Volume Dust Removal Blower High Efficiency
Industrial Dust Collector Fan High Air Volume Dust Removal Blower High Efficiency
Industrial Dust Collector Fan High Air Volume Dust Removal Blower High Efficiency
Industrial Dust Collector Fan High Air Volume Dust Removal Blower High Efficiency
Industrial Dust Collector Fan High Air Volume Dust Removal Blower High Efficiency
Industrial Dust Collector Fan High Air Volume Dust Removal Blower High Efficiency
Specifications
Brand Name :
DAJING
Model Number :
4-73D
Certification :
CE/ISO9001/3C
Place of Origin :
HENAN PROVINCE, CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
400 sets per month
Delivery Time :
10-60 days
Packaging Details :
Packed in wooden box, rainproof cloth, container, according to customer requirements.
Type :
Centrifugal Blower
Mounting :
Free Standing
Noise :
Low
Bearing :
FAG, SKF, ZWZ, C&U
Impeller :
Backward Impeller Blade
Voltage :
220v,380v,420v
Description

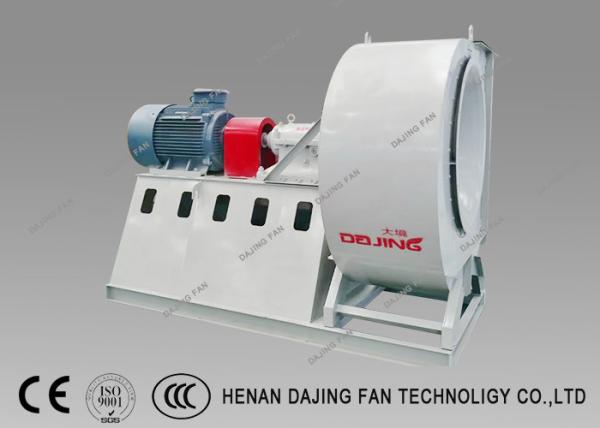

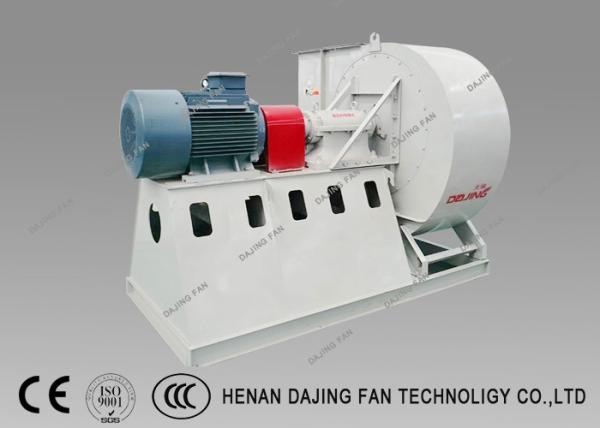

High Air Volume Industrial Dust Collector Centrifugal Blower Fan High Efficiency

This series of centrifugal fans has high efficiency, low noise and stable performance curve. Mainly used for indoor ventilation, dehumidification and dust removal, etc. in factories and mines, stadiums, opera houses, basements, large and small hotels, restaurants, shopping malls and large buildings. It can also be used as a gas recycler with other types of machinery.

High Air Volume Industrial Dust Collector Centrifugal Blower Fan High Efficiency
Centrifugal fan Air Flow 15000~320000 m3/h
Pressure 1100~4500 Pa
Rotating speed 1450/960/730/580 r/min
Material Carbon steel
Motor Power 7.5~380 kw
Voltage 220/380/440/6000/6600 v
Frequency 50/60 hz

Advanced Process
All steel laser cut blades are welded and positioned accurately. The overall strength of the blades are designed and welded to withstand long hours high speed operation.

High Balancing Level
Each wheel is subjected to dynamic balance test. The balancing level is kept at G4.0 (Typical products are balanced to G6.3 only). Durability, stability and quietness are guaranteed.

High Performance Curve
The wheel has a stable, smooth air performance curve which can efficiently avoid performance drop caused by the deviation of the working point.

Centrifugal fan production process:

Case Show:

FAQ

Q1: What information do you need to select the suitable fan model?
A: Air flow, total pressure or static pressure, voltage, working condition.

Q2: Are you factory or trade company?
A: We are manufacturers, not traders. we can provide good quality products and services.

Q3: Can I order some samples at first to see the quality?
A: Yes, of course.

Q4: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
