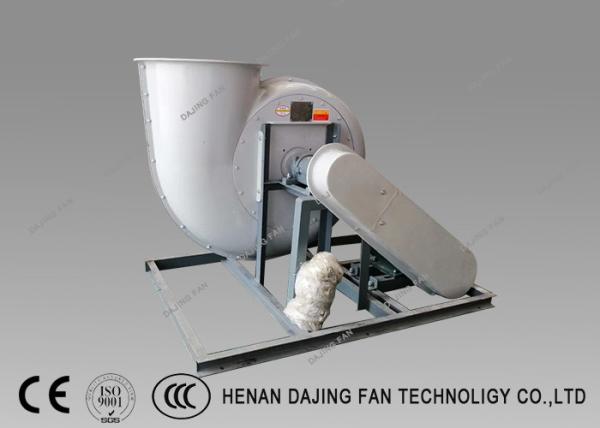

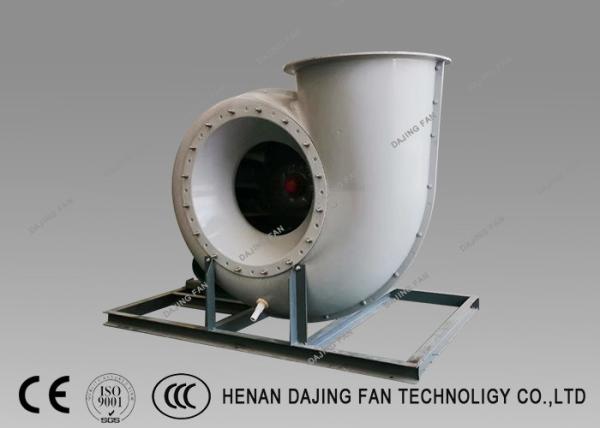

Anti-Corrosion General Ventilation Fan High Quality Workshop Industrial FRP

This series of centrifugal fan has high efficiency, low noise and stable performance curve. The whole is made of corrosion-resistant stainless steel. Generally used to transport corrosive gases, used in chemical industry and industrial desulfurization equipment.

Wheel
The wheel shall be of the backward curved centrifugal steel type and all welded. The wheel shall be statically and dynamically balanced up to ISO 1940-G4.0 standard. Stable airflow and low sound should be ensured as the wheel is operating at the maximum allowable speed. Drop in performance shall be avoided as the operating point moves up or down. The wheel shall be readily removable for cleaning or maintenance.
Fan Housing
The fan housing shall be constructed of steel and it shall be thick and strong enough to withstand the maximum operating weight of the fan. The housing shall be continuously welded and have an access door for removing possible foreign bodies.
Inlet
The inlet shall be designed in line with aerodynamics. It shall be streamlined for better airflow movement and efficiency, reducing turbulence and sound.
Motor
The motor shall be carefully matched to the fan load. It shall be IP54 rated with class F insulation. Ball bearing that can be lubricated shall be used. The motor and drive mechanism shall be isolated from the airstream to avoid grease or dirt accumulation.

Characteristic:
Strong cast iron fan of body and blades
Whole fan body with powder coating and plating blades
High quality IP54 motor with cast iron body and pure copper wire
Good looking surface, long working life and stable performance.

Centrifugal fan production process:

Case Show:
