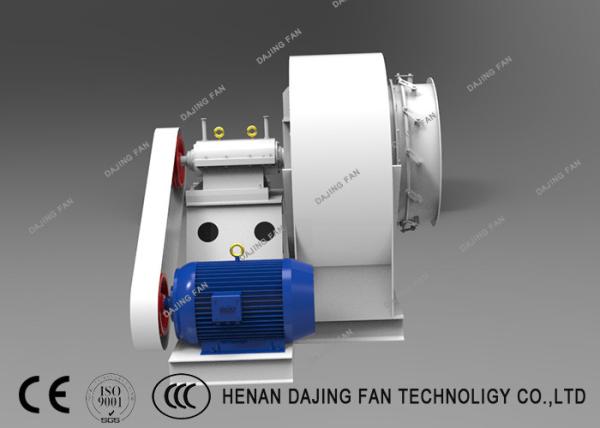

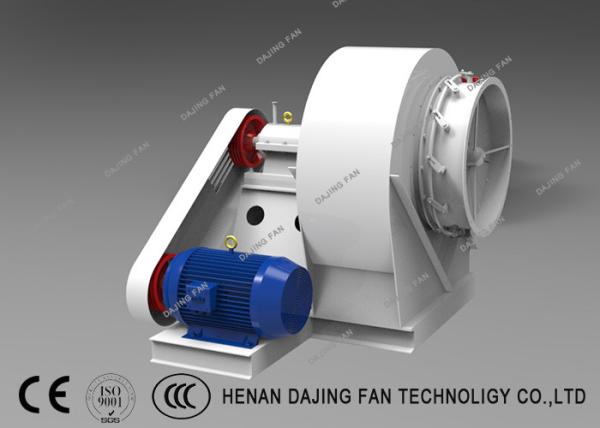

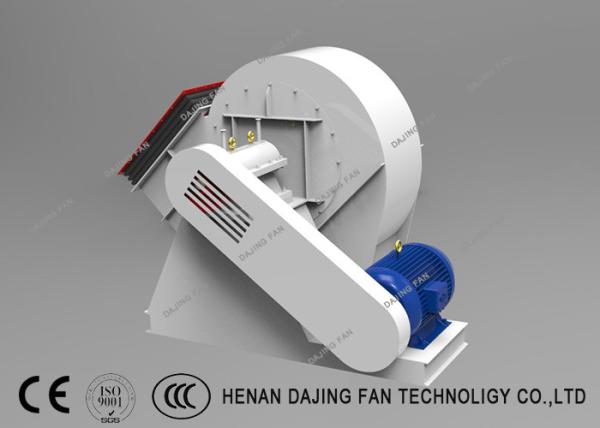

Stainless Steel Industrial Ventilation Fan Low Noise For Workshop Equipment

This series of centrifugal fans has high efficiency, low noise and stable performance curve. Mainly used for indoor ventilation, dehumidification and dust removal, etc. in factories and mines, stadiums, opera houses, basements, large and small hotels, restaurants, shopping malls and large buildings. It can also be used as a gas recycler with other types of machinery.

1. Impeller:
Consists of tilting circular arc thin plate blade, curve front plate and flat plate rear disc, all made of steel plate and corrected by static and dynamic balance, air performance is good, efficiency is high, noise is low, operation is stable. 3. 5 is composed of 12 leaves, 4. 5 is composed of 14 leaves, and more than 5 is composed of 16 pieces.
2. Housing:
Made into two different types, the 3-12 housing is integrated and can not be disassembled; the 14-20 housing is made into two open types, divided in two halves along the middle horizontal plane and connected by bolts.
3.Inlet:
Made into a whole, installed on one side of the fan, parallel to the axial section of the curve shape, can make the gas enter the impeller smoothly, and the loss is relatively small.
4.Transmission:
Consists of spindle, bearing box, rolling bearing and belt wheel.

DAJING Technical services has a huge experience in manufacturing Induce Draft and Force Draft Blowers. We are continuously supply the ID Fan and FD Fan boilers manufacturer along with OEM'S. We also supply to the end users and offer our consultancy in selection of appropriate ID Fans and FD Fans. Special Care is taken in manufacturing of the impeller (rotating part).

Provide the technical design and solutions

Designing and manufacturing of non-standard equipment

Supply accessories at any time

Tele-technical consulting and services

Other special technical service according to client’s requirements

Close follow-up of all orders and keep customers informed timely

Product quality and delivery time is strictly controlled

Centrifugal fan production process:

Case Show:
