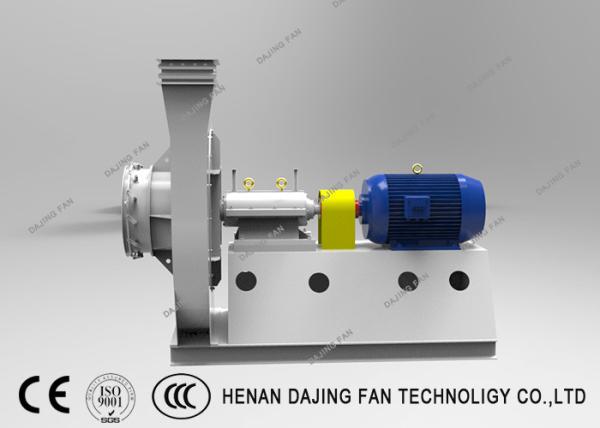

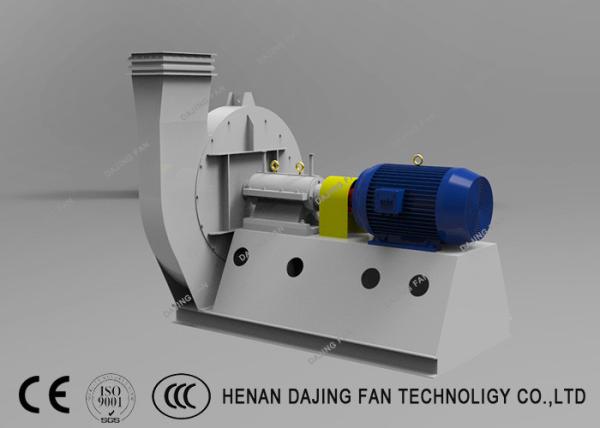

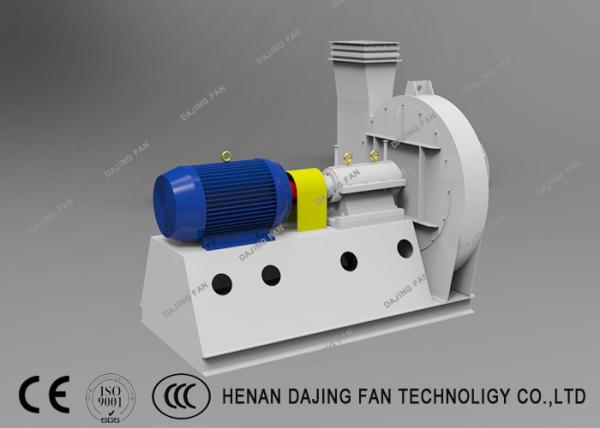

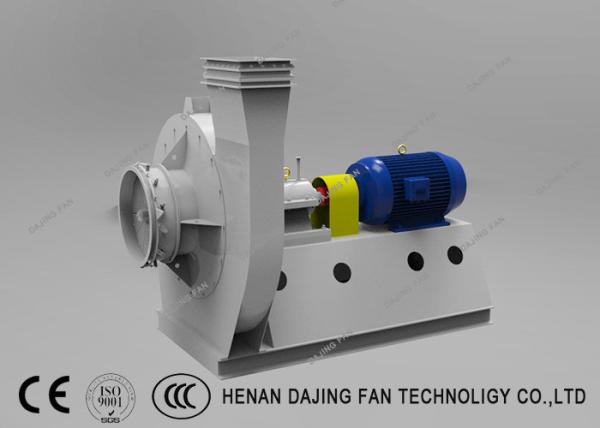

Forced Draft Fan High Pressure Blower Industrial Boiler Primary With Motor

The Model 9-19 and 9-26 high-pressure centrifugal fan is extensively applied to transmit materials. The transmission medium is air or other non-flammable gases, which are harmless to human. The medium does not contain any adhesive materials. The gas temperature is ≤80℃,and the dust and particle volume are ≤150mg/m3. It is generally suitable for enforced high pressure ventilation in such
industries as forging and smelting, glass, pottery, electroplating, battery and wireless sectors, etc. It is also used to deliver grain, fodder, ore powder, plastics, etc. in the processing industries. It is also suitable for the combined use with carton machinery and tempered glass equipment.

Advantages of 9-19, 9-26 High Pressure Centrifugal Blower
High strength wear-resistant impeller anti-leaking bearing box.
Transmission part group consists of main shaft, bearing box, rolling bearing, pulley or coupling, etc.
Inlet and outlet flexible joints, dampers.
Inlet valve, bearing temperature and vibration dective sensers, impeller cleaning nozzle are optional.
With single suction, backward of monoblock type blades impeller have good aerodynamic performance and reliability of smooth operation.

1. Super quiet sound, no noise: the motor runs directly, in the addition of the combination of the pin sound facilities, improved high pressure fan noise large image, thus to achieve the effect of quiet. Characteristics of all wind blower
High pressure, large air volume, low noise, light weight.
2.The motor is a fully closed external fan aluminum frame motor with special shaft design, which can be used for a long time.
3. Special blade design, high pressure, large air volume, low noise and long life.
4. Special air volume control throttle, high air volume control, easy operation.
5. Styles are complete, and the stock is more!

Centrifugal fan production process:

Case Show:
