Secondary High Pressure Air Fan Industrial Boiler Blower Direct Drive 30kw
Secondary High Pressure Air Fan Industrial Boiler Blower Direct Drive 30kw
Secondary High Pressure Air Fan Industrial Boiler Blower Direct Drive 30kw
Secondary High Pressure Air Fan Industrial Boiler Blower Direct Drive 30kw
Specifications
Brand Name :
DAJING
Model Number :
9-19-A
Certification :
CE/ISO9001/3C
Place of Origin :
HENAN PROVINCE, CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 sets per month
Delivery Time :
10-60 days
Packaging Details :
Packed in wooden box, rainproof cloth, container, according to customer requirements.
Phase :
3-phase
Voltage :
220v,380v,460v,6kv,10kv
Drive :
Direct Connection
Usage :
Blowing Air
Impeller :
Forward Impeller Blade
Warranty :
1 year
Description

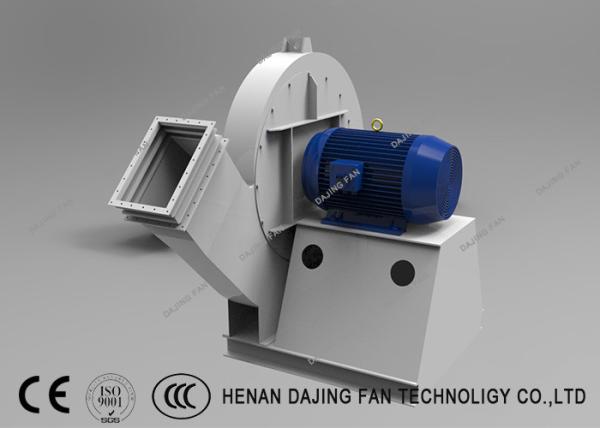

Secondary Air High Pressure Fan Industrial Boiler Blower Direct Drive 30kw

The Model 9-19 and 9-26 high-pressure centrifugal fan is extensively applied to transmit materials. The transmission medium is air or other non-flammable gases, which are harmless to human. It is generally suitable for enforced high pressure ventilation in such industries as forging and smelting, glass, pottery, electroplating, battery and wireless sectors, etc. It is also used to deliver grain, fodder, ore powder, plastics, etc. in the processing industries. It is also suitable for the combined use with carton machinery and tempered glass equipment.

Secondary Air High Pressure Fan Industrial Boiler Blower Direct Drive 30kw
Centrifugal fan Air Flow 6000~41500 m3/h
Pressure 3500~1500 Pa
Rotating speed 2900/1450/960 r/min
Material Carbon steel
Motor Power 7.5~410 kw
Voltage 220/380/440/6000/6600 v
Frequency 50/60 hz

Characteristic:
1) Strong cast iron fan of body and blades
2) Whole fan body with powder coating and plating blades
3) High quality IP54 motor with cast iron body and pure copper wire
4) Good looking surface, long working life and stable performance

Application:
Widely use in fire control, smoke extraction and ventilation ,such as metro,tunnel, gym,high-rise building, underground store, workshop and oven.

Centrifugal Fan/Blower is used in various industries for a wide range of applications. At Dajing fan, we design & manufacture the product range keeping in mind the diverse application requirements in the market. The applications are as below:

For Central Air Conditioning System.
For Humidification System.
For Central Air Washer Plant.
For Air Cooling System.
For Ventilation System.
For Exhaust Plant System.
For Air Pressurization System.
For Any Fresh Air OR Return Air/Exhaust Application.

Centrifugal fan production process:

Case Show:
