Induced Draught Cement Fan High Air Flow Oven Wall Cooling Backward Blade
Induced Draught Cement Fan High Air Flow Oven Wall Cooling Backward Blade
Induced Draught Cement Fan High Air Flow Oven Wall Cooling Backward Blade
Induced Draught Cement Fan High Air Flow Oven Wall Cooling Backward Blade
Induced Draught Cement Fan High Air Flow Oven Wall Cooling Backward Blade
Induced Draught Cement Fan High Air Flow Oven Wall Cooling Backward Blade
Induced Draught Cement Fan High Air Flow Oven Wall Cooling Backward Blade
Induced Draught Cement Fan High Air Flow Oven Wall Cooling Backward Blade
Induced Draught Cement Fan High Air Flow Oven Wall Cooling Backward Blade
Induced Draught Cement Fan High Air Flow Oven Wall Cooling Backward Blade
Specifications
Brand Name :
DAJING
Model Number :
4-73D
Certification :
CE/ISO9001/3C
Place of Origin :
HENAN PROVINCE, CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
600 sets per month
Delivery Time :
10-60 days
Packaging Details :
Packed in wooden box, rainproof cloth, container, according to customer requirements.
Application :
Induced Draught Cement Fan
Material :
Cast Iron
Type :
Centrifugal Blower
Bearing :
FAG, SKF, ZWZ, C&U
Drive :
Coupling Connection
Usage :
Blowing Air
Description

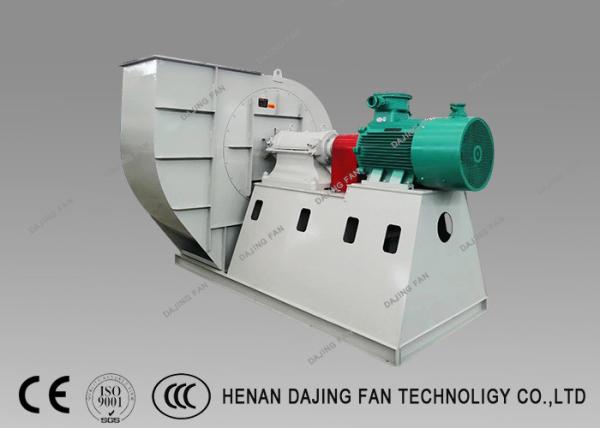

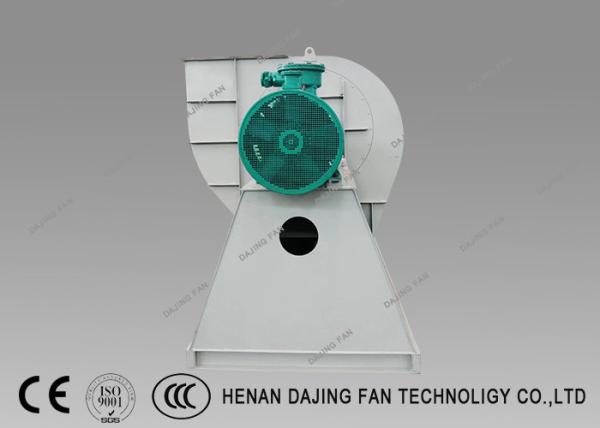

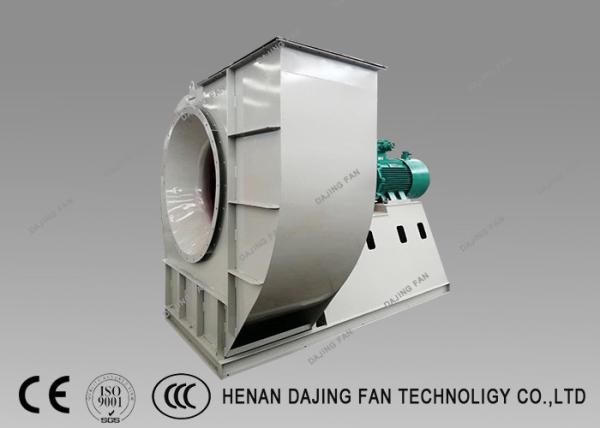

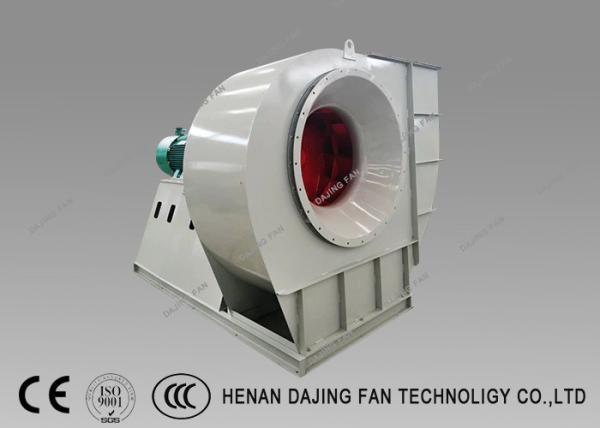

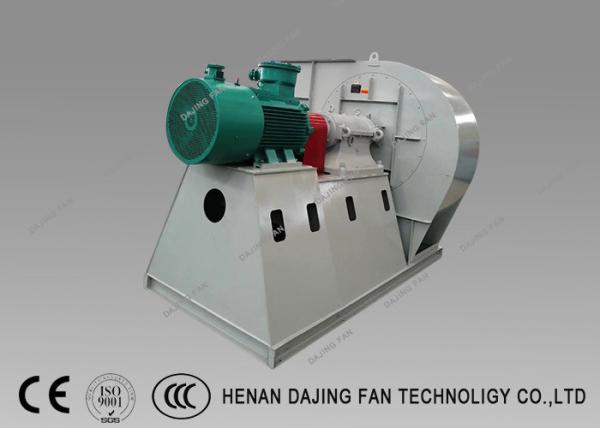

Induced Draught Cement Fan High Air Flow Oven Wall Cooling Backward Blade

4-73 series boiler centrifugal fans are applicable to industrial boiler that burns a variety of media and equipped with devices to reduce smoke and dust. The conveying gas temp 250°C. The drive means of this fan has C-type and D-type two kinds with water-cool, bearing base and air volume regulating door, If a de-oscillator is chosen, the user can lace the fan in the concrete plane. It is easy to install and debug with noneed for the bolt. Our company can provide the stainless steel heat boiler centrifugal blower when the temperature of air must exceed 250 °C.

Induced Draught Cement Fan High Air Flow Oven Wall Cooling Backward Blade
Centrifugal fan Air Flow 8000~50000 m3/h
Pressure 900~3400 Pa
Rotating speed 2900/1450/960/730 r/min
Material Carbon steel
Motor Power 4~55 kw
Voltage 220/380/440/6000/6600 v
Frequency 50/60 hz

1. For transport gerneral gas, the gas should not contain any sticky substances, which the dust or solid particles should less than 100mg/m3.

2. For equipments or system of filtration & drying, fume hood & spray booth, paiting room,food processing , kitchen room and so on.

3. Ventilation (supply or exhaust) system and industrial(HVAC) applications where moderate capacities at low pressures are required such as building, air-conditioning,firfighting, air circulation orcooling and so on.

Centrifugal fan production process:

Case Show:

FAQ

Q1: What information do you need to select the suitable fan model?
A: Air flow, total pressure or static pressure, voltage, working condition.

Q2: Can I have a sample order ?
A: Yes, after price confirmation, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q3: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.

Q4: Can I use my own LOGO design on goods?
A: Yes, customized logo and design on mass products are available.(It can’t constitute infringement)
