380v 50hz Fiberglass Centrifugal Fan Explosion Proof Motor Energy Saving
380v 50hz Fiberglass Centrifugal Fan Explosion Proof Motor Energy Saving
380v 50hz Fiberglass Centrifugal Fan Explosion Proof Motor Energy Saving
380v 50hz Fiberglass Centrifugal Fan Explosion Proof Motor Energy Saving
380v 50hz Fiberglass Centrifugal Fan Explosion Proof Motor Energy Saving
380v 50hz Fiberglass Centrifugal Fan Explosion Proof Motor Energy Saving
Specifications
Brand Name :
DAJING
Model Number :
4-73A
Certification :
CE/ISO9001/3C
Place of Origin :
HENAN PROVINCE, CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
800 sets per month
Delivery Time :
10-60 days
Packaging Details :
Packed in wooden box, rainproof cloth, container, according to customer requirements.
Blade Material :
FRP
Electric Current Type :
AC
Voltage :
220v,380v,460v
Feature :
Anti-corrosion
Warranty :
1 year
Drive :
Direct Connection
Description

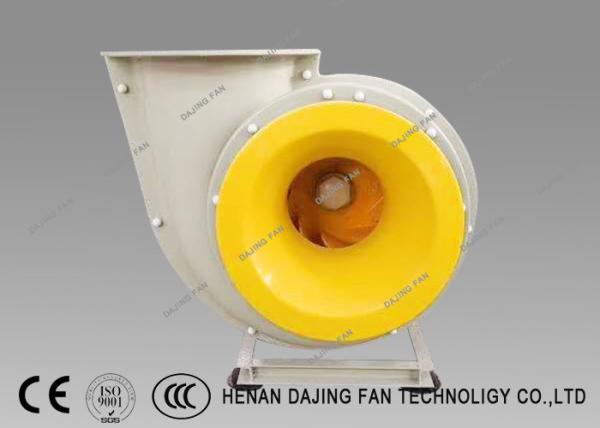

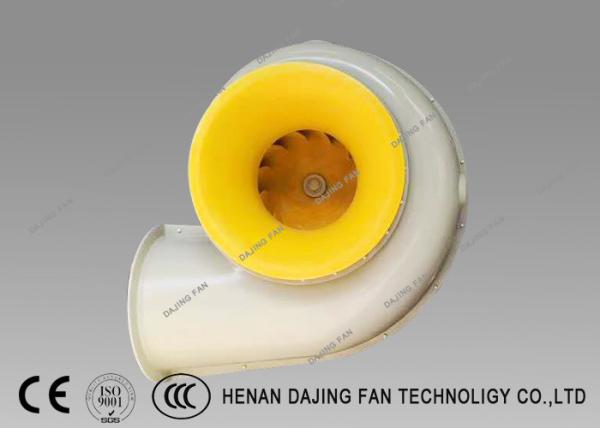

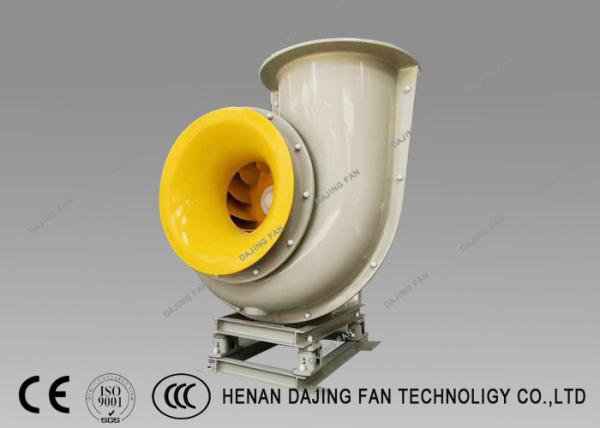

380v 50hz FRP Centrifugal Fan Explosion-Proof Motor Energy Saving

The fan is made of polyester glass fiber reinforced plastic. The centrifugal fan is a new type of anti-corrosion fan with the characteristics of high strength, light weight, good corrosion resistance, not easy aging, low noise, multiple specifications and many applications. The fan is suitable for discharging corrosive gas with a certain concentration, and can also be used as general building ventilation for ventilation.

380v 50hz FRP Centrifugal Fan Explosion-Proof Motor Energy Saving
Centrifugal fan Air Flow 600~15000 m3/h
Pressure 240~3500 Pa
Rotating speed 2900/1450 r/min
Material FRP
Motor Power 0.55~7.5 kw
Voltage 220/380/440 v
Frequency 50/60 hz

1. Introduction:
Frp Centrifugal Fan, the bending strength of not less than 196Mpa, each section with smooth, smooth surface, no cracks, gaps, burrs and other defects, the overall effect is good, the fan to do static balance test, according to the "balance precision" rigid rotor, grade G6.3 level, from the cylinder wall gap 30mm tip and the error is no more than 10mm, the fan aerodynamic reasonable, large volume, low noise, high efficiency, corrosion resistance.

2. Feature:

Fan volute internal, motor shaft all have strictl anticorrosive function;
The product has a high temperature resistance of 80 degrees and is suitable for ventilation of various acid, alkaline and organic gases.

Centrifugal fan production process:

Case Show:
