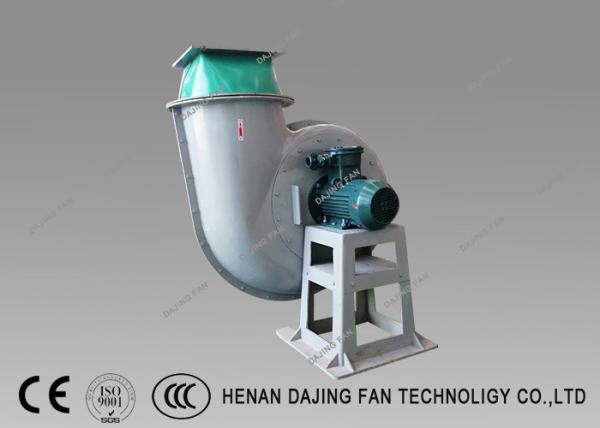

Fiberglass Reinforced Plastic FRP Centrifugal Fans And Blowers Solid Reliability
Fiberglass Reinforced Plastic FRP Centrifugal Fans And Blowers Solid Reliability
Fiberglass Reinforced Plastic FRP Centrifugal Fans And Blowers Solid Reliability
Fiberglass Reinforced Plastic FRP Centrifugal Fans And Blowers Solid Reliability
Fiberglass Reinforced Plastic FRP Centrifugal Fans And Blowers Solid Reliability
Fiberglass Reinforced Plastic FRP Centrifugal Fans And Blowers Solid Reliability
Specifications
Brand Name :
DAJING
Model Number :
4-73A
Certification :
CE/ISO9001/3C
Place of Origin :
HENAN PROVINCE, CHINA
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
800 sets per month
Delivery Time :
10-60 days
Packaging Details :
Packed in wooden box, rainproof cloth, container, according to customer requirements.
Material :
Fiberglass Reinforced Plastic
Drive :
Direct Connection
Frequency :
50hz/60hz
Type :
Centrifugal Fan
Electric Current Type :
AC
Application :
Exhaust Ventilation
Description

Fiberglass Reinforced Plastic FRP Centrifugal Fans And Blowers Solid Reliability

The fan is made of polyester glass fiber reinforced plastic. The centrifugal fan is a new type of anti-corrosion fan with the characteristics of high strength, light weight, good corrosion resistance, not easy aging, low noise, multiple specifications and many applications. The fan is suitable for discharging corrosive gas with a certain concentration, and can also be used as general building ventilation for ventilation.

Fiberglass Reinforced Plastic FRP Centrifugal Fans And Blowers Solid Reliability
Centrifugal fan Air Flow 600~15000 m3/h
Pressure 240~3500 Pa
Rotating speed 2900/1450 r/min
Material FRP
Motor Power 0.55~7.5 kw
Voltage 220/380/440 v
Frequency 50/60 hz

Main Features

FRP explosion-proof centrifugal fan
We supplies you with ideal specialized explosion-proof centrifugal fan with its proven expertise. Based on sound performance, international standardized design and specification, perspective design concept, humanized maintenance and considerate after service, we are launching the cutting-edge FRP series explosion-proof centrifugal fan featured with high efficiency, low energy consumption, low noise and low vibration, which is your best choice.

The temperature of the medium is no more than 50ºC normally

(The maximum temperature does not exceed 80ºC),

dust and hard particle contained is not more than 150mg/m³.

Design of backward curved wheel
The fan adopts advanced technology. Design of backward curved centrifugal wheel is optimized by means of CFD hydro-field simulating. The blade section of the backward curved wheel is a curve with a certain radian. The included angle between airflow direction and the linear speed direction of the blade is an obtuse angle. The design is more accordant with the aerodynamic characteristics, and has lower noise, and stable airflow.

Centrifugal fan production process:

Case Show:
