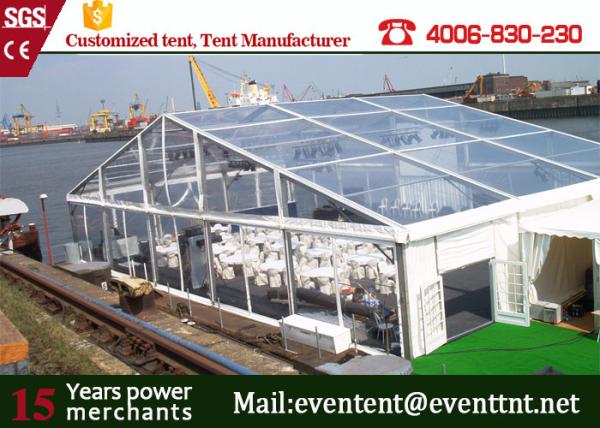

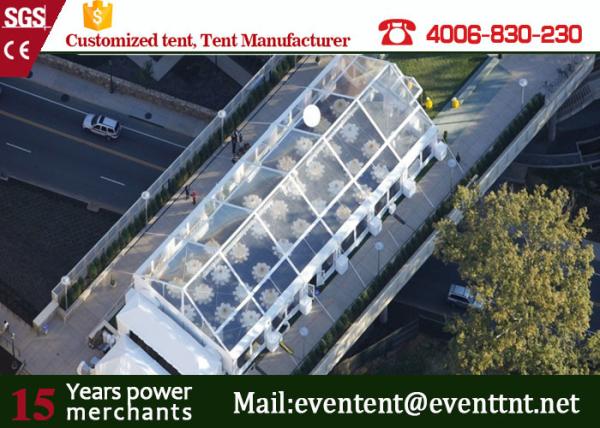

clear span width 12m a frame tent with decoration for trade show tent

Quick detail:

1. Size: 12x12m
2. Eave height: 4m
3. Main frame structure: hard pressed extruded aluminum alloy T6061 / T6
4. Fabric cover: PVC coated polyster fabric.
5. Steel parts: hot dip galvanized
6. Wind load: 100 km / h
7. Snow load: 750kg / sqm
8. Life time: 15 years

A frame tent series:

Discription

1 . Fabric cover : 850g/sqm block-out white PVC for roof , 650g / sqm translucent white PVC for side walls , PVC coated polyster fabric , color optional . 100 % waterproof , fire retardant ( DIN4102 B1 , M2) , CFM , UV resistant , tear resistant , self - cleaning ability . Besides PVC coated polyster fabric , the fabric cover can be transparent PVC , TPU or mixed together to make the outdoor warehouse tents in different design and styles .

2 . Base : Hot dip galvanized steel parts, and used to connect the frame and ground . On concrete floor , we use expansion screws to fix the bases with floor . On soft ground ( grass ground mud ground ) , we use big steel nails ( anchor ) to fix the bases with ground . On undistructible ground ( marble , asphalt ground etc ) , we use weight plate system to fix the bases with ground .

3 . Main frame structure : hard pressed extruded anodized aluminum alloy T6061 / T6, European standard, Even more harder than normal aluminum alloy. With anodized, the aluminum will not be oxidated and the color will be always new for long time.

4 . Transparent PVC window : for optional, be welded with side wall fabric, European style. It's for lighting only, can't be opened.

5 . Ventilation window : square roll up windows , with mosquito net , waterproof . When raining or in winter , You are able to close the windows to stop rain and wind go inside . When in summer , You can open the windows for air circulation . There is mosquito net inside , no insect can go into the outdoor warehouse tent .

6 . Sidewall : PVC coated polyester fabric, glass wall, ABS hard wall for optional according to different usage. PVC coated polyester fabric cost is low, but easy to install & dismantle, easy to use. Glass wall is expensive, but looks luxury. ABS hard wall is fire resistant, and can be protect the personal privacy.

7 . Door : PVC coated polyester zip sliding door, glass door, metal doors as optional.

8 . Accessory : there are many accessories for optional , such as insulation lining , decoration lining , ventilation , solar power , floor system , fireplace , furniture etc . Price is competitive .

9 . Packing : the structure & fabric cover are packed separately . The structure is wrapped in PVC film . The fabric cover is packed in pallet .

10 . Installation : the tent is fixed by bolts and nuts . the tent can be fixed with ground through bases by different ways .

Applications

1. sports : after make enough ventilation holes and windows on the tents , the large outdoor warehouse tent can be used as gymnasium . the space is big and no posts inside , can make use of 100 % space . Many persons do sports inside the tent , must make sure the air circulation , make sure enough fresh air inside .

2. Wedding party : we can design the large outdoor warehouse tents into many style according to the wedding party theme . To make the large outdoor warehouse tent suite the different style wedding , different types of party and make the party full of happy atmosphere .

3. Hotel : after equiped with insulation lining , decoration lining , floor system , furniture etc , the large outdoor warehouse tent can be used as a comfortable outdoor hotel . Large ourdoor warehouse tent is special with its shape and style , it can be attracted the eyes of everyone who will see it .

4. Trade show : as the large outdoor warehouse tent has no posts inside , can make use of 100 % space , can set many trade booths inside the tent .

Competitive advanges

1. Specialized in producing ourdoor warehouse tent ; ourdoor warehouse tent is our main product . We specialized in producing any style dome tent , especially big size dome tent .

2. Leading advanced technology ; In China , we have the leading advanced outdoor warehouse tent technology , skill to produce high quality low price dome tent . the dome the size we can produce is from diameter 4m to diameter 80m .

3. Short delivery time ; we can finish the production within 20 to 30 days, even if it is a large outdoor warehouse tent .

4. Long vitality : Structural steel elements are made according to DIN 1615;1984 standards, secured by anti-corrosion coating, hot dip galvanized (also from the inside), so that steel construction is not susceptible to unfavorable weather conditions and provides a much longer lifespan.

5. Good after sales service; we can supply easy understanding assemble instruction and drawing for you to instal the tent . if needed , we also can send one technician to guide the installation FOR FREE . but you need to cover the cost of visa , round trip airtickets , accommodation , food and other expense that happen during the installation .
