Specifications
Brand Name :
Eachinled
Model Number :
P3.91
Certification :
CE Rohs IOS9001
Place of Origin :
China
MOQ :
2 square meters
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000 Square meters Per Month
Delivery Time :
15 work days
Packaging Details :
Wooden Case or Flight Case/Road Case
Display Function :
indoor Rental LED Screen
Weight Of Cabinet :
13kg
Driving Method :
1/16 Scan
Power Supply :
110-240volt/50hz
Cabinet Material :
Die Casting Aluminum
Cabinet Size :
500 mm* 1000 mm
Brightness :
1000 Nit Per Square Meters
Description

P3.91 Indoor Event Rental LED Display Screen

1. The screen could be hung up for different kinds of event. And it also could be put on the floor as dance floor.야외스크린

2. The screen could be both curved design and regular straight design.방수스크린

3. The bottom modules on the cabinet are about 5mm off the round. So they will not be hit when we put the cabinets on the ground. This feature greatly protects the LEDs during assembly and disassembly.방수전광판

4. The cabinet is with strong rack, which could be used as a ladder to climb up for maintenance.LED스크린

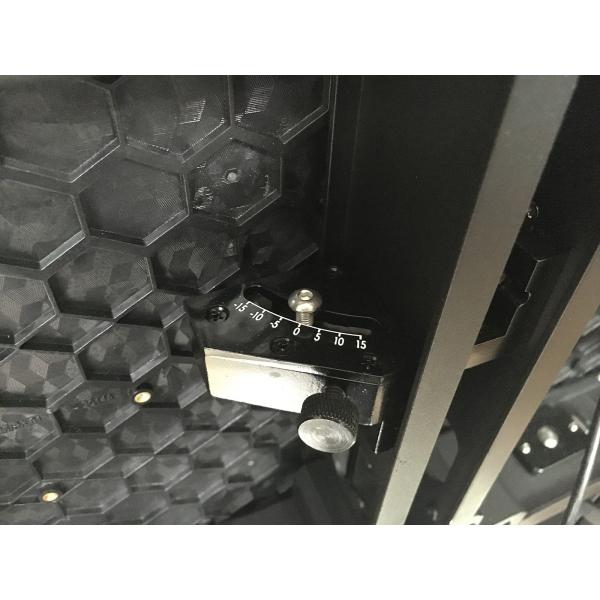

5. Only 2 steps to lock the cabinets together. And the lock is with Anti-release design which makes it more secure.대형LED

6. Ultra slim to 65mm, all together 145mm for the whole screen (supporting structure included), perfectly embedding into a wall.견적문의환영

7. Ultra viewing experience guaranteed by high definition, module dot by dot calibration and high gray level under low brightness to fit high-end hotel ballroom, church and class use,retail stores, airport etc.유니루민 엘이디전광판 스크린

Technical Specification:

Items Parameter
Pixel Pitch PH3.9mm PH4.8mm
Module Resolution(W*H) 256(W)*128(H) 104(W)*208(H)
Pixel Configuration 1R1G1B(in 3 n 1)
LED Encapsulation Black SMD 2121 Black SMD 3528
Pixel Density 65536 Pixel /m2 43264 Pixel /m2
Driving Method 1/16 Scan 1/13 Scan
Refresh Frequency ≥1880Hz
Driver IC Special constant current IC with high refresh rate & high grey scale
Grey Scale 14Bit(depending on the system and IC configuration)
Cabinet Size 500*1000mm
White balance Brightness ≥900cd/ m2 ≥900cd/ m2
Color Temperature 8000K±500(adjustable)
Viewing Angle Horizontal 140° Vertical 120°
Optimal Viewing Distance >4m >5m
Working Voltage AC 220V/110V±10%
Module voltage DC4.2V
Max Power Consumption 250W/PCS 250W/PCS
Avg.Power Consumption 130W/PCS 125W/PCS
Lifetime 50000 hours
Operating Temperature –10℃~65℃
Net weight 13Kg/pcs

13Kg/pcs

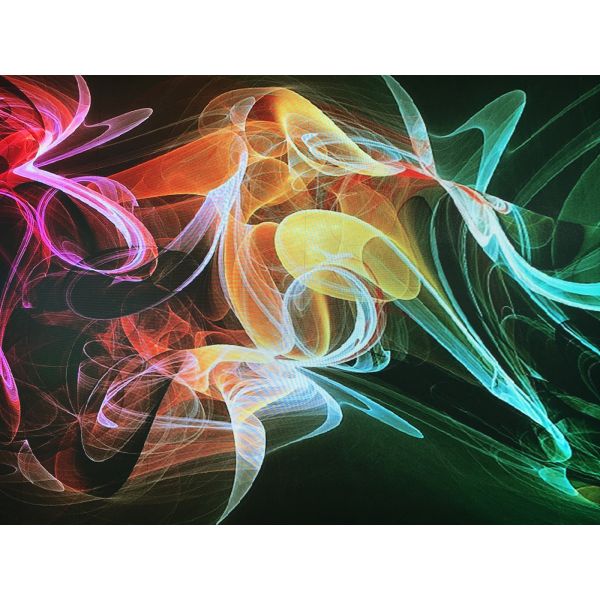

Detail Product Pictures:

High Reliability P3.91 Full Color SMD Mini Led Display Screen Bus Van Car Usage

High Reliability P3.91 Full Color SMD Mini Led Display Screen Bus Van Car Usage





FAQ:

Q1: What's the pixel pitch for Indoor LED Display Screen ?LED전광판
A1: Indoor&Outdoor P2.5mm/P2.9mm/P3mm/P3.75mm/4mm/5mm/P6mm/P4.8mm/P5.33/P6mm)

Q2: Where is it used for?교회스크린
A2: Indoor & Outdoor rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.

Q3: Can it play HD video?대형스크린
A3: Yes, it can realize HD video function with Novastar And Linsn controlling system.

Q4: What's the controlling system?대형전광판
A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.

Q5: How about the size of project?차량용LED
A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
