Specifications
Brand Name :
Eachinled Optoelectronics
Model Number :
P2.9
Certification :
ROHS CE
Place of Origin :
Shenzhen China
MOQ :
8 square meters
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000 Square meters Per Month
Delivery Time :
15 Days
Packaging Details :
Wooden Case and Flight Case/Road Case
Gray :
3000hz
Display Function :
HD Video LED Display
Weight of Cabinet :
4.8kg
LED Video Processor :
LED-550D With SDI,HDMI,DVI,AV etc
Driving Method: :
1/30 Scan
IC :
MBI5124
Power Supply :
Thin and energy saving
Cabinet Material :
Die Casting Aluminum
Brightness :
1000 nit per square meters
Cabinet Size :
400X300MMX50MM
Screen Size :
4x3m or more bigger as you need
Description

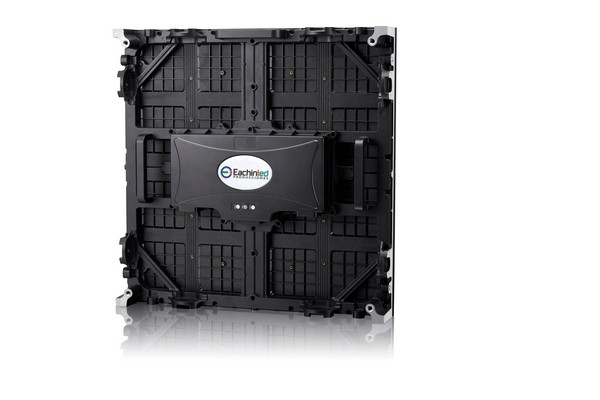

Lightweight Rental Illuminated Indoor Led Video Wall Screen / Panel High Refresh Rate

Lightweight:


The die-casting aluminum technology makes the single cabinet as light as 4.8KG,which is convenient for assembly and transportation.
Seamless connection:
With the high-precision CNCprocession,makes the precision the precision reach ±0.05mm so as to achieve seamless assembly.
Low power consumption:
Combined with the brightness auto-adjusting technology and PFC power supply,low current can save energy over 35%,which in other words is to save money .
Easy to maintain:
No need to disassemble the shile screen for maintenance.Each component can be detached individually for that purpose.
Noiseless:
The aluminum structure requires no fan.Combined with the noiseless power supply,the cabinet is totally silent.
Ghost canceling:
Exquisite and clear pict quality with no ghost.Both upstream and downstream ghosts can be automatically canceled.
Hight refresh rate:
Over 2880Hz refresh rate to ensure the picture wrinkle-less,line-less and stable.
Low brightness and Hight gray scale:14Bit-16Bit gray scale to bring excellent performance when brightness is reduced to 20%.
Application:
Widely applied to TV Station,concert,entertainment shows,Stage,wedding,conferences and other indoor events rental business.
Technical Specification:

P2.9 stage background indoor led display

Model Number P2.9
Description Die-casting Aluminum cabinets with hanging function
Application Indoor use, AV rental
Pixel configuration SMD1514 black led
Pixel pitch 2.9mm
Cabinet pixel resolution W 172 x H 172pixels
Cabinet dimension W: 500mm, H: 500mm, T: 70mm
Module size W: 250mm, H: 250mm
Module pixel resolution W 86 x H 86pixels
Pixel density 118,336 dots/sqm
Minimum viewing distance 3m
Brightness 1,350nits
Grey scale 16384 steps
Color Number 68.7194billion
Display Mode Synchronous with video source
Data refresh rate ≥2880HZ
Driver IC SUM2017
LED drive 1/15 scanning, constant current
Control system type Novastar
Control software name Nova studio
Viewing angle Vertical 140° Horizontal 140°
Temperature range -20℃ to +60℃
Ambient Humidity 10%-99%
Service access Rear
Cabinet weight 7kg(0.5 x 0.5m)
Power Consumption Max: 130 w/cabinet; Average : 65w/cabinet
Protection Level Front: IP43 Rear: IP43
Lifetime to 50% brightness 75,000hr
LED Failure Rate <0,00001(Led display line standard <0,0001)
MTBF > 100.000 hours
Input power cable AC110V to 220V
Signal input DVI
Certification CE, ROHS, FCC marked
Warranty

2 Years quality warranty


Lightweight Rental Illuminated Indoor Led Video Wall Screen / Panel High Refresh Rate
Lightweight Rental Illuminated Indoor Led Video Wall Screen / Panel High Refresh Rate

FAQ
Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: Indoor P1.9mm/P2.5mmP2.9mm)
Q2: Where is it used for?
A2: Indoorrental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.


Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar And Linsn controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.


Advantage
We use Entire automatic equipment, so each month; we can up to 1000sqm,
In this case, the cost of purchase material is lower than others.
Good quality raw material
Mask: All designed by ourselves, using good PC material, not easy to deform
Convenient installation
We prepare a full-set installation manual and free training, which will make you easy to install and operate the screen.
Good after-sale service
two years warranty, lifetime maintain, During the warranty .lifetime maintain, During the warranty time, all broken parts caused by the quality problem could be replaced by us free of charge.
