HD P6 SMD3535 Gigant Outdoor Advertising LED Display Billboard , Exterior Pantalla Led Mexico
P6/P8/P10 outdoor led screen adopts physical and virtual pixel technology
which makes the picture more clear and vivid, no flicker and blind dots. The screen is manufactured in a waterproof and dustproof design so it can work very well in rain and sunshine. It can be assembled and disassembled very easy, and it is an ideal product for any kind advertisements.
It characterized by perfect vivid image, super brightness, high refresh rate, long life span and stable work, and waterproof, etc.
It is widely used in advertising, sports, industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places.
1. SMD leds with high brightness for outdoor;
2. Good color uniformity confirm the vivid images and video;
3. Cabinets Seamless splice;
4. Good heat dissipation;
5. Energy-saving to reduce cost;
6. Environment friendly;
7. Brightness self-regulation to avoid the light pollution;
8. Easy operation control system;
9. 2 years warranty at least;
10. Competitive price.
Pantalla Led de Exterior,de excelente calidad,
su fabricación dependerá de las necesidades de cada cliente.
Pantallas Led P10 P8 Publicidad Nuevas El Mejor Precio
Technical Specification:
Pitch/mm | P5 | P6 | P8 | P10 | P16 |
Module size/mm | 160x160 | 192x96 | 256x128 | 160x160 | 256x256 |
Density of pixel/(dots/m2) | 40,000 | 27,777 | 15,625 | 10,000 | 3,906 |
Pixel composition | SMD 3 in 1 | SMD 3 in 1 | 1R1G1B | 1R1G1B | 1R1G1B |
Led encapsulation | SMD2727 | SMD3535 | SMD3535 | DIP346/SMD3535 | DIP346 |
Optimum viewing distance | 5-16m | 6-20m | ≥6 | ≥10 | ≥15 |
View angle / ° | 140 H,120 V | 140 H,120 V | 140H,120V | 110 H,60 V | 110 H,60 V |
Average power consumption/W/M2 | 1,000 | 900 | 500 | 450 | 350 |
Size of cabinet/mm | 960X960 | 960X960 | 1024X768 | 960X960 | 1024X1024 |
Driving method | 1/8 scan constant current | 1/8 scan constant current | 1/4 scan constant current | 1/4 scan constant current | Static constant current |
Refresh rate Hz/S | ≥1200 | ≥1200 | ≥1200 | ≥1200 | ≥1200 |
Luminance of white balance | ≥7000 nits | ≥6500 nits | ≥6000 nits | ≥7000 nits | ≥7000 nits |
Operation of Environmental Temperature/℃ | below 30 to above 50 | ||||
IP rating | Front,IP65;Rear,IP43 | ||||
Working voltage | 110-220 VAC/+/- 10% | ||||
Brightness adjustment | 4096 levels of each color(manually),100 levels of each color(automatically) | ||||
Life span | >100,000h |

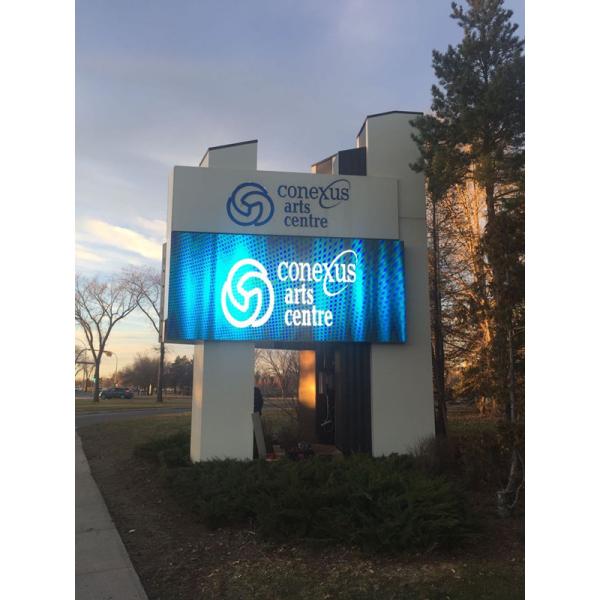

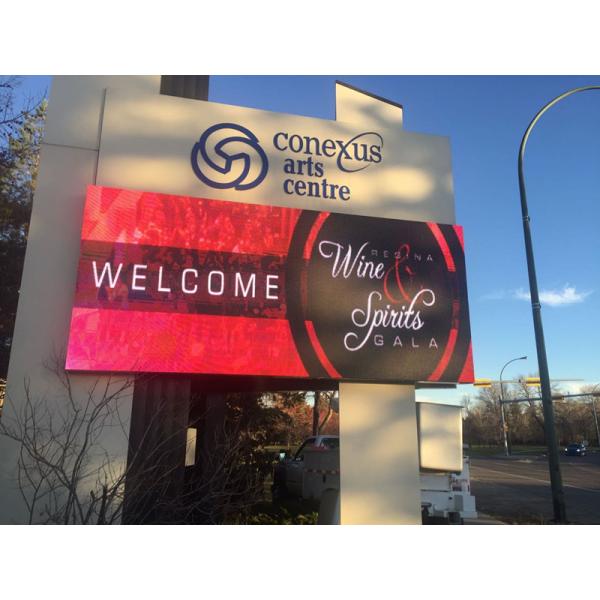

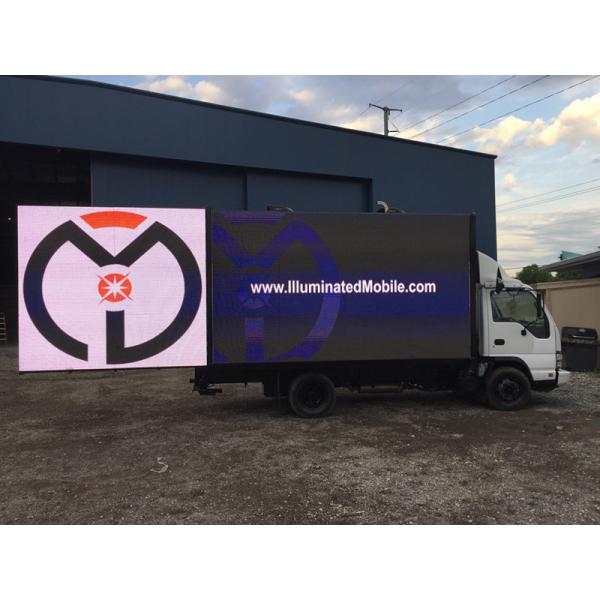

Project Application.
pantallas LED para Publicidad,espectáculos,
competiciones deportivas, exposiciones y demás eventos
FAQ
Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: Outdoor 5mm/6MM/8MM/10MM/16MM)
Q2: Where is it used for?
A2: Outdoor advertising use. Widely used for advertising business, station,sport, school, zoo, etc.
Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar Or Linsn controlling system.
Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.
Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
Our Service and Mission
Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.
In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.
After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
