Specifications
Brand Name :
Eachinled
Model Number :
P2.9 Led Video Wall
Certification :
CE,Rohs
Place of Origin :
China
MOQ :
6 square meters
Price :
negoation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 square meter one month
Delivery Time :
30 days
Packaging Details :
6 led panels in 1 flight case
Pixel Pitch :
2.9mm
Led Encapsulution :
SMD1515
Module Size :
250x250
Panel Pixel :
168x168
Panel Size :
500x500
Weight :
8.5kg/pcs
Description

Shenzhen Eachinled P2.9 Indoor Stage Led Screen

Carefully select each LED lamp,ensure the whole LED Screen operation stably with vivid colors.

With high quality and high contrast mask,effectively prevent accidental loss of LED Pixels.

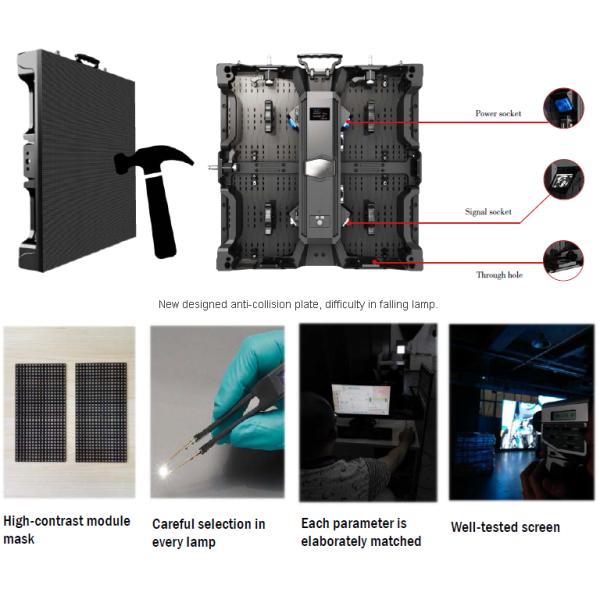

Upgraded version fast locks, more convenience for set-up and disassemble,faster and safer.

Hanging Beam and Ground Beam 2 in 1,solve uneven ground/floor situation once for all.

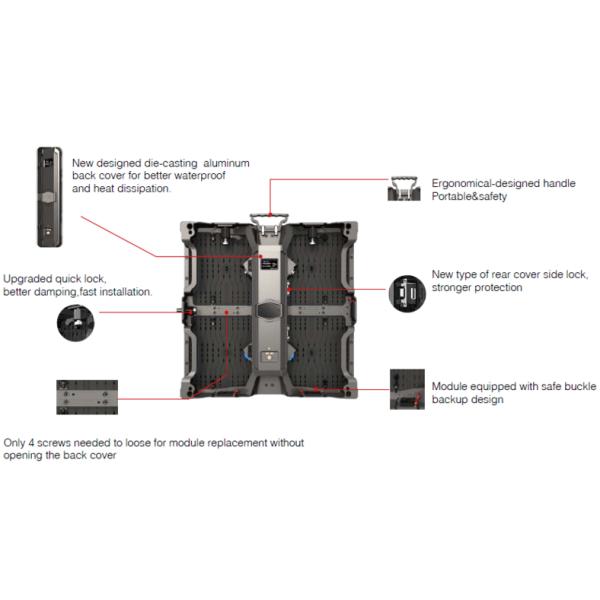

Only Four bolts on each module,can take down modules without opening rear cover to save more time.

Product Parameter:

Indoor Rental led screen specification
Pixel 2.97mm 3.91mm 4.81mm
LED Encapsulation SMD1515 SMD2121 SMD2121
Brightness 1100nit 1100nit 1100nit
Module Size(mm) 250x250 250x250/ 250×500 250×500/250x250
Cabinet Size 500x500x80 500×1000×80/500x500x80 500×1000×80/500x500x80
Material Die Casting Aluminum Die Casting Aluminum Die Casting Aluminum
Scan Method 1/14 Scan 1/16 Scan 1/13 Scan
Weight 8Kg 12.5Kg/ 8Kg 12.5Kg/ 8Kg
Cabinet Resolution 84x168/84x84dots 256x128dots / 128x128dots 104x208dots/104x104dots
Pixel Density 112896Pixel/㎡ 65536 Pixel/㎡ 43264 Pixel/㎡
Refresh Frequency ≥1920Hz
Viewing Angle 140/140 140/140 140/140
Working Voltage 110-220Volt/50/60hz 110-220Volt/50/60hz 110-220Volt/50/60hz
IP waterproof IP43 IP43 IP43
Optimal Viewing Distance ≥ 2m ≥ 3m ≥ 4m
Working Temperature -20~45 ℃ - 20~40℃ -20~45 ℃

IP43 SMD1515 / SMD2121 Stage LED Screen , P2.9 Indoor Led Rental Screen

IP43 SMD1515 / SMD2121 Stage LED Screen , P2.9 Indoor Led Rental Screen

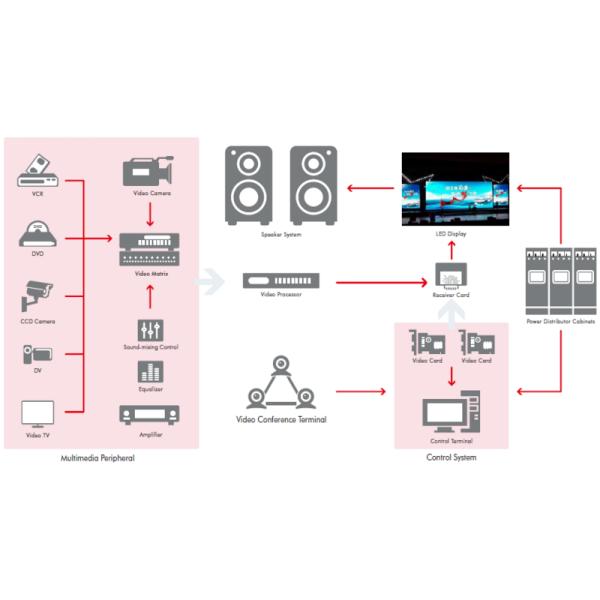

Topology Diagram

IP43 SMD1515 / SMD2121 Stage LED Screen , P2.9 Indoor Led Rental Screen

IP43 SMD1515 / SMD2121 Stage LED Screen , P2.9 Indoor Led Rental Screen

IP43 SMD1515 / SMD2121 Stage LED Screen , P2.9 Indoor Led Rental Screen

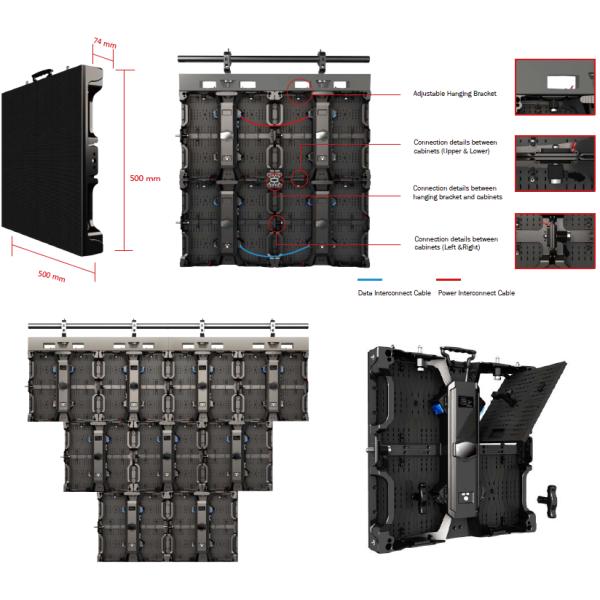

Installation Diagram

IP43 SMD1515 / SMD2121 Stage LED Screen , P2.9 Indoor Led Rental Screen

IP43 SMD1515 / SMD2121 Stage LED Screen , P2.9 Indoor Led Rental Screen

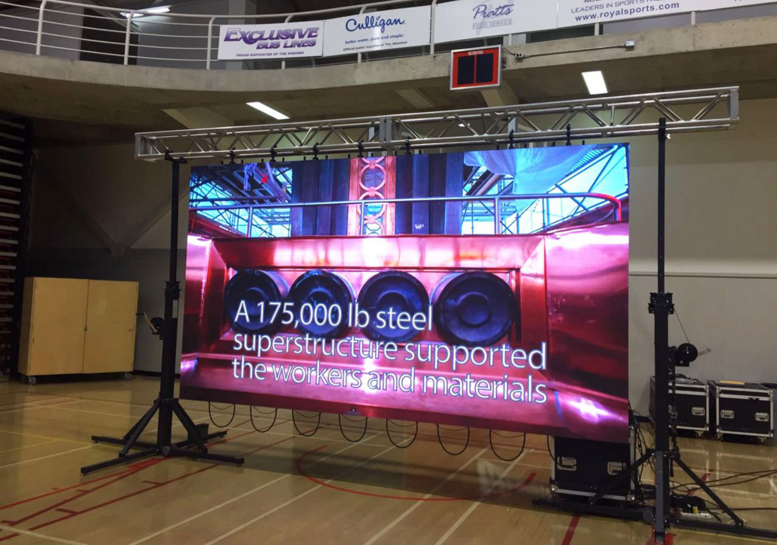

Indoor P2.97 Canada 4.5mx2.5m
