P2.97 SMD1515 Indoor Led Video Wall Rental LED Display Screen High Refresh Rate
P2.97 SMD1515 Indoor Led Video Wall Rental LED Display Screen High Refresh Rate
Specifications
Brand Name :
Eachinled
Model Number :
P2.97
Certification :
CE Rohs IOS9001
Place of Origin :
China
MOQ :
2 square meters
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 Square meters Per Month
Delivery Time :
30 days
Packaging Details :
Wooden Case or Flight Case/Road Case
Cabinet Size :
500mm*500mm*80mm
Display Function :
concert, stage, event, show
Power Supply :
110-240volt
Driving Method :
1/14 Scan
Weight Of Cabinet :
8kg
Brightness :
1000 CD Per Square Meters
Description

P2.97 SMD1515 Indoor Rental LED Display Screen Video Wall High Refresh Rate With MBI5153 IC

Product Description:

Indoor stage, TV studio, concert, theme park ,Stage Performance ,Live Events ,clubs, presentation ,concerts, festivals, , halls, shop windows or exhibitions ,conference ,Freestanding stage backdrops and other places for advertising and entertaining purposes.

1. High refresh rate can be reached 3840HZ. With the best quality IC, it can show you the perfect visual effect.

2. No need to disassemble the whole screen for maintenance. Each components can be detached individually for that purpose.

3. The Die casting aluminum cabinet makes the single cabinet as light as 8KG.

4. Specially designed masks can make the horizontal viewing angle up to 140 degrees.

5. The aluminum structure requires no fan. Combined with the noiseless power supply, the cabinet is totally silent.

6. Combined with the brightness auto-adjusting technology and PFC power supply, low current can save energy over 35%, it means to save 35% money.

Technical Specifications:

Small Pixel Outdoor LED Display
Module Pixel Pitch 2.97mm
Module size 250mmx250mm
Density of pixel/(dots/m2) 112896
Led encapsulation SMD1515
Resolution of module 84X84 dots
Main Optimum viewing distance 3m
View angle / ° 140 H,120 V
Max power consumption/W/M2 400
Size of cabinet/mm 500X500
Resolution of cabinet 168x168
Weight of cabinet/kg 8
Driving method 1/14 scan constant current
Refresh rate Hz/S ≥3840
Luminance of white balance ≥1000 nits
Waterproof rate IP43(front)/ IP43(back)
Working vlotage 110-220 VAC/+/- 10%
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system Novastar(sending card,receiving cards and Hubs)
Average of non-failure life >50,00h
Life span >100,000h
Functionaless dot rate

<0.01%

Detail Product Pictures:

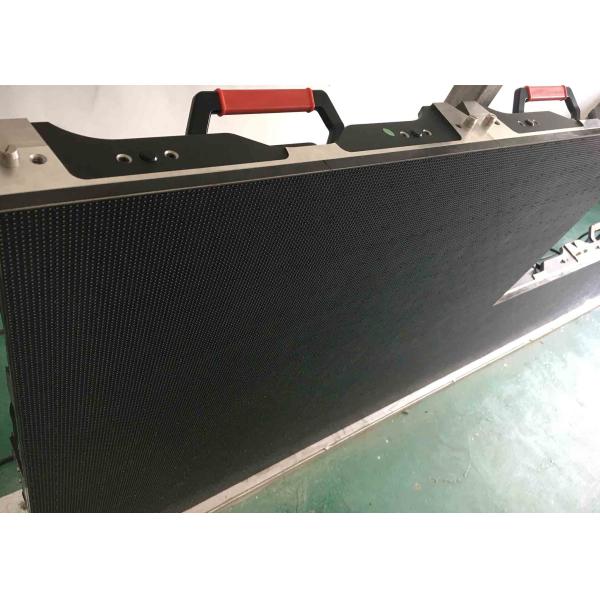

P2.97 SMD1515 Indoor Led Video Wall Rental LED Display Screen High Refresh Rate

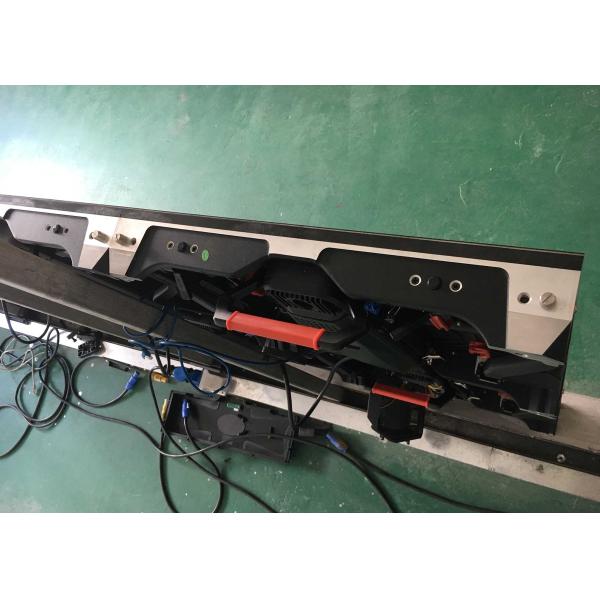

P2.97 SMD1515 Indoor Led Video Wall Rental LED Display Screen High Refresh Rate

FAQ:

Q1: Can the LED display screen work at corrosive gas environment?

A1: Please do not install the display in corrosive gas environment containing acid or base components, such as chemical warehouse.

Q2: Can the LED display screen work at electromagnetic radiation environment?

A2: Please do not install display when electromagnetic radiation and radio frequency radiation environment is over field strength 5V/m.

Q3: Can the LED display screen work when lightning?

A3: If necessary, users have to install surge switches in the distribution box and ground fault protection to avoid lightning strikes. Do not use the display in strong lightning and other severe weather.

Q4: Can the LED display screen display long time in one kind of color?

A4: Do not display a long time in a white, red, green, blue or other bright screen, because this will affect the display lifetime.

Q5: How long can the LED display screen display?

A5: LED display at least rest 2 hours a day. Normally turn on the screen at least twice a week or more (Especially in the rainy season it is necessary to turn on the display every day). And it maintains more than 2 hours every time.
