2018 New Design P3.9 Outdoor Rental LED Display For Festivals Concerts Events
Description:
1.moveable, mandatory, appropriateness, effectiveness, etc.
2.Program advantage. Homemade programs, instant playback, rich in content; just have ads, as well as programs, including topics, columns, variety, animation, radio, TV, commercials clearance program
3Location advantage: Mainly installed in shopping malls and other high traffic centralized location, including LED full color big screen is installed in a landmark location, its spread effect is more shocking, more mandatory. Edit this paragraph outdoor media advantages and disadvantages.
.
I-Series (small pixel pitch) Specification :
Pixel Pitch | 3.9mm |
Pixel Configuration | SMD1921 |
Module Resolution | 128*32dots |
Module Pixles | 4096dots |
Module Size | 500*125mm |
LED Cabinet Specification | |
Cabinet Size(W*H*D) | 500*500*70mm |
Cabinet Resolution | 128*128dots |
Module Quanity | 8pcs |
Cabinet Pixels | 16384dots |
Material | Die Casting Aluminum |
Brightness | ≥5000cd/m2 |
Pixel Density | 65536dots/m2 |
Driving Method | 1/16 scan constant current |
View Angle | 140H,120V |
Optimal Viewing Distance | ≥3 |
Brightness Control | Red,Green and Blue 4096 Grade/Each |
Fresh requency | ≥2000Hz |
Frame Frequency | 60Hz |
Input Voltage | AC100 - 120V/50Hz |
AC200 - 240V/50Hz | |
Defects Rate | ≤0.00001 |
Power Consumption | Max:160W/Cabinet Average:80W/Cabinet |
Screen weight | 8kg/Cabinet |
MTBF | >10,000 hours |
Life span | ≥100,000 hours |
Earth Leakage Current | <3mA |

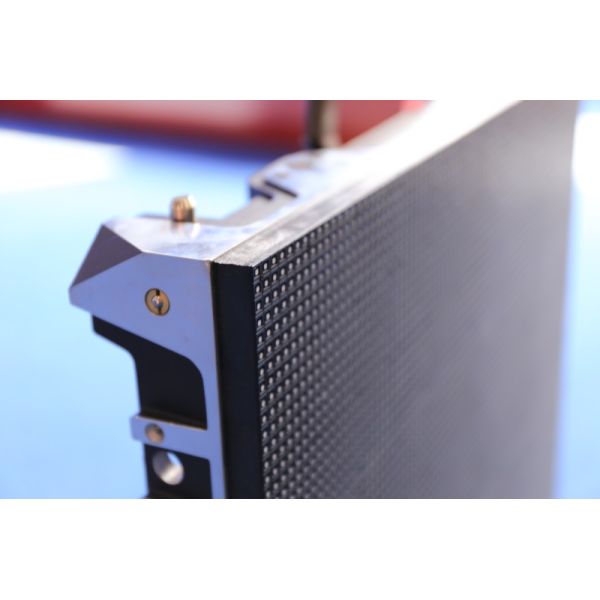

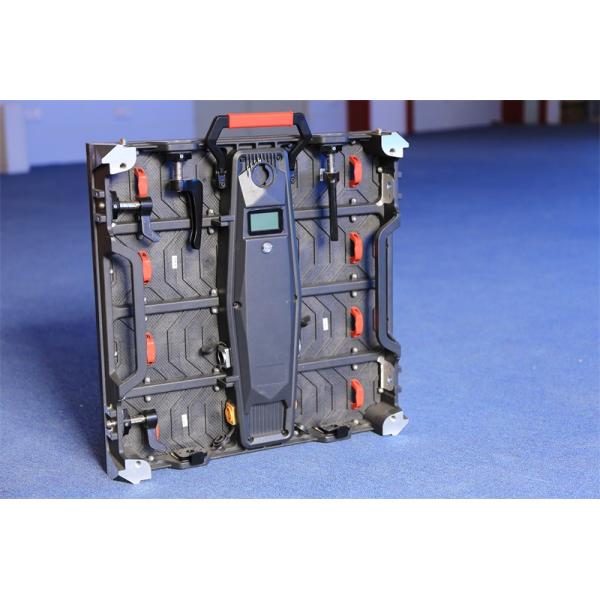

Product Photos:
Applications:

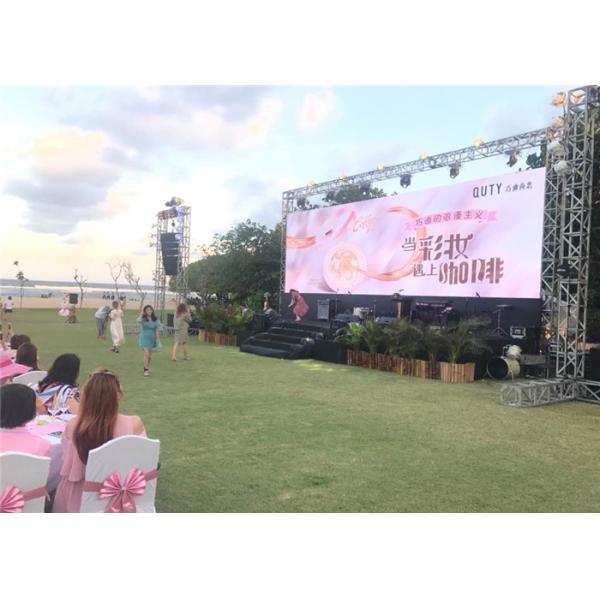

1. Festivals, Concerts, Graduations, Galas,broadcast, sports, entertainment and special event.
2.stage performances (indoor and outdoor), TV stations, concerts, theme parks, exhibitions, museums , conventions, stadiums, and trade shows.Outdoor Concerts and Entertainment Events
Our company's Strength.
WE CAN GIVE YOU A REASONABLE PROPOSAL NO MATTER YOU PLACE ORDER FROM US OR NOT!
So if you have requirement for LED screen, Do contact us for a proposal.
1)Training after order
After the order is placed, a processional training will be offered, including software use, operate safety, maintain equipment
2) Installation and debugging
Wecould send professionals to conduct on site installation and debugging in strict accordance with the requirements of the schemes and original manual.
3) Warranty
Warranty: 3 years warranty, lifetime maintenance
Equip with free spare parts. The first 2 years after shipment, we will be responsible for free maintenance if any problem caused by quality itself. While you should take the cost of the freight to us. After 2 years, service is still available, but would charge for labor, material and freight cost that generates.
4) Maintenance
Maintenance principles: response in time, solve problems asap and ensure the use.
Maintenance period: In the maintenance period of the led display body, free of all maintenance charges
After maintenance period, only charge the material cost and labor cost.
FAQ
Q1: How to install it after i received it?
A1: We will offer you the drawing to guide you for installation, we could also offer steel drawing, software set up drawing or photo or send our engineer fly to you for help if needed.
Q2: How long could i receive the inquiry reply?
A2: You will get a reply within 24 hours.
Q3: How is the after sales service?
A3 We have a professional team which is in all around the world, also a service hot-line dealing with your voice and feedback. We also offer 24-hour online service to help you solving problems.
Q4: How long is the guarantee period?
A4: All kinds of our LED display screen here we offer 2 years at least warranty.
