Specifications
Brand Name :
Eachinled
Model Number :
P2.97
Certification :
CE Rohs IOS9001
Place of Origin :
China
MOQ :
2 square meters
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 Square meters Per Month
Delivery Time :
30 days
Packaging Details :
Wooden Case or Flight Case/Road Case
rightness :
1200 CD Per Square Meters
IC :
MBI5153
Cabinet Material :
Die Casting Aluminum
eight Of Cabinet :
8kg
Cabinet Size :
500mm*500mm
Display Function :
concert, stage, event, show
Driving Method :
1/14 Scan
Description

2K 4K 8K Resolution 2.97mm Indoor Rental LED Display With SMD1515 Full Color Epistar Chip

Product Description:

1. fashionable and simple appearance; varied and comlete internal structure.

2. Use of Special heat dissipation structure make excellent heat dissipation, Quiet operation without fans.

3. Ultra-wide viewing angle give you the largest screen viewing area, SMD encapsulated leds ensure the wide view angle up to 140° both for horizontal and vertical.

4. Die-casting aluminum technology,together white the hight-percision CNC procession,makes the precision reach±0.05mm so as to achieve seamless assembly.

5. Die-cast aluminum cabinet design light and easy to transport, good flatness and seamless, makes the single cabinet as light as 8KG.

6. No need to disassemble the whole screen for maintenance. Each component can be detached individually for that purpose.

7. Exquisite and clear pict quality with no ghost. Both upstream and downstream ghosts can be automatically canceled.



Technical Specifications:

Small Pixel Outdoor LED Display
Module Pixel Pitch 2.97mm
Module size 250mmx250mm
Density of pixel/(dots/m2) 112896
Led encapsulation SMD1515
Resolution of module 84X84 dots
Main Optimum viewing distance 3m
View angle / ° 140 H,140 V
Max power consumption/W/M2 800
Size of cabinet/mm 500X500
Resolution of cabinet 168x168
Weight of cabinet/kg 8
Driving method 1/14 scan constant current
Refresh rate Hz/S ≥1920
Luminance of white balance ≥1200 nits
Waterproof rate IP43(front)/ IP43(back)
Working vlotage 110-220 VAC/+/- 10%
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system Novastar(sending card,receiving cards and Hubs)
Average of non-failure life >50,00h
Life span >100,000h
Functionaless dot rate

<0.0001

Detail Product Pictures:

2K 4K 8K Resolution 2.97mm Indoor Rental LED Display With SMD1515 Full Color Epistar Chip

2K 4K 8K Resolution 2.97mm Indoor Rental LED Display With SMD1515 Full Color Epistar Chip

FAQ:

Q1: What's the controlling system?
A1: The standard controlling system is Novastar. Also support Linsn too.


Q2: What's the pixel pitch for rental type LED Display Screen ?
A2: At Indoor&Outdoor P2.5mm/P2.9mm/P3mm/P3.75mm/4mm/4.81mm/5mm/5.95mm/P6mm)


Q3: Can it play HD video?
A3: Sure, it can realize HD video function with Novastar And Linsn controlling system.


Q4: How about the size of project?
A4: We need the size with "width by height" of your project, and then we wil provide you suitable solution. We will very appreciate it if you could send any drawing files or photograph of installation place.

Q5: Where is Rental LED display screen used for?

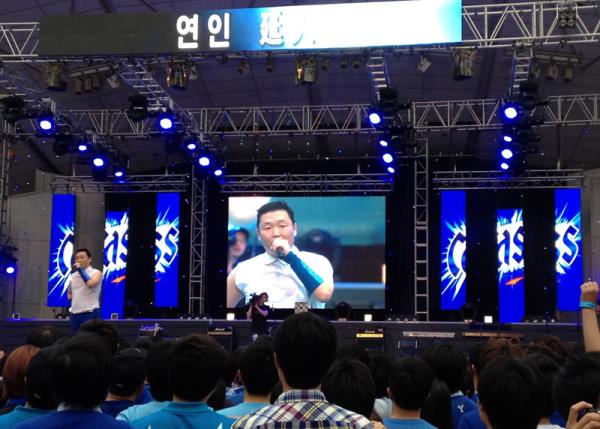

A5: For Indoor & Outdoor useage. Widely used for rental / hire business, backdrop of staging event, liveshow, concert, etc.
