Outdoor 4.8mm Concert Led Screens Rendering Full Color 500mm * 1000mm Cabinet
Outdoor 4.8mm Concert Led Screens Rendering Full Color 500mm * 1000mm Cabinet
Outdoor 4.8mm Concert Led Screens Rendering Full Color 500mm * 1000mm Cabinet
Outdoor 4.8mm Concert Led Screens Rendering Full Color 500mm * 1000mm Cabinet
Specifications
Brand Name :
Eachinled
Model Number :
P4.81
Certification :
CE Rohs IOS9001
Place of Origin :
China
MOQ :
2 square meters
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000 Square meters Per Month
Delivery Time :
20 days
Packaging Details :
Wooden Case or Flight Case/Road Case
Display Function :
outdoor Rental Stage LED Screen
Weight Of Cabinet :
8.5kg
Driving Method :
1/13 Scan
Power Supply :
110-240volt/50hz
Cabinet Material :
Die Casting Aluminum
Cabinet Size :
500 mm* 1000 mm
Brightness :
5000 Nit Per Square Meters
Description

Outdoor 4.8mm Concert Led Screens Rendering Full Color 500mm * 1000mm Cabinet

Product Description:

1. The screen could be hung up for different kinds of event. And it also could be put on the floor as dance floor.

2. The screen could be both curved design and regular straight design.

3. The bottom modules on the cabinet are about 5mm off the round. So they will not be hit when we put the cabinets on the ground. This feature greatly protects the LEDs during assembly and disassembly.

4. Adopt superior quality SMD 3 in 1 LED lamp, gorgeous color performance.

5. Only 2 steps to lock the cabinets together. And the lock is with Anti-release design which makes it more secure.



Technical Specifications:

Small Pixel Outdoor LED Display
Module Pitch/mm P4.81
Module size/mm 250x250
Density of pixel/(dots/m2) 43264
Led encapsulation SMD2727
Resolution of module 52X52
Main Optimum viewing distance 5m
View angle / ° 140 H,120 V
Max power consumption/W/M2 900
Size of cabinet/mm 500X1000
Resolution of cabinet 104x208
Weight of cabinet/kg 13
Driving method 1/13 scan constant current
Refresh rate Hz/S ≥1920
Luminance of white balance ≥5000 nits
Waterproof rate IP65(front)/ IP54(back)
Working vlotage 110-220 VAC/+/- 10%
Input signal RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control system Novastar(sending card,receiving cards and Hubs)
Average of non-failure life >50,00h
Life span >100,000h
Functionaless dot rate

<0.0001

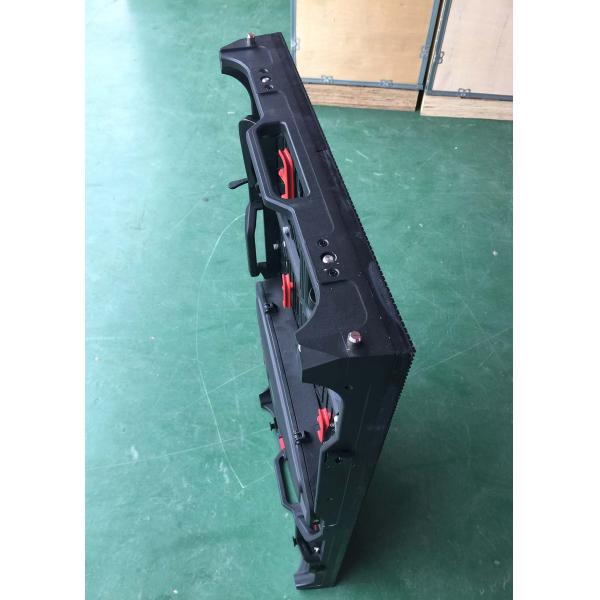

Detail Product Pictures:

Outdoor 4.8mm Concert Led Screens Rendering Full Color 500mm * 1000mm Cabinet

Outdoor 4.8mm Concert Led Screens Rendering Full Color 500mm * 1000mm Cabinet

FAQ:

Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1: Indoor&Outdoor P2.5mm/P2.9mm/P3mm/P3.75mm/4mm/5mm/P6mm/P4.8mm/P5.33/P6mm)

Q2: Where is it used for?
A2: Indoor & Outdoor rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.

Q3: Can it play HD video?
A3: Yes, it can realize HD video function with Novastar And Linsn controlling system.

Q4: What's the controlling system?
A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.

Q5: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.

Contact Us Now!

tel/whastapp:+86 18613973743

Email:celia@eachinled.com
