SMD2727 Street Outdoor Advertising LED Display Screen P6 P5 160x160mm Module
SMD2727 Street Outdoor Advertising LED Display Screen P6 P5 160x160mm Module
SMD2727 Street Outdoor Advertising LED Display Screen P6 P5 160x160mm Module
SMD2727 Street Outdoor Advertising LED Display Screen P6 P5 160x160mm Module
Specifications
Brand Name :
Eachinled Optoelectronics
Model Number :
P5 / P6
Certification :
CE ROHS
Place of Origin :
Shenzhen China
MOQ :
6 square meter
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000 square meter per month
Delivery Time :
15 Days
Packaging Details :
Wooden Case or Flight Case / Road Case
Screen Dimension :
customized
Module size :
160x160mm
LED type :
SMD2727
Grey Level :
8 bits
Cabinets size :
960mmX960mm
Brightniess :
6000nits
View distance :
5 meter
Driving IC: :
MBI5124
Description

SMD2727 Street Outdoor Advertising LED Display Screen P6 P5 160x160mm Module

1. SMD leds with high brightness for outdoor;
2. Cabinets Seamless splice;
3. Energy-saving to reduce cost;
4. Environment friendly;
5. Brightness self-regulation to avoid the light pollution;
6. Easy operation control system;
7. 2 years warranty at least;
8. Competitive price,especial for outdoor P6 and P5

Led Signs ,outdoor led display,outdoor LED screen,outdoor LED display screen,outdoor LED panel,outdoor full color LED billboards, LED Boards,LED video display,LED TV display ,Sports stadium LED display screen,Mobile truck LED display screen.

A different country will have a different says.

And a outdoor led display have a different application.

LED Advertising displays can help your company distribute commodity information to large groups of people very quickly.

Technical Specification:

Pitch/mm

P5

P6

P8

P10

Module size/mm

160x160

192x96

256x128

160x160

Density of pixel/(dots/m2)

40,000

27,777

15,625

10,000

Pixel composition

SMD 3 in 1

SMD 3 in 1

1R1G1B

1R1G1B

Led encapsulation

SMD2727

SMD3535

SMD3535

DIP346/SMD3535

Optimum viewing distance

5-16m

6-20m

≥6

≥10

View angle / °

140 H,120 V

140 H,120 V

140H,120V

110 H,60 V

Average power consumption/W/M2

1,000

900

500

450

Size of cabinet/mm

960X960

960X960

1024X768

960X960

Driving method

1/8 scan constant current

1/8 scan constant current

1/4 scan constant current

1/4 scan constant current

Refresh rate Hz/S

≥1200

≥1200

≥1200

≥1200

Luminance of white balance

≥7000 nits

≥6500 nits

≥6000 nits

≥7000 nits

Operation of Environmental Temperature/℃

below 30 to above 50

IP rating

Front,IP65;Rear,IP43

Working voltage

110-220 VAC/+/- 10%

Grey scale/color

displaying colors≥16.7M(synchronized)

Brightness adjustment

4096 levels of each color(manually),100 levels of each color(automatically)

Input signal

RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc

Control system

Linsn / Nova(sending card,receiving cards and Hubs)

Average of non-failure life

>50,00h

Life span

>100,000h

Application

 outdoor advertising led screen

Project Application.

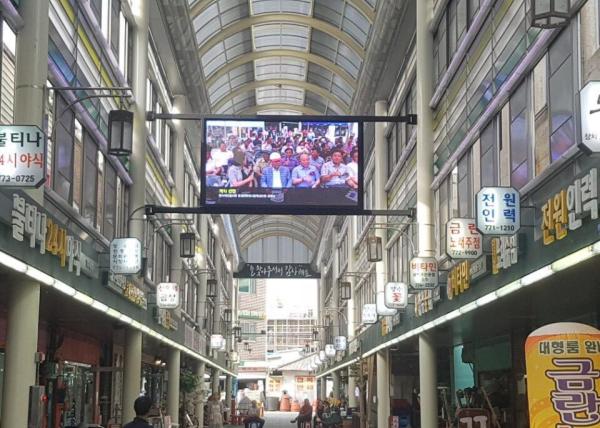

outdoor advertisong led video screen can be placed anywhere, such as: building surface, roof, highway, roadside, commercial center,shop , street, etc;

and can be fixed installed on a truck and trailer too.

SMD2727 Street Outdoor Advertising LED Display Screen P6 P5 160x160mm Module

FAQ

Q1: What's the pixel pitch for Indoor LED Display Screen ?
A1:Outdoor 5mm / 6MM / 8MM / 10MM
Q2: Where is it used for?
A2: Outdoor advertising use.

in subway, airport, train / bus / gas station, park ,stadium ,exhibition hall and commercial building etc.

Q3: Can it play HD video?

A3: Yes, it can realize HD video function with Novastar Or Linsn controlling system.
Q4: How about the size of project?
A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size.

Eachinled,

more than 10 years experience and market leaders in the field of LED display signs

Outdoor use led display cabinet achieve low heat, low noise and low radiation: Through the good structure design, ensure Low decibel value and stable performance when it works in the normal temperature.

High voltage thermal pull out plug in application: It will not strike fire during pull out the plug process, and fully accomplish the phenomenon such as waterproof, anti-interference, corrosion resistance, etc.

Ensures that the screen can work in high efficiency, stability, security situation.
