Specifications
Brand Name :
Eachinled
Model Number :
P4.81 Outdoor LED Display
Certification :
CE FCC RoHS
Place of Origin :
China
MOQ :
3Sqm
Price :
Negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000Sqm per Month
Delivery Time :
10 to 15 days
Packaging Details :
Flight case/Plywood case, 6pcs/8pcs cabinets in 1 case
Display function :
video picture graphic text message
Usage :
Outdoor
Pixels :
4.81mm
Screen dimension :
Customized Size
Tube chip color :
Full Color
Brightness :
5500cd/m2
Warranty :
2 Years
Product name :
P4.81 outdoor LED screen rental
Application :
Live Events Led Display,outdoor Advertising LED Display
Refresh rate :
1920 - 3840Hz
Description

High Brightness, Full Colour Outdoor PH4.81mm LED Screen for Large Format Video Displays

Production Description

Outdoor led display, with its highlight, waterproof, dustproof, anti-impact, high-definition display, widely used in various outdoor advertising environments, exhibitions, outdoor events, such as music festivals, concerts, outdoor bars, etc.

The ultra-light cabinet is made of aluminum alloy to give it extra strength. The lightweight LED display cabinets are perfectly designed to make installation simple. In addition, the fast lock feature does not require technical skills to install and uninstall.

The display has four high-tech and peer-to-peer corrections. High refresh rate, high gray level, high definition and high contrast give excellent image output under various conditions.

Multi-function confirmation, intelligent position and splicing adjustable, seamlessly splicing the entire LED display. Quick installation and removal are available. Flatness <0.1mm.

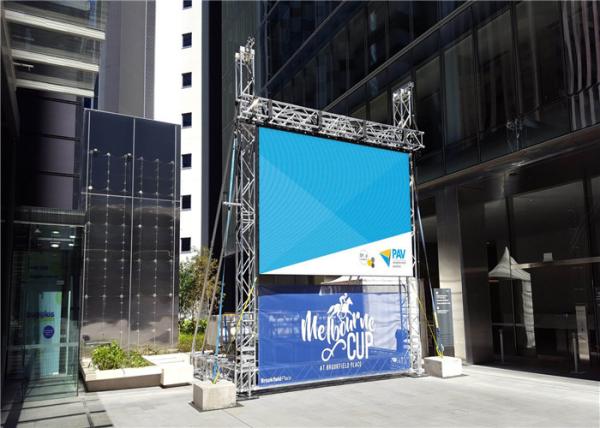

The high brightness and high definition capabilities of the outdoor LED video wall ensure high-quality pictures/videos – making it perfect for stage, hotels, promotions, stations, stadiums and other outdoor venues.

The cabinet of LED Screen features a uniquely rugged design which makes it easy to carry and install. The lightweight cabinet is easy to carry and saves transportation costs. It’s damage free and lasts for a lifetime. This Outdoor Rental LED Display Screen cabinet Suite for size 250*250 LED Display Module.

Technical Parameters

Module Cabinet
Dimensions 250 mm x 250 mm Dimensions 500 x 500 mm/500 x 100mm
Resolution 52 x 52 Weight 8 kg / 13kg
Pixel pitch 4.81 mm Module quantity 4 pcs
Density 43 264 px/m² Total pixels 10816(104 x 104) / 21632(104 x 208)
Pixel configuration 1R1G1B Maximum consumption 800 W/m²
LED type NationStar SMD1921 Material Die-casting Aluminum
Main parameters
Brightness 5500 cd/m² (Nit)
Minimum viewing distance 5 m
Viewing angle 140°
Blind spot rate < 0,0001
Lifetime at 50% brightness 100.000 h
Input voltage/Frequency 110-220 V / 50-60 Hz
Operation temperature -20°C / +50°C ± 10 %
Refresh rate >2400 Hz
Greyscale 16-bit
Brightness control 256 levels
Ingress protection IP 65
Input Composite, S-Video, VGA, DVI, YPbPr, HDMI, SDI

Applications

Full Color Outdoor Led Display Screen PH4.81mm For Large Format Video DisplaysFull Color Outdoor Led Display Screen PH4.81mm For Large Format Video DisplaysFull Color Outdoor Led Display Screen PH4.81mm For Large Format Video Displays

Our Services

1. 2 years warranty, free parts to replacements. Technical suggestions.
2. Over 48 hours aging test, Inspection all details before shipment.
3. Customized designs and OEM solutions are welcome.
4. Reply to your inquiries within 24 hours


For more details, please contact:
celia
Mobile/WhatsApp: +86 18613973743
Web: www.largeledscreens.com / www.eachinled.com
