Lightweight 3.9mm LED Screens With Nationstar LED Video Panels 250mm*250mm
P3.9mm Led Screens Specifications
Parameters | Indoor& Outdoor |
Pixel Pitch(mm) | 3.9 |
LED type | SMD 2121/1921 |
Pixel per Module(Pixels/㎡) | 65,536 |
Module Size(mm) | 250*250 |
Brightness(cd/㎡) | 1000/5500 |
Viewing Angle(H/V) | H:140/V:100 |
Cabinet size(mm*mm) | 500*500*65 |
Cabinet Weight(kg) | ≈8kg |
Display Refresh Rate(Hz) | ≥3840 |
Input Power Frequency(Hz) | 50/60 |
Input Voltage(Nomina)(V) | AC110,220,110-240 |
Input Power(Max)(W/㎡) | ≈600 |
Input Power(Aveerage)(W/㎡) | ≈300 |
Lifepan(H) | ≥50,000 |
P3.91mm Led Screen Details

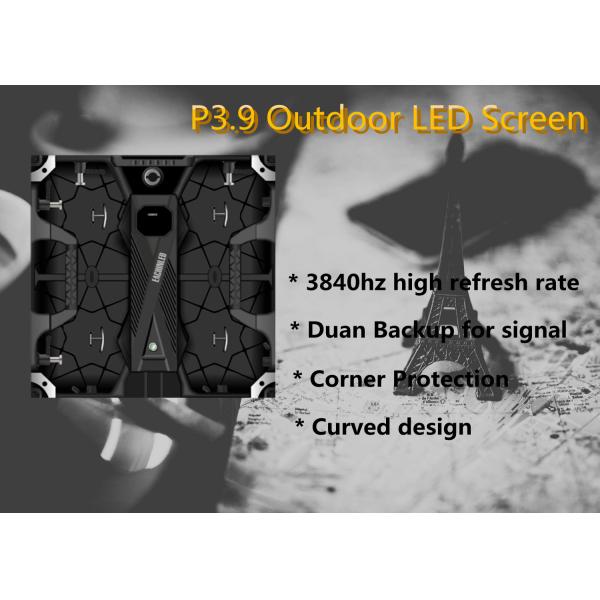

* Higher precision fast lock, make the LED panel connection faster, just need one minute
* Support front service, convenient for future maintaincance.
* Curved design, -10° to 15°, make your events more attractive.
* 13K gold plug-in instead flat wire connection, solve the most common signal problem from the source.
* Duan back-up for signal cable.
* Corner Protection design prevent the LED lamp from damage during move.
Can print your logo, company name, number on the back panel as the picture shows, it is free.
Application:
3.9mm LED screen is widely used for church,concert, stage, conference, exhibition, fashion show etc.
Popular size for church are 4x3m, 5x3m, 6x3m,6x4m. in general, our customer prefer to hanging installation.
The LED Video Screen is made up of a series of modular ‘modules’ which can be assembled into different sizes. Each modules relies on thousands of tiny electronic dots that light up dynamically. Seen at a distance, these points of light resolve into a stunning image!
How about the size of project?
A: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.
