Specifications
Brand Name :
Eachinled
Model Number :
P3mm
Certification :
Rohs UL
Place of Origin :
Shenzhen China
MOQ :
6 square meters
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000 Square meters Per Month
Delivery Time :
15 Days
Packaging Details :
Wooden Case and Flight Case/Road Case
Refresh rate :
1989hz
Display Function :
Video,Photo,Message
Weight of Cabinet :
4.8 Kg
Cabinet Size :
500x500mmx45mm
Thickness :
40mm
IC :
5124MB
Power Supply :
AC110-220V/50hz
Cabinet Material :
Carbon Fiber
Brightness :
800-1100 nit per sqm
Operating Life: :
>110000hours
Application :
Live Events Led Display,concert
Description

Concert Rental Led Display P3.91High Quality Full Color Indoor 500x1000mm

Features:

1) Hot Sale 500*1000mm Die-cast aluminum Rental Cabinet. Slim and light weight.
2) Strong Fast Lock, More accurate and easy to handle, make it minimum gaps between cabinet.
3) Light weight, only 6.4KG for 500x1000mm cabinet.
4) ±15° angle adjustable between cabinet, enable to make into inner arc or outter arc shape even rount shape use 12 cabinet.
5) Fast lock design, good rental hanging solution.

Different batches led cabinets can not be use together, please buy all led cabinets one time or in one day, otherwise, color and brightness will be different!
We have different types cabinets for your selection, please tell me which one you need when place order. Otherwise, we will choose one for you

Technical Specification:

Pixel Pitch

3.91mm

Pixel Density

65536dots/sqm

Color Configuration

1R1G1B

LED Package

SMD2020

Module Size

250mm x 250mm

Module Resolution

64dots x 64dots

Drive Mode

1/16 Scan

Cabinet Material

Die casting Aluminum

Led Color

Black

Standard Cabinet Size

500mm x 1000mm

Cabinet Weight

14KG

Brightness

800-2000nits

Viewing Distance

4m-40m

Viewing Angle

H: 140°; V:140°

Refresh Rate

1920HZ, adjustable by software

Frame Rate

120frame/s

Grey Scale

16.7M colors(Synchronized)

Color Temperature

R.G.B brightness 256 level adjustable

Power Input

AC110V/ 220V ±10, 50HZ

Max Power Consumption

800W/sqm

Ave. Power Consumption

300W/sqm

Storage Temperature

-30~+70 degree

Working Temperature

-20~+50 degree

Blind Spot Rate

<1/10000

MTBF

>10,000 Hours

Life Span

>100,000 Hours

Waterproof Level

IP43

Operating Humidity

10%~90% RH

Control Method

Synchronous, Asynchronous, 3G,WIFI,USB

PC Display Resolution

1280x1024

Control PC

With DVI Graphic card

Operating System

Win 98, Win2000, XP, Win7, Win8, Win10

Video Signal Mode

RF, S-Video, RGB, RGBHV, YUV, YC etc

Certificate

CE, RoHS

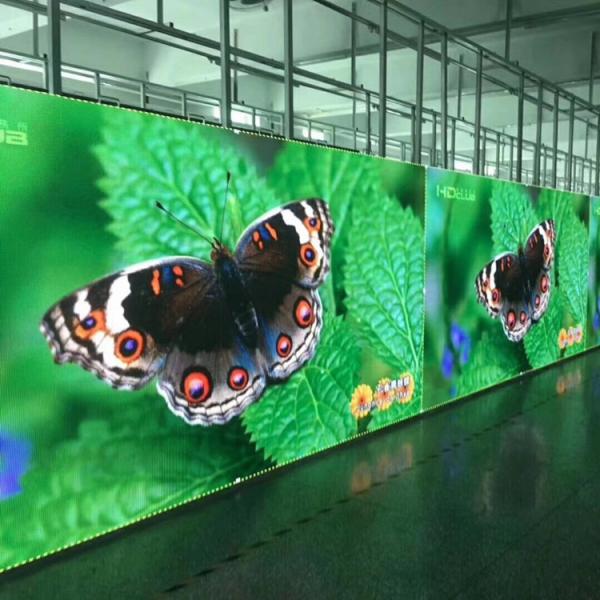

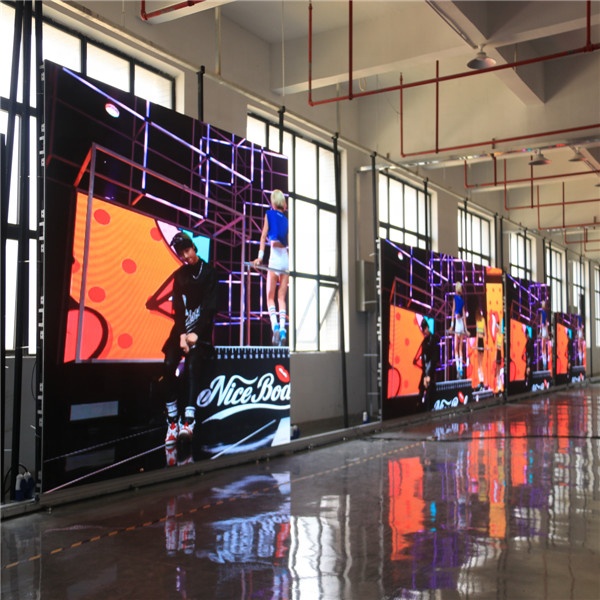

500x1000mm Indoor Rental LED Display

500x1000mm Indoor Rental LED Display

1. Cabinets are made of die-casting aluminium,can be spliced with no crack.
2. P2.5/P2.6/P2.976/P3/P3.91/P4//P4.81 is optional for you.
3. SMD 3-in-1 technology with high brightness makes the display have a ultra-wide view & vivid image.
4. Work normally without air conditioning for low power consumption.
5. Suitable for indoor stage background, event activity, meeting room, club, bar etc.
* Project advise,Make the easy project design,easy for install and service
* Free on-line support
* We will send the setting file send with the goods. And also we will keep the Project file.

FAQ

Q1: What's the pixel pitch for Indoor LED Display Screen ?

A1: Indoor&Outdoor 3.9mm/4.8MM)

Q2: Where is it used for?

A2: Indoor & Outdoor rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.

Q3: Can it play HD video?

A3: Yes, it can realize HD video function with Novastar controlling system.

Q4: What's the controlling system?

A4: Our standard controlling system for this model is Novastar. Also support other controlling system, like Linsn, etc.

Q5: How about the size of project?

A5: Please offer the size with "width by height" of project. We wil offer the suitable solution for your project size. I will appreciate it if any drawing files about installation offered.

Our Service and Mission

Eachinled has a perfect service system, including pre-sale service, in-sale service and after-sale service. To provide high quality service for our customers, we train every salesman with necessary product maintenance knowledge and organized a Technology Supporting Department with a group of excellent and professional engineers. Any problem you can contact us at any time you like.
Pre-sale service:
1. Reply enquiries in 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offer.
5. Other services, such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking report in producing.
2. Quality test report for every order.
3. Photos and videos as per customer's requirement.
4. Free spare parts.

After-sale service:
1. Lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. Customer satisfaction tracking report.
4. Free technician training.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. Special service for big project, such as stadium, exhibitions, squares and so on.
