CLW350A Short Throw DLP Projector High Contrast And Color Gamut
DLP Laser High Contrast 4K Short Throw Porjector Angle Correction CLW350A

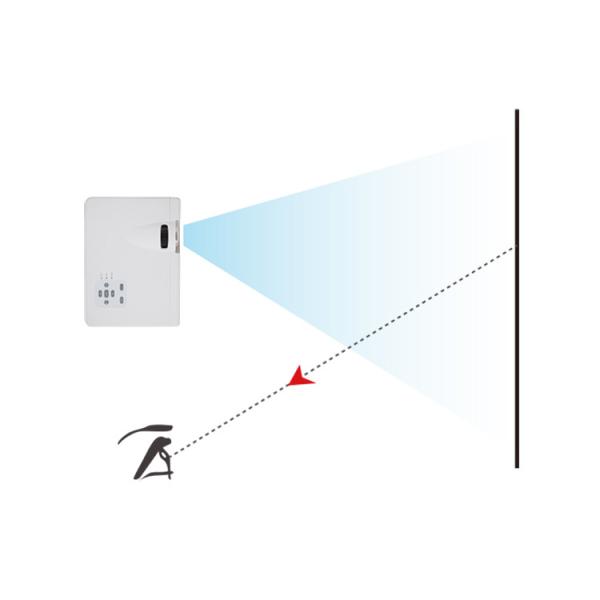

【Support Keystone Correction and Multi-angle adjustment】
No need to worry about the obliquely screen. It can adjust angle Vertically and Horizontally from -30° to +30°.
【Built-in powerful fans to promote cooling function】
Cooling function can extend equipment's life and protect projector from heat hurt. The ideal operating temperature is between 0℃ and 40℃.
【Ultra-high contrast, ultra-high color gamut】
500,000:1 ultra-high contrast ratio, richer color levels, more obvious contrast between light and dark, and more vivid and beautiful images. The laser color gamut is as high as 120%, making colors more real, 1.07 billion display colors, making the projection screen colorful and beautiful.
【Improve Cost effective strongly】
USD The life of the traditional lamp light source is about 4000 hours, while the new laser light source has a life of more than 20,000 hours. Normal use can guarantee 8 years without replacing the light source. In 8 years, the traditional projector needs to replace at least 7 bulbs, and the purchase cost has exceeded 400 USD., Using the CLW350A series will save you all this cost and truly achieve zero cost for later use.
【Fully enclosed & No filter design, high efficiency and dustproof】
The CLW350A light source and all optical components adopt a fully enclosed design. Even if it is used in a harsh environment, there is no need to worry about dust and other impurities affecting the projector, so you can rest assured and more at ease. No filter design, no need to calculate the dust removal time, no more tedious filter cleaning work, so that the projector is truly maintenance-free for life, so you can use it with peace of mind and worry more.
【Rich interfaces】
Computer in, Monitor out, HDMI, RCA, S-Video(Mini DIN 4pin), Audio in(Mini Jack), LAN(RJ45), RS232, USB(Type Mini B), DC 12V Trigger(3.5mmJ ack), IR
Projection System | DLP |
Native Resolution | 0.55" WXGA,1280x800 |
Brightness. | ≥3700 lm |
Contrast Ratio (Full on/off) | ≥20000:1 |
Aspect Ratio | Native 16:10 |
Throw Ratio | 0.52:1(80"@0.79m) |
Image Size (Diagonal) | 80" ~150" |
Zoom Ratio | fixed |
Light Source Type | LD module |
Life (Normal/Economic) | 20000Hrs ---TBD |
Keystone Adjustment | Vertical & Horizontal ± 30 degrees |
Resolution Support | VGA(640 x 480) to UXGA(1600 x 1200) |
HDTV Compatibility | _ |
Video Compatibility | NTSC, PAL, SECAM, SDTV |
Horizontal Frequency | 15K~102KHz |
Vertical Scan Rate | 23~120Hz |
Focus Range | 一 |
Color Wheel Segment | RYGB |
Color Wheel Speed | 2X |
Color Gamut | TBD (Refer to "Picture Mode") |
ANSI Uniformity (Min.) | 90% |
JBMA Uniformity (Min) | 90% |
Interfaces | |
Computer in (D-sub 15pin) | x2 |
Monitor out (D-sub 15pin) | x1 |
HDMI | x2 |
Composite Video in (RCA) | x 1 |
S-Video in (Mini DIN 4pin) | x 1 |
Audio in (Mini Jack) | x 1 |
LAN (RJ45) | x1 |
RS232 (DB-9pin) | x 1 |
USB (Type Mini B) | x 1 |
DC 12V Trigger (3.5mm Jack) | x1 |
IR | x 1 (Front, facing user) |
Supplementary Info. | |
Dimensions (WxHxD) | 383.7 x291.5x 147.7mm |
Weight | 6.23KG |
Power Supply | AC 100 to 240 V, 50/60 Hz |
Typical Power Consumption | ~ 290W |
Stand-by Power Consumption | < 0.5W |
Network work standby | N/A |
Acoustic Noise (Typ./Eco.) | 34/ 30 dBA |
Operating Temperature | 0~40℃ |
ID color | White |
Accessories | |
Carton | Yes |
Remote Control w/ Battery | x 1 |
Power Cord (by region) | x 1 |
User Manual CD | x 1 |
Quick Start Guide | x 1 |
Warranty Card (by region) | x 1 |
