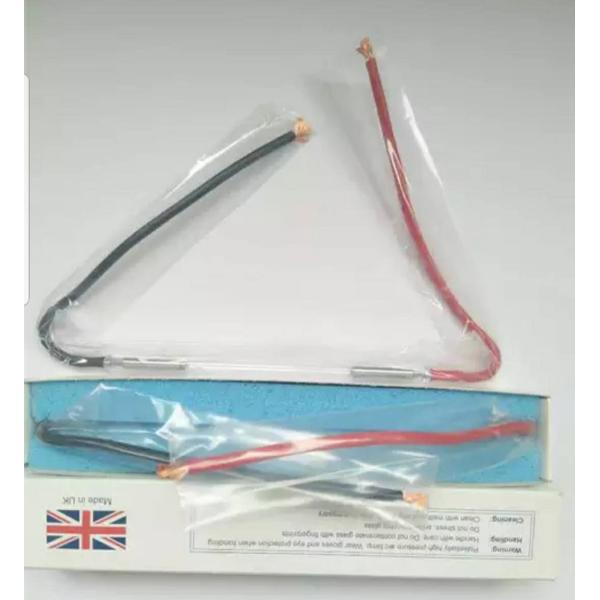

IPL SHR hair removal machine spare parts replaced Xenon lamp for laser clinic use
Ipl xenon lamp/xenon lamp , generally sealed in a quartz glass tube of the two metal electrodes to store electrical energy, after a high vacuum tube filled with xenon gas treatment, to output the pulse light pulse discharge of the gas discharge lamp.
Ipl xenon lamp/xenon lamp is widely used in laser engraving machine, laser welding machine, laser drilling machine, laser beauty machine. Best Quality IPL Xenon Lamp selection of quality UV filter quartz tube as the tube material to high quality density thorium tungsten, barium, cerium tungsten electrode tungsten or xenon lamp electrodes, with a load capacity, high efficiency pump laser beam quality, long life and other characteristics.
Lifespan
150,000-200,000 shots for Chinese lamp
300,000-500,000 shots for imported lamp
Envelope material
Cerium Doped Quartz
Gas fill
Xe (xenon)

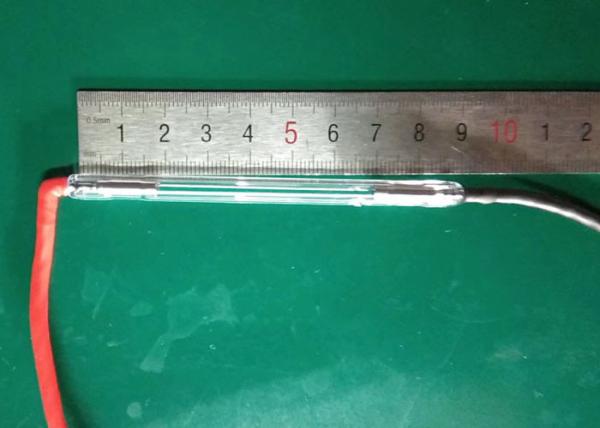

Dimension
Lamp's Outside dia.(OD) = 7 mm
Lamp's Arc length (AL) = 50 ±1 mm
Lamp's Body length(OL) = 110 ±1 mm
type | Outer Diameter/mm | Arc Length/mm | Total Length/mm |
Imported IPL Xenon lamp | 7 | 45 | 90/110 |
7 | 50 | 125 | |
7 | 60 | 120/125 | |
7 | 65 | 130 | |
9 | 60 | 120 | |
9 | 65 | 110/125 | |
Normal | 6 | 60 | 120/125 |
6 | 70 | 130/133/138/140 | |
6 | 75 | 135/148/150 | |
7 | 45 | 100/105/110 | |
7 | 50 | 110/115/120 | |
7 | 65 | 125/130 | |
9 | 70 | 145/165 | |
the above info is for reference only,and other detalis or customized please free to contact us |
Dear customers if you need the pulsed light IPL Xenon lamp for replacement, please measure your lamp size and message us your size,
we will recommend a correct one for you, thanks.
