Specifications
Brand Name :
Lingman
Model Number :
LM-1000W
Place of Origin :
Changzhou, Jiangsu, China
MOQ :
1 set
Payment Terms :
T/T, L/C
Supply Ability :
500 sets per month
Delivery Time :
10-15 work days
Packaging Details :
Wood carton
Description :
LD4
Product name :
high stiffness horizontal NC tool Turret for Lathe
Type :
LD4-CK6125 of high stiffness Turret
Repeatability accuracy(%22) :
±2 of high stiffness Turret
center height of high stiffness Turret :
57 of high stiffness Turret
Max.tangential torque(N m) :
90 of high stiffness Turret
Description

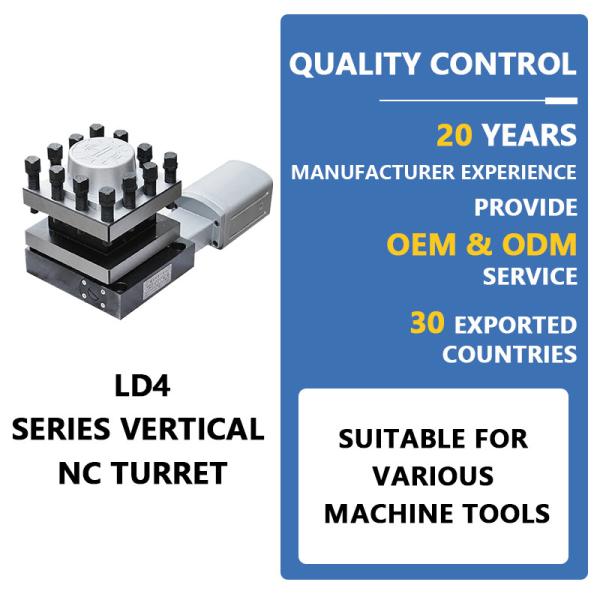

ld4 series vertical NC turre

High precision 4 position LD4-6132 vertical NC turret for CNC turret punching machine

Turret Features:

Model ld4 series vertical NC turret adopts the working principle of worm wheel and worm for driving ,face gear coupling as fine indexing mechanism,big screw for clamping,sending signal with hall unit .It features fast change tools,high repeatability accuracy,high stiffness.It is a popular product for economic NC lathe.

2. Performance Parameters

重复定位精度Repeatability accuracy(") 电机功率Motor power(W) 电机转速Motor paraphrased 换刀时间Time of changing tool and lock(s) 最大切向力矩Max.tangential torque(N·m)
90º
±2 40 1400 1 100
±2 50 1400 1.2 150
±2 90 1400 1.7 300
±2 90 1400 1.9 400
±2 120 1400 2 500
±2 120 1400 2 500
±2 120 1400 2 600
±2 120 1400 2 600
±2 180 1400 2.5 800

High precision 4 position LD4-6132 vertical NC turret for CNC turret punching machine

H2 H3 H4 L1 L2 L3 L4 A A1 B B1 C D D1 E E1 F φ φ1 φ2 h M
40 15 11 57.5 86 70 50 70 35 87 36 74 57 50 6.5 10 6.5 φ7 φ11 φ68 6.5 M6
48 19 16 58 100 80 56 80 40 110 55 94 64 52 8 13 8 φ9 φ14 φ78 9 M8
51 22 16 86 118 110 80 120 55 126 56 110 90 80 15 20 8 φ9 φ14 φ88 9 M10
57 35 16.5 110 118 136 96 136 68 148 68 126 108 108 14 14 11 φ11 φ17 φ88 11 M12
70 40 21 76 127 152 104 161 76 171 76 146 126 126 23 23 12 φ13 φ19 φ88 13 M16
77 33 21 76 127 152 104 161 76 171 76 146 126 126 23 23 12 φ13 φ19 φ88 13 M16
81 40 23 76 127 162 112 192 81 192 105 168 152 152 20 20 12 φ13 φ19 φ88 13 M16
121 40 47 76 127 162 112 192 81 192 105 168 152 152 20 20 12 φ13 φ19 φ88 13 M16
112 51 40 110 132 200 124 200 100 200 100 177 150 130 25 35 11.5 φ13 φ19 φ98 13 M16
120 51 40 110 132 200 124 200 100 200 100 177 150 130 25 35 11.5 φ13 φ19 φ98 13 M16

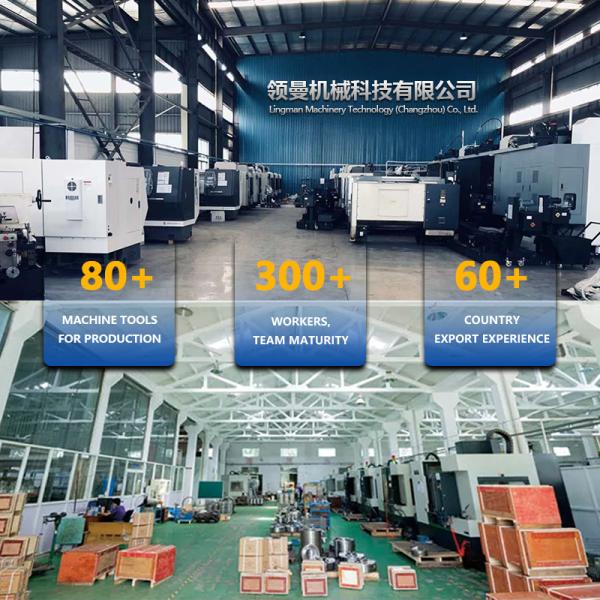

5. Production Line

High precision 4 position LD4-6132 vertical NC turret for CNC turret punching machine

High precision 4 position LD4-6132 vertical NC turret for CNC turret punching machine

High precision 4 position LD4-6132 vertical NC turret for CNC turret punching machine

6. Our Service

1.We are the direct factory with good price and fast lead time.
2.Professional design team work with you.

3.Professional QC team to guarantee the high quality.

4.Providing OEM & ODM service.

7. FAQ

Q: What parameters should we offer us for proper quotation?

A: Application, dimension, quantity, packing requirements.


Q:What's your advantages?

A:Honest business with competitive price and professional service on export process.

Q: Can we visit your company to inspect products before delivery?

A: You are welcome to visit our company to inspect us and our products.

Q:What's your lead time?
A: Within 15-35 days after confirming the order.

Q: What are your payment terms?

A: T/T, L/C, West Union, Paypal, etc.
