High Efficiency 4 Jaw Square Hole Simple Pneumatic Double Acting Chuck
High Efficiency 4 Jaw Square Hole Simple Pneumatic Double Acting Chuck
High Efficiency 4 Jaw Square Hole Simple Pneumatic Double Acting Chuck
High Efficiency 4 Jaw Square Hole Simple Pneumatic Double Acting Chuck
Specifications
Brand Name :
Lingman
Model Number :
G400F-170
Place of Origin :
Changzhou, Jiangsu, China
MOQ :
1 set
Price :
USD 3000-4000/set
Payment Terms :
T/T, L/C
Supply Ability :
500 sets per month
Delivery Time :
15-20 work days
Packaging Details :
Wood carton
Product Name :
Laser Chuck
Model :
G400F-170
Material :
Steel, Stainless steel
Claw Stroke :
154Mm
Maximum Clamping Force :
1.2KN
Allowable Pressure :
0.25-0.9Mpa
Limit speed :
200R/Min
Clamping Range :
16-170Mm
Central Height :
260Mm
Rotational Inertia :
1.72Kg.㎡
Rotating Part Weight :
89Kg
Whole Weight :
144Kg
Description
4 Jaw Automatic Power Pneumatic Chuck For Laser Tube Cutting

1. Descripition

Pneumatic chuck is an important device for cutting pipes, which can clamp, loosen and feed pipes accurately into the cutting work area. The pneumatic chuck of Lingman is specially designed for laser pipe cutting machine. Its function is not only limited to clamping round pipes, but also suitable for clamping rectangular, square, H-shaped and L-shaped pipes, which meets the processing needs of various types of pipes.

In the design of the pneumatic chuck, Lingman paid attention to several key factors to ensure the high performance and reliability of the product. First, the pneumatic chuck can work within the full stroke without additional four-jaw adjustment. This feature makes the operation easier and the processing efficiency higher. In addition, the chuck adopts a fully enclosed structure, which means that it is not only more stable, but also has excellent wear resistance and can withstand long-term high-intensity work.

In order to improve the service life and performance of the chuck, the cross-roller bearings are used inside the air chuck of Lingman. This kind of bearing can not only reduce friction, prolong the life of the chuck, but also improve its rotation accuracy and repeat positioning accuracy. This is very important for application scenarios that require high-precision cutting, ensuring the quality and accuracy of cutting results.

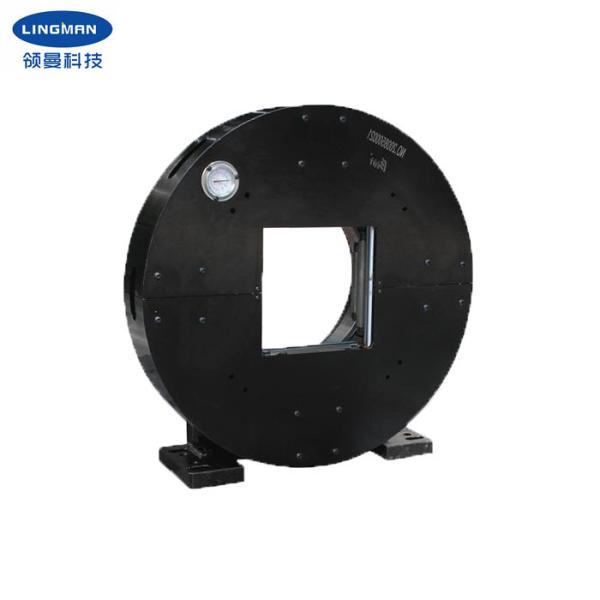

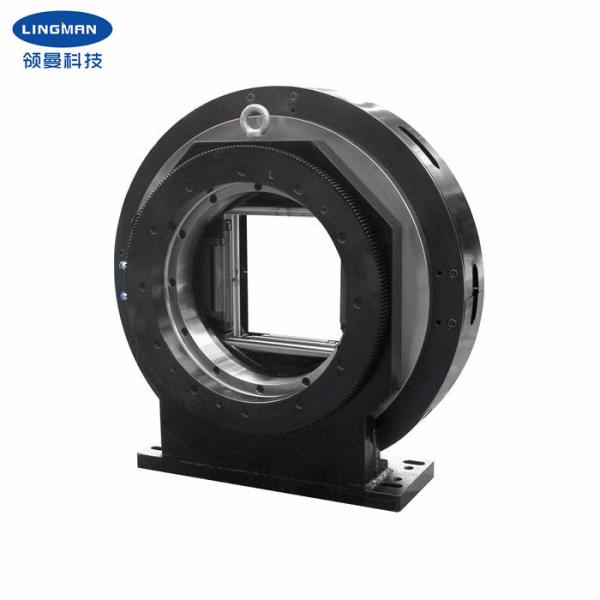

High Efficiency 4 Jaw Square Hole Simple Pneumatic Double Acting ChuckHigh Efficiency 4 Jaw Square Hole Simple Pneumatic Double Acting ChuckHigh Efficiency 4 Jaw Square Hole Simple Pneumatic Double Acting Chuck

2. Performance Parameters

  • Model number
 G400F-170
  • Jaw stroke
 154mm
  • Maximunm clamping force
 1.2KN
  • Allowable pressure
 0.25-0.9MPa
  • Limit speed
 200r/min
  • Clamping range
 16-170mm
  • Central height
 260mm
  • Rotational inertia
 1.72Kg.m2
  • Rotating part weight
 89kg
  • Whole unit weight
 144kg


​ 3. Dimensions


High Efficiency 4 Jaw Square Hole Simple Pneumatic Double Acting Chuck

Specifications A B B1 C D E F G H I R S
G400F-170 500 260 510 515 164.5 100 440 175.5 250 325 12-M8 18


4. Advantages

a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life

e. Multiple configurations are available
e. 1 Solid or hollow
e. 2 Comb-type or mortise-groove type claws



5. Production Line
High Efficiency 4 Jaw Square Hole Simple Pneumatic Double Acting Chuck

6. Our Service

1.We are the direct factory with good price and fast lead time.
2.Professional design team work with you.

3.Professional QC team to guarantee the high quality.

4.Providing OEM & ODM service.

7. FAQ

Q: What parameters should we offer us for proper quotation?

A: Application, dimension, quantity, packing requirements.


Q:What's your advantages?

A:Honest business with competitive price and professional service on export process.

Q: Can we visit your company to inspect products before delivery?

A: You are welcome to visit our company to inspect us and our products.

Q:What's your lead time?
A: Within 15-35 days after confirming the order.

Q: What are your payment terms?

A: T/T, L/C, West Union, Paypal, etc.
