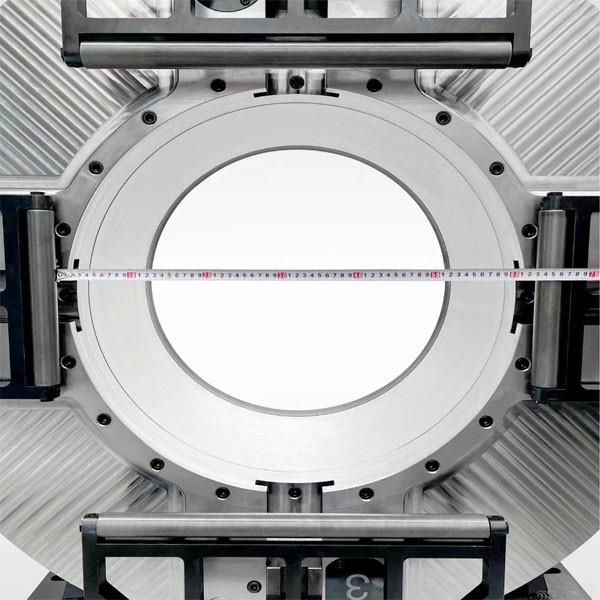

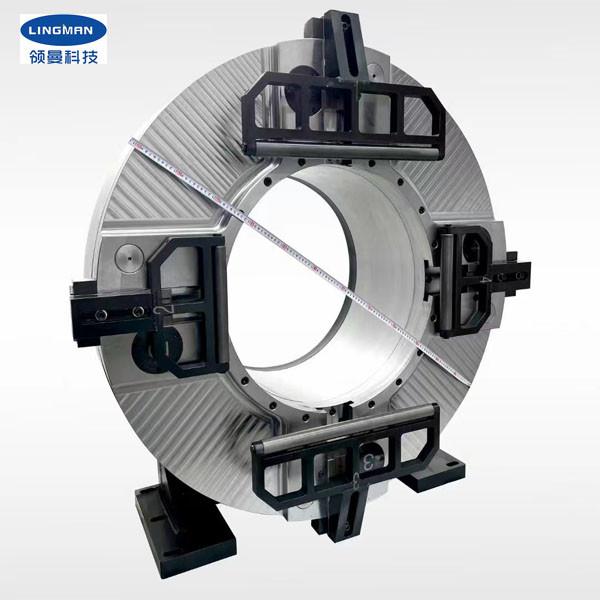

Main Chuck Pneumatic Lathe Chuck Four Jaw Big Size For Laser Pipe Cutter
Main Chuck Pneumatic Lathe Chuck Four Jaw Big Size For Laser Pipe Cutter
Main Chuck Pneumatic Lathe Chuck Four Jaw Big Size For Laser Pipe Cutter
Main Chuck Pneumatic Lathe Chuck Four Jaw Big Size For Laser Pipe Cutter
Specifications
Brand Name :
Lingman
Model Number :
G1200B-630
Place of Origin :
Changzhou, Jiangsu, China
MOQ :
1 set
Price :
USD 8500-10000 set
Payment Terms :
T/T, L/C
Supply Ability :
50 sets per month
Delivery Time :
10-15 work days
Packaging Details :
Wood carton
Claw stroke :
240mm
Maximum clamping force :
16.46KN
Allowable pressure :
0.25-1.0MPa
Limit speed :
100r/min
Clamping range :
50-610mm
Central height :
660mm
Rotational inertia :
272kg.㎡
Description
Main Chuck Pneumatic Lathe Chuck four Jaw Big Size for Laser Pipe Cutter

1. Description

Our laser chuck is specially designed for laser tube cutting equipment. It can be used as an independent rotating spindle with a chuck which can firmly clamp workpiece and rotate simultaneously.

The chuck can work in full stroke without additional adjustment of four claws,so it can clamp all applicable pipe fittings and improve production efficiency.

The product is widely used in special laser pipe cutters and other pipe processing machine systems.

Factory direct selling, welcome to inquiry.

2. Performance Parameters

Model number

G1200B-630
Claw stroke 240mm
Maximum clamping force 16.46KN
Alloable pressure 0.25-1.0MPa
Limit speed 100r/min
Clamping range 50-610mm
Central height 660mm
Rotational inertia 272kg.m2
Rotating part weight 1257kg
Whole unit weight 1373kg

Note: above numbers are standard parameters. We can also design products according to clients' special requirements.

​3. Dimensions


Main Chuck Pneumatic Lathe Chuck Four Jaw Big Size For Laser Pipe Cutter

Specifications A B B1 C D E F G H I J K O R S
G800D-360 652 425 800 825 280 / 587 405.5 360 390 430 650 8 12-M12 18X20


4. Advantages

a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life

e.Multiple configurations are available

e.1 Solid or hollow

e.2 Comb-type or mortise-groove type claws

5. Production Line

Main Chuck Pneumatic Lathe Chuck Four Jaw Big Size For Laser Pipe Cutter

6. Our Service

a.We are the direct factory with good price and fast lead time.
b.Professional design team work with you.
c.Professional QC team to guarantee the high quality.
d.Providing OEM & ODM service.

Explore International Market, Win- Win Cooperations!
