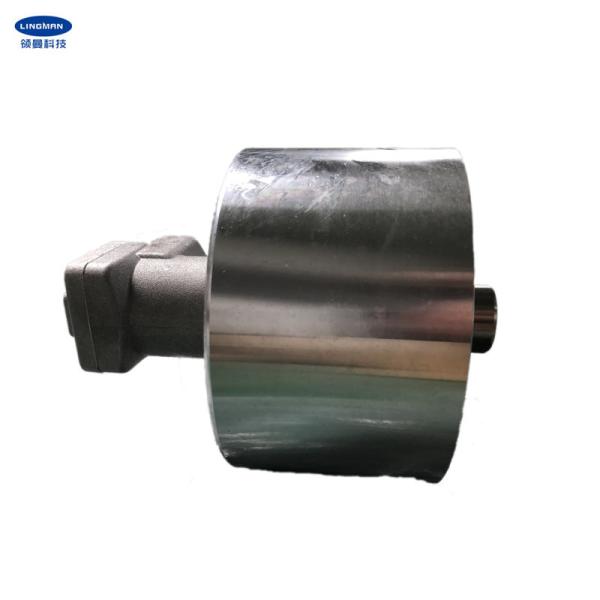

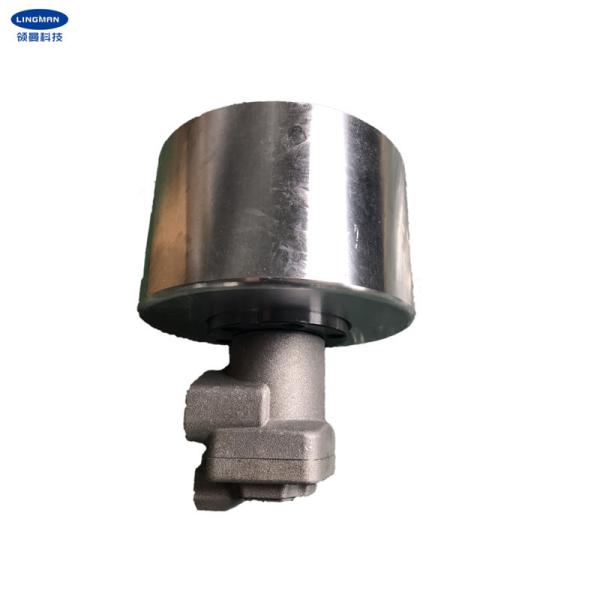

Lightweight Hydraulic Rotary Solid Cylinder for Lathe Chuck
Lightweight Hydraulic Rotary Solid Cylinder for Lathe Chuck
Lightweight Hydraulic Rotary Solid Cylinder for Lathe Chuck
Lightweight Hydraulic Rotary Solid Cylinder for Lathe Chuck
Specifications
Brand Name :
Lingman
Model Number :
RH-100
Place of Origin :
Changzhou, Jiangsu, China
MOQ :
5 sets
Price :
USD 265-780 set
Payment Terms :
T/T, L/C
Supply Ability :
200 sets per month
Delivery Time :
7-15 work days
Packaging Details :
Wood carton
Product name :
Hydraulic cylinder
Model number :
RH-100
Push side :
75.4cm2
Pull side :
70.5cm2
Stroke :
20mm
Max. numbers of revolutions :
5500 r.p.m
Max.working pressure :
3.5Mpa
Weight :
4.9KG
GD :
0.04kg.m2
Description
Low Inertia Solid Center Rotary Hydraulic Cylinder for Power Chuck and CNC Machine

1. Description

Our hydraulic cylinders are made of dense, lightweight aluminum alloy. Low inertia, light weight type, which can reduce the load of machine tool spindle. Solid rotary cylinder balance design is light and dense, high-speed operation can maintain uniform distribution of the shape. Due to the high quality of the cylinder seal and high precision and all the internal parts of the imported original, can ensure that the service life of the cylinder is long enough, thus saving money for customers. Support customer customization, can be customized according to customer needs high pressure type, long stroke type, large caliber type.

Under the condition of high speed rotation, product performance is stable and mechanical load is reduced. It is the first choice for nc machine tools and automatic lathes.


2. Performance Parameters

Model number

 RH-100

Push side

 75.4cm2

Pull side

 70.5cm2

Stroke

 20mm

Max. numbers of revolutions

 5500 r.p.m

Max.working pressure

 3.5Mpa

Weight

 4.9KG


​ 3. Dimensions


Lightweight Hydraulic Rotary Solid Cylinder for Lathe Chuck

Specifications A B C D E F G H J K L MH8 N 2-P
RH-100 100 20 135 100 80 30 25-45 89 190 M20X35 6-M10X20 / / PT3/8


Lightweight Hydraulic Rotary Solid Cylinder for Lathe Chuck
4. Advantages

a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life

e. Multiple configurations are available
e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws

5. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
s. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.


6. Production Line
Lightweight Hydraulic Rotary Solid Cylinder for Lathe Chuck
