K11 80/100/125/130/160/165 3 Jaw Self Centering Manual Chuck Lathe Chuck
K11 80/100/125/130/160/165 3 Jaw Self Centering Manual Chuck Lathe Chuck
K11 80/100/125/130/160/165 3 Jaw Self Centering Manual Chuck Lathe Chuck
K11 80/100/125/130/160/165 3 Jaw Self Centering Manual Chuck Lathe Chuck
K11 80/100/125/130/160/165 3 Jaw Self Centering Manual Chuck Lathe Chuck
K11 80/100/125/130/160/165 3 Jaw Self Centering Manual Chuck Lathe Chuck
K11 80/100/125/130/160/165 3 Jaw Self Centering Manual Chuck Lathe Chuck
K11 80/100/125/130/160/165 3 Jaw Self Centering Manual Chuck Lathe Chuck
Specifications
Brand Name :
Lingman
Model Number :
K11-80/100/125/130/160
Place of Origin :
Changzhou, Jiangsu, China
MOQ :
5 sets
Price :
USD 95-135 set
Payment Terms :
T/T, L/C
Supply Ability :
200 sets per month
Delivery Time :
7-15 work days
Packaging Details :
Wood carton
Product name :
3-jaw Self-centering Chuck
Material :
Stainless steel
Diameter :
55mm
Limit speed :
2500r/min
Max. torque :
250Nm
Weight :
25.7KG
Usage :
Clamp work-piece
Power :
Manual
Feature :
High centering accuracy
Application :
CNC Lathe machine
Description
K11 80/100/125/130/160/165 3 Jaw Self Centering Manual Chuck Lathe Chuck

1. Description

Three-jaw self-centering chucks are mostly used in metal machine tools. Self-centering clamping or clamping of external and internal surface workpieces such as round, triangular or hexagonal for various machining and clamping. The tightening force is adjustable and the centering precision is high, which can meet the precision requirements of ordinary machine tools.

The three-jaw self-centering chuck standard is an important basis for product design, manufacturing and acceptance, and also provides a reference for the host computer.

Basic structure and working principle: The three-jaw self-centering chuck adopts three screws to fix the chuck on the flange of the machine tool through the screw holes on the end face of the disc body. Insert a wrench into any square hole in the gear. When the wrench is turned, the pinion drives the coil to rotate. The rotation of the thread at the end of the coil moves the three jaws forward or apart simultaneously.


Features:
1. Short cylinder center mount.
2. K11 type chuck has one-piece jaws (including a set of inner jaws and a set of outer jaws).
3. The raw material of the chuck is steel.
4. Various soft jaws are also available.

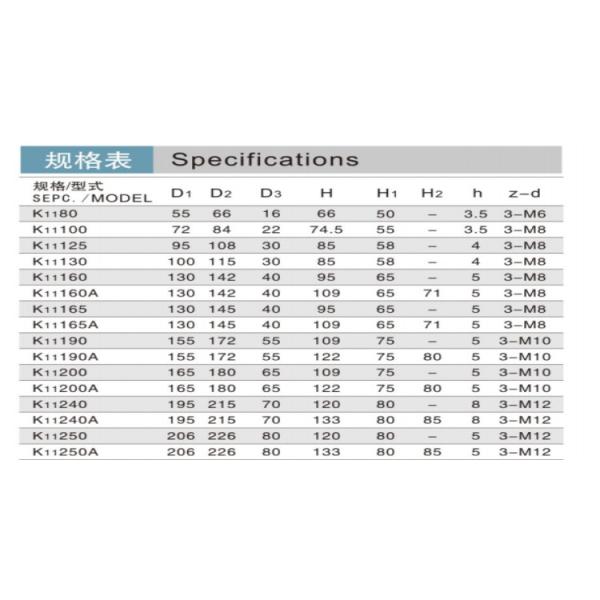

​ 2. Dimensions
K11 80/100/125/130/160/165 3 Jaw Self Centering Manual Chuck Lathe Chuck

Model Number D1 D2 D3 H H1 H2 h S z-d Max.Torque Limit Speed Weight
250 206 226 80 120 80 / 5 12 3-M12 320 2400 25.7

K11 80/100/125/130/160/165 3 Jaw Self Centering Manual Chuck Lathe Chuck
3. Advantages

a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life

e. Multiple configurations are available
e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws

4. Our Service

a. We are the direct factory with good price and fast lead time.
b. Professional design team work with you.
s. Professional QC team to guarantee the high quality.
d. Providing OEM & ODM service.


5. Production Line
K11 80/100/125/130/160/165 3 Jaw Self Centering Manual Chuck Lathe Chuck
