Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece
Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece
Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece
Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece
Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece
Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece
Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece
Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece
Specifications
Brand Name :
Liangman
Model Number :
G400S-165
Place of Origin :
Changzhou, Jiangsu, China
MOQ :
1 set
Price :
USD 2400-2600/set
Payment Terms :
T/T, L/C
Supply Ability :
30 sets per month
Delivery Time :
7-20 work days
Packaging Details :
wooden carton
Product name :
Laser chuck
Number of jaw :
Four
Claw stroke :
140mm
Clamping range :
0-160mm
Rotational inertia :
1.85g.m2
Rotating part weight :
82kg
Whole unit weight :
95kg
Feature :
High accuracy
Power :
Manual
Application :
Fiber laser cutting machine
Description

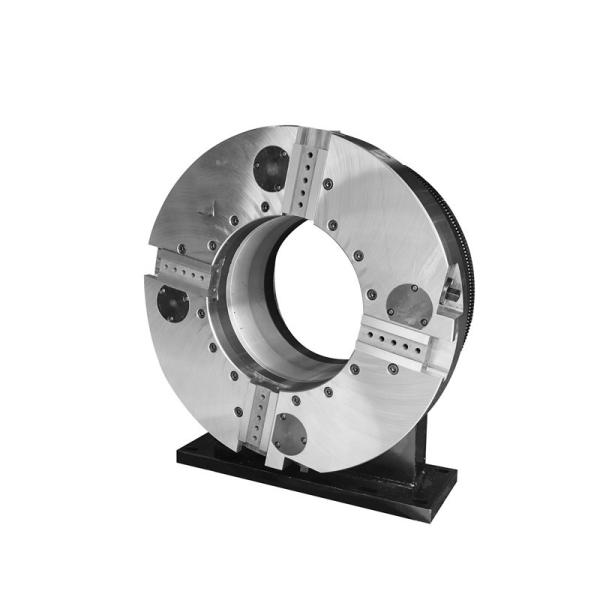

Four Jaw Chuck Hollow Structure Manual Laser Chuck for Circular Square Rectangular Work-piece

1.Descripition

This chuck is specially designed for laser pipe cutter. The product itself can be used as an independent spindle with manual chuck in the middle. After the base of the the product is fixed, the rotary function can be realized only by connecting the matched motor with the gear.

Clamping the work-piece tightly and driving the work-piece to rotate can be made by controlling two sets of jaws. Because the length of work-piece is long, it usually used as main chuck which is in the head position of laser cutting machine and installed on the equipment with matched back chuck.

Because of the long length of the parts processed by the cutter, the main chuck used as the head position of laser cutting and the back chuck matched with it are usually installed in pairs on the equipment.The chuck has four jaws and is in pairwise centering structure, which can clamp the circular, square, rectangular, elliptical and other centrally axis symmetric parts.


2.Performance Parameters

  • Model number
 G400S-165
  • Claw stroke
 140mm
  • Maximunm clamping force
 /
  • Allowable pressure

0.4-0.9MPa
  • Limit speed
 500r/min
  • Clamping range
 0-160mm
  • Central height
 260mm
  • Rotational inertia
 1.85g.m2
  • Rotating part weight
 82kg
  • Whole unit weight
 95kg

​ 3.Dimensions

Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece

Specifications A B B1 C D E F G H I J L M N O P Q R S
G400S-165 460 260 480 515 120 80 420 100 165 220 240 30 60 4 5 20 M10 8-M8 14


4.Advantages

a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life

e. Multiple configurations are available
e.1 Solid or hollow

e.2 Comb-type or mortise-groove type claws

5.Production Line

Manual Four Jaw Independent Chuck For Circular Square Rectangular Work Piece

6.Our Service

1.We are the direct factory with good price and fast lead time.
2.Professional design team work with you.

3.Professional QC team to guarantee the high quality.

4.Providing OEM & ODM service.

Product tags
